To remove

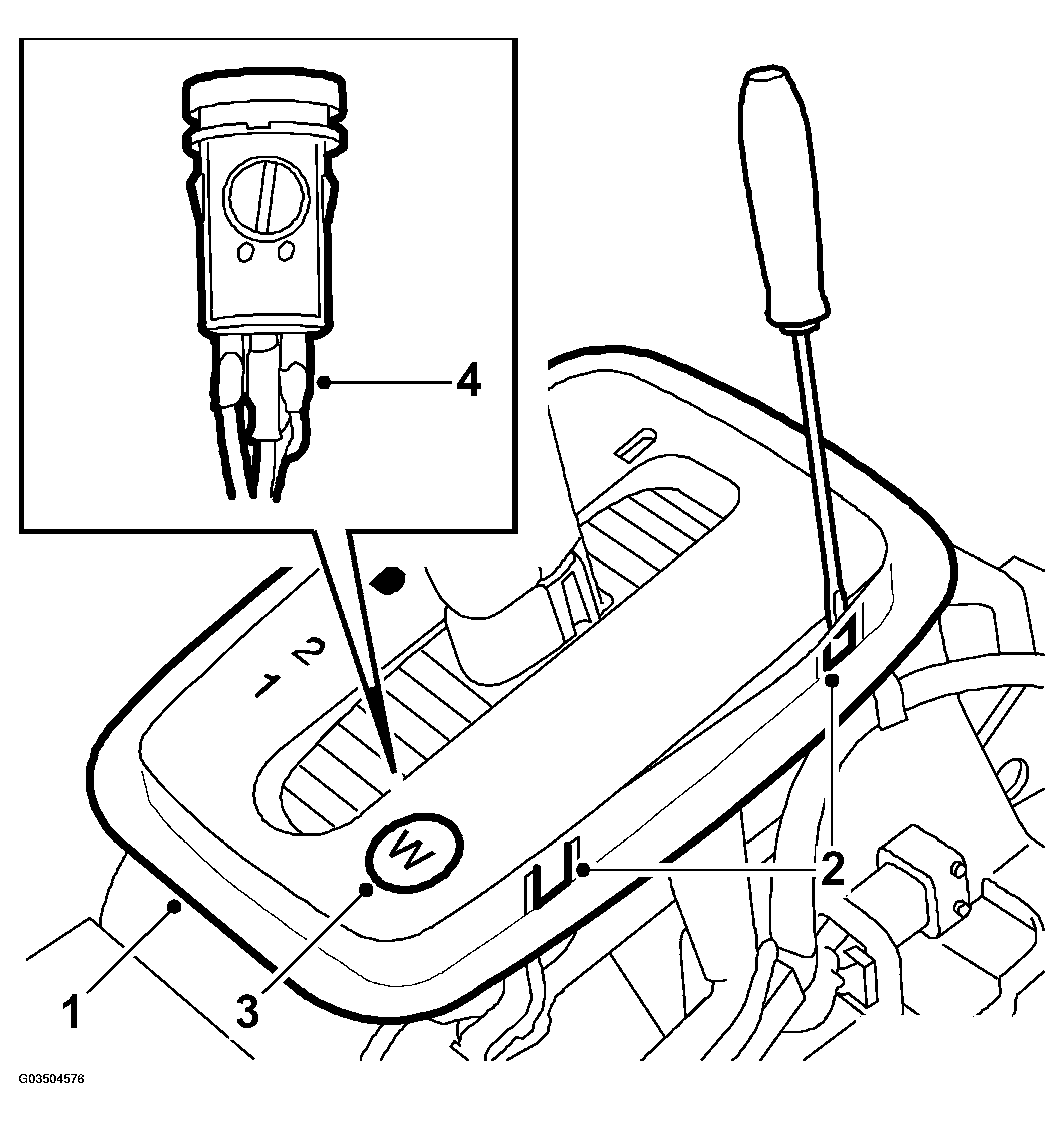

Fig 1: Illustration For Step 1-4
G03504576Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the rim around the indicator display.
  2. Carefully press in the 4 catches and lift up the indicator display.
  3. Press out the WINTER button from the indicator display.
  4. Move the protective tubing from the soldered joint on the centre wire and unsolder the wiring.
    NOTE: Protect the indicator display when soldering
