Home >> Saab >> 2001 >> 9-3 Base, 4D Hatchback, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Wiring Diagram >> Transmission control module (TCM) >> Notes

Transmission control module (TCM): Notes

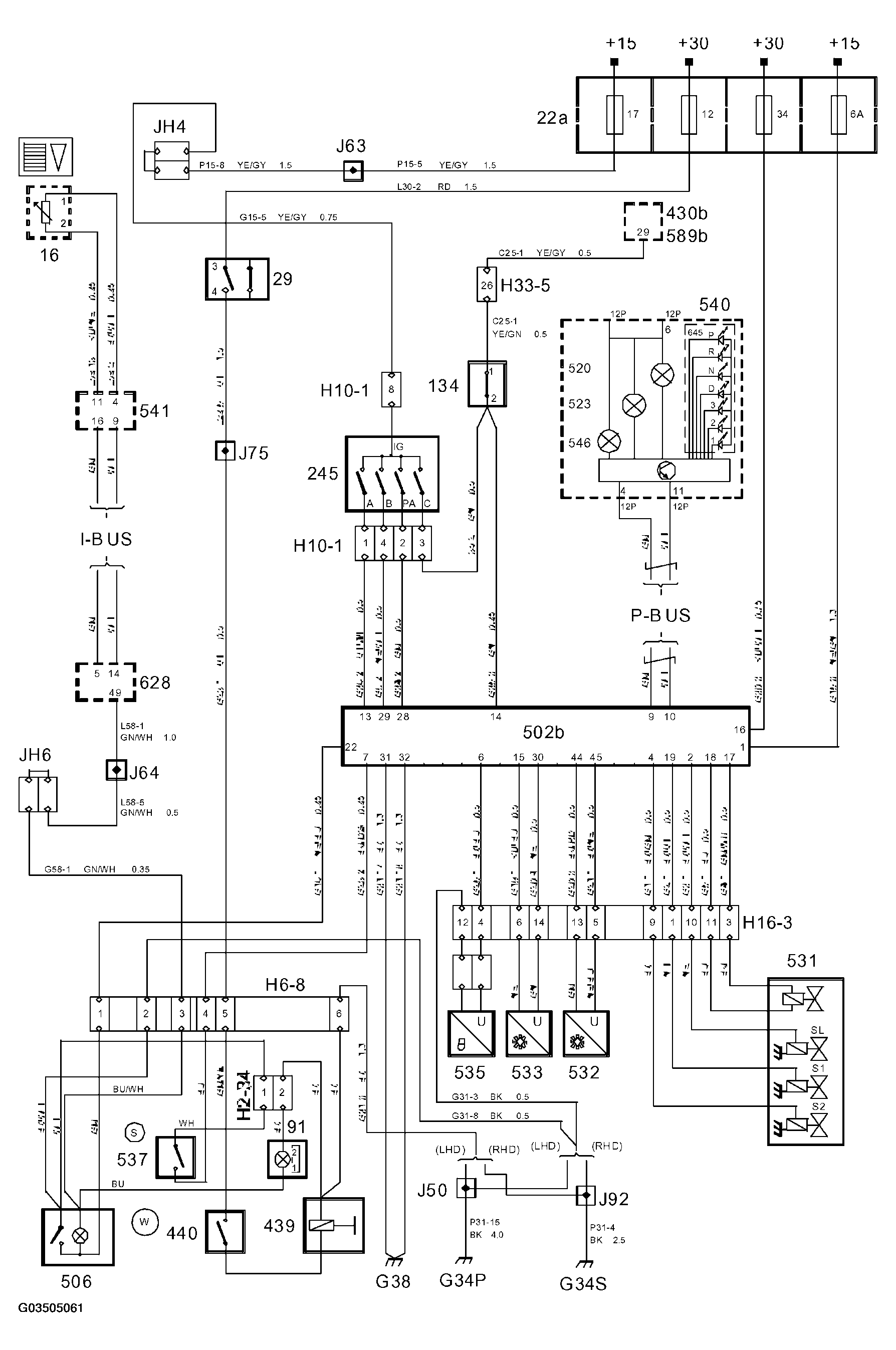

Fig 1: Transmission Control Module - Wiring Diagram (TCM)

G03505061

Courtesy of SAAB-SCANIA OF AMERICA, INC.
