Points to remember

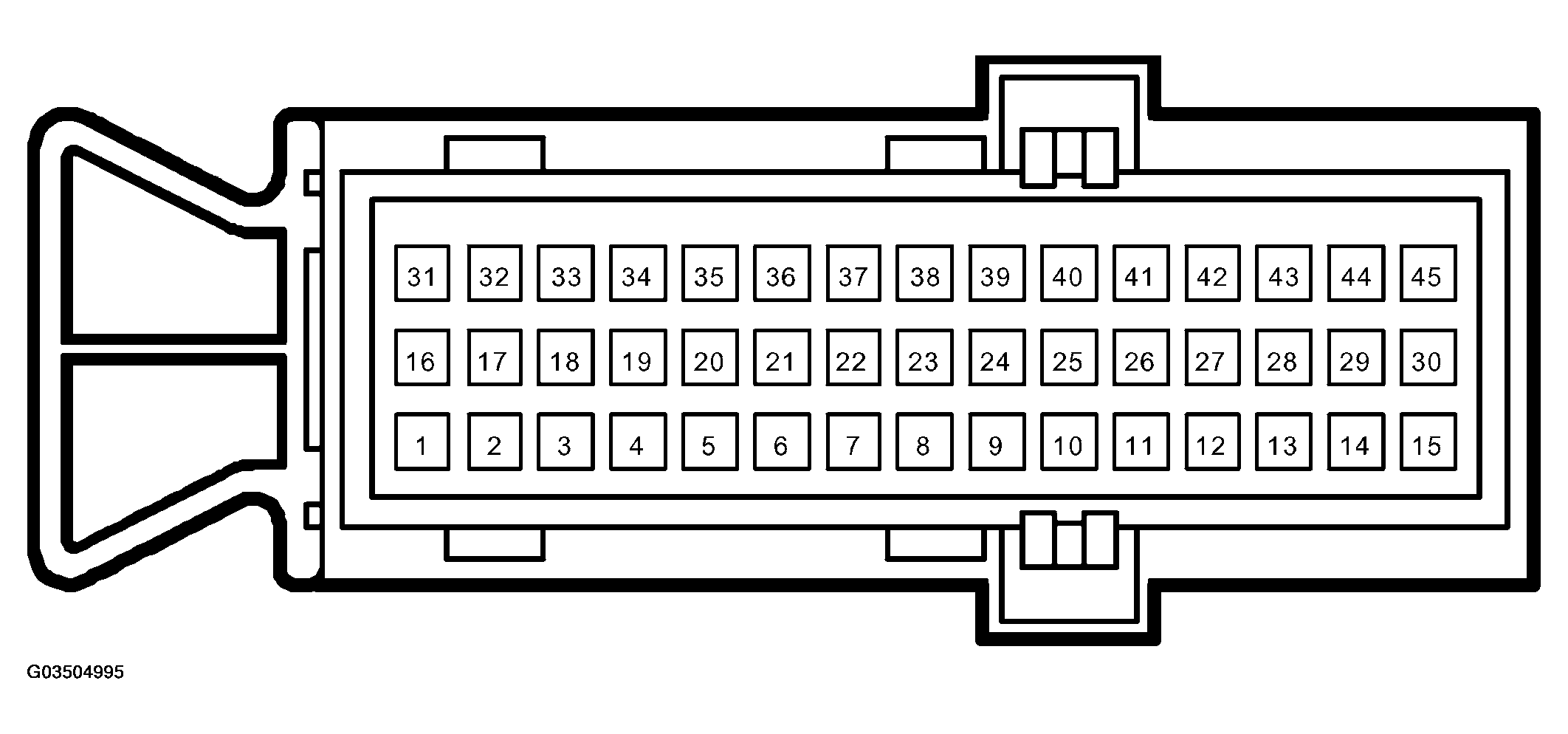

CONTROL MODULE TESTING REFERENCE

Pin Cable color Component/Function In/Out Test conditions Test between Test reading
1 YE/GY Battery voltage (+15 circuit) In Ignition ON Ignition OFF 1-B+ < 0.5 V 12 V
2 WH/BK Solenoid, Lock-up (SL) Out Activate with diagnostic tool Lock-Up solenoid 2-32 12 V or 0 V
3   No connection
4 BK/GN Solenoid 2-3 (S2) Out Gear D Winter mode ON Winter mode OFF 4-32 0 V 12 V
5   No connection
6 BK/BU NTC sensor for transmission fluid temperature In 20°C 50°C 80°C 6-32 2.3 V 1.7 V 1.0 V
7 BN/OG Switch, SPORT In Switch depressed Switch not activated 7-32 0 V 12 V
8   No connection
9 GN/RD Engine speed Connected but not used In
10 BH/WH Idling speed compensation Drive signal Out Gear lever N From N to D, 3, 2, 1 From N to R 10-32 0 V 12 V 12 V
11 BU/GY CHECK GEARBOX warning lamp Out Activate with diagnostic tool Check Gearbox ON Check Gearbox OFF or With ignition ON and lamp lit 11-1 12 V 0 V 12 V for 3 s
12 GN/WH SPORT indicator lamp Out Activate with diagnostic tool Sport lamp: Sport lamp ON Sport lamp OFF 12-1 12 V 0 V
13 VT/WH Gear selector position sensor, pin A In Selector lever P, R, 3, 2 Selector lever N, D, 1 13-32 12 V 0 V
14 GY Gear selector position sensor, pin C In Selector lever D, 3, 2, 1 Selector lever P, R, N 14-32 12 V 0 V
15 RD/BU Inductive sensor, output shaft speed In Engine ON Raise the car, engage 1st gear and run it at 20 km/h(1)) 15-30 1.1 V ~ 190 Hz
16 RD/WH Battery voltage (+30 circuit) In Ignition ON/OFF 16-B+ < 0.5 V
17 WH/GN Pressure control solenoid (ST) Current supply Out Activate with diagnostic tool Pressure control solenoid 17-18 4.3 V or 0.7 V
18 BU Pressure control solenoid (ST) Current feedback In Activate with diagnostic tool Pressure control solenoid 18-34 0.3 V or 0.1 V
19 BK/VT Solenoid 1-2/3-4 (S1) Out Gear D Winter mode ON Winter mode OFF 19-32 12 V 0 V
20   No connection
21 BU/YE Data link K In/Out Diagnostic tool connected Diagnostic tool disconnected 21-32 10 V 0 V
22 BU/YE Switch, WINTER In Switch depressed Switch not activated 22-32 0 V 12 V
23   No connection
24   No connection
27 RD/WH WINTER control lamp Out Activate with diagnostic tool Winter lamp: Winter lamp ON Winter lamp OFF 27-1 12 V 0 V
28 GN Gear selector position sensor, pin B In Selector lever R, N, D, 3 Selector lever P, 2, 1 28-32 12 V 0 V
29 WH/YE Gear selector position sensor, pin D In Selector lever P, N, 3, 1 Selector lever R, D, 2 29-32 12 V 0 V
30 YE Ground, signal ground for inductive sensor In   30 -B- < 0.1 V
31 BK Ground In   31 -B- < 0.1 V
32 BK Ground In   35 -B- < 0.1 V
33   No connection
34   No connection
35   No connection
36 VT Brake light switch In Brakes applied Brakes not applied 36-32 12 V 0 V
37 YE Kickdown switch In Accelerator pedal depressed Accelerator pedal inactive 37-32 0 V 12 V
38   No connection
        2500+/-50 RPM   2.0 V 100 Hz 15% (+) 1.5 ms (+)
        Starter motor cranking   0.25-1.0 V 100 Hz 2-8.2%(+) 0.2-0.82 ms (+)
40   No connection
41   No connection
42   No connection
43   No connection
44 YE Ground, signal ground for inductive sensor In   44-B- < 0.1 V
45 YE/BK Inductive sensor, input shaft speed In Idling speed 45-30 1.2-1.4 V ~ 160-200 Hz
        2500 RPM   2.2 V ~ 500 Hz
(1) The vehicle speed can be read using the diagnostic tool, menu "Read values" and "Output speed".
