Solenoid valve, Lock-up (SL)

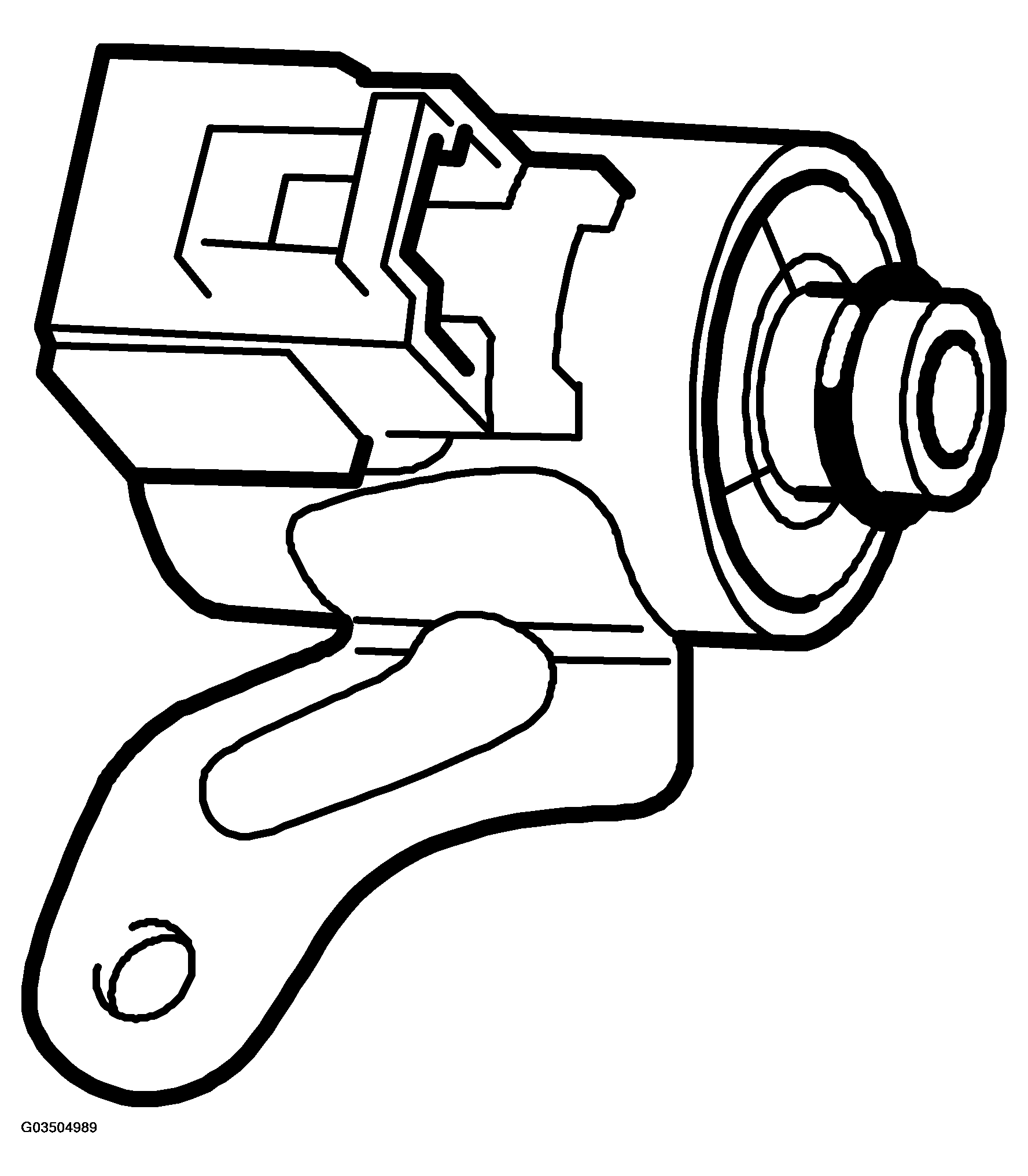

Fig 1: Identifying Lock-Up Solenoid Valve
G03504989Courtesy of SAAB-SCANIA OF AMERICA, INC.

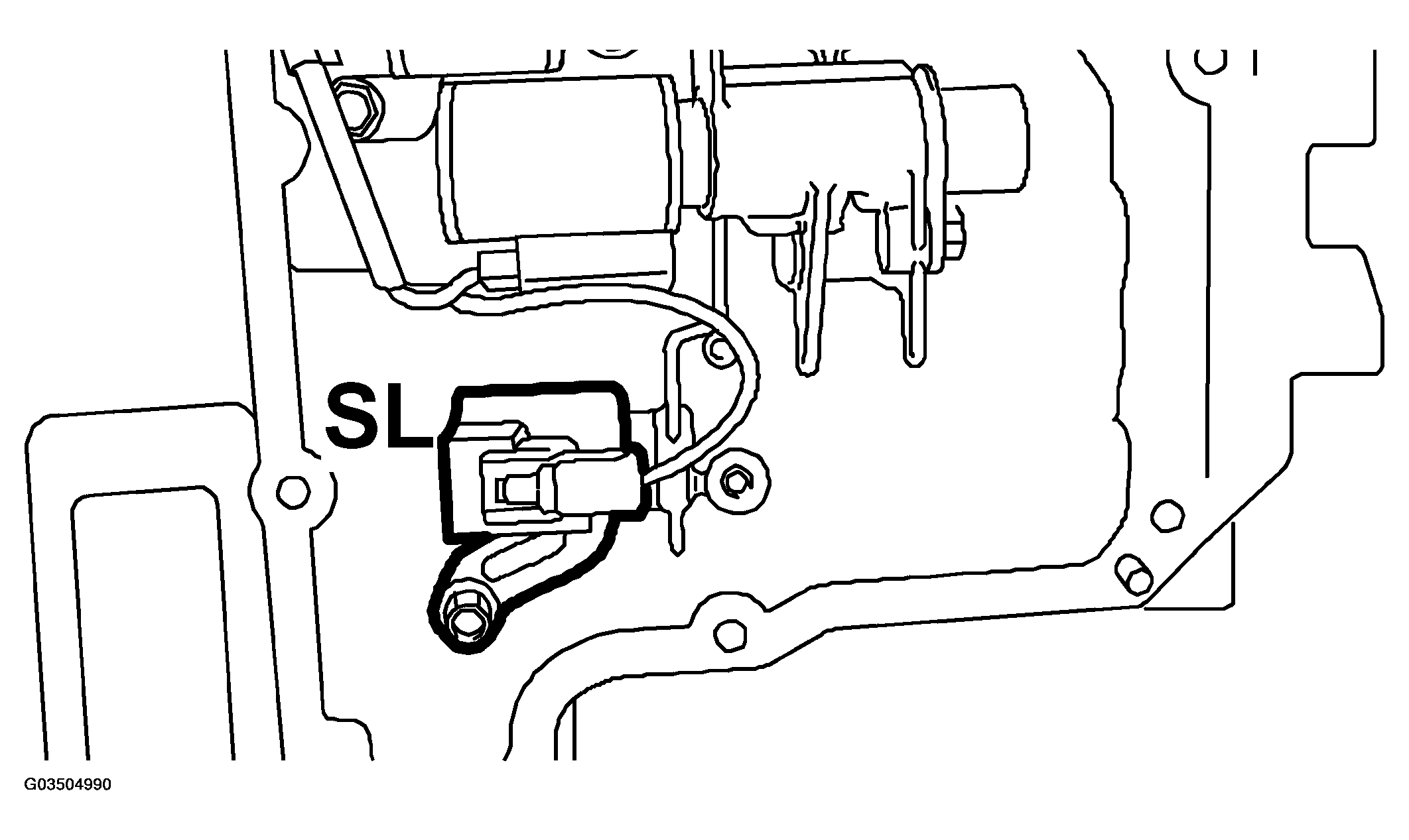

Fig 2: Identifying Lock-Up Solenoid Valve (SL)
G03504990Courtesy of SAAB-SCANIA OF AMERICA, INC.
LOCK-UP SOLENOID VALVE REFERENCE

Location   In valve housing on gearbox
Resistance at 20°C Ohm 13+/-2
