Sensor, input shaft speed

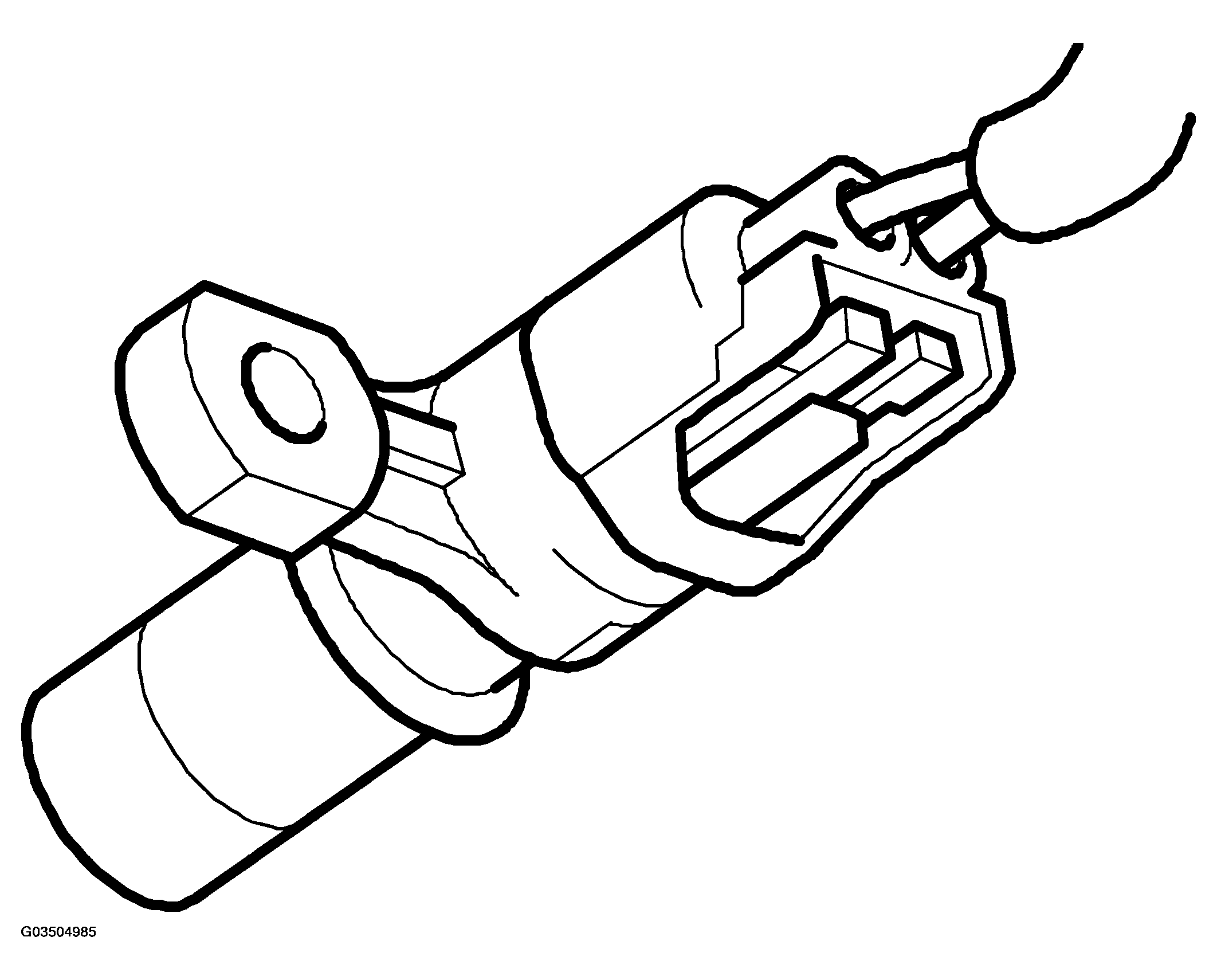

Fig 1: Identifying Input Shaft Speed Sensor
G03504985Courtesy of SAAB-SCANIA OF AMERICA, INC.
INPUT SHAFT SPEED SENSOR REFERENCE

Location   On the gearbox
Type   Inductive sensor
Resistance, shift 1-2 at 20 °C Ohm 450+/-150
Toothed wheel number of teeth 12
