Trionic T7 control module 4-cyl LEV/OBDII (589b)

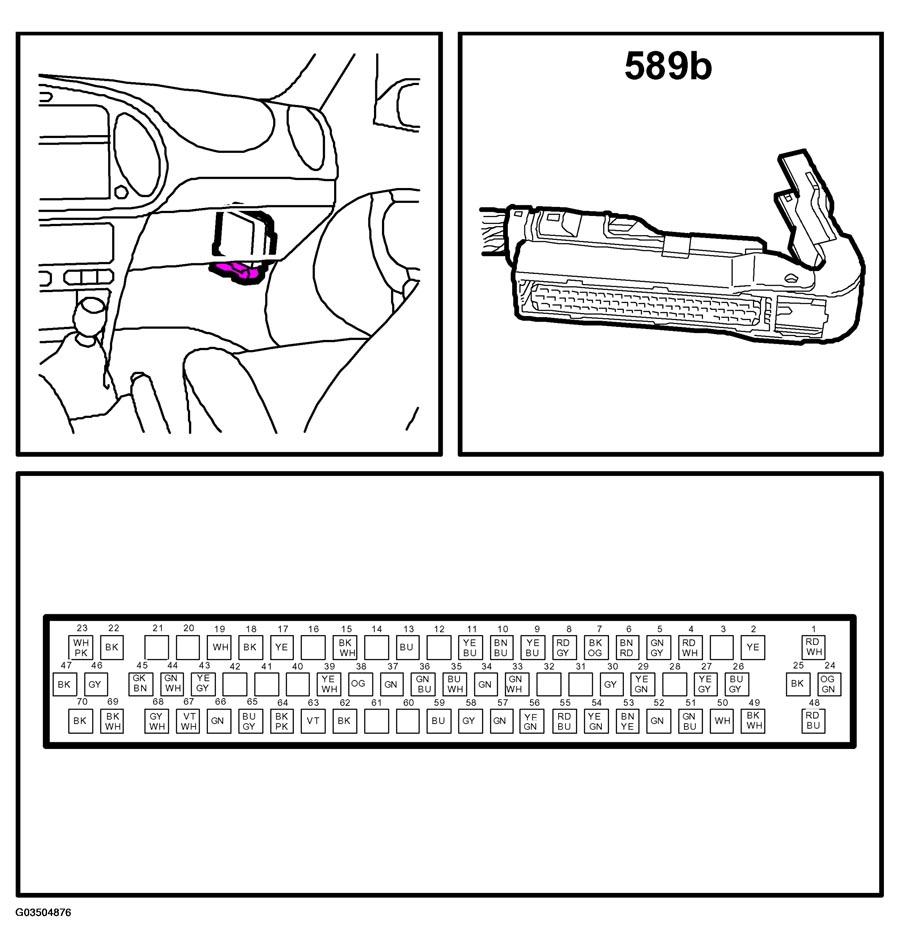

Fig 1: Identifying Trionic T7 Control Module Pinouts (4-cyl LEV/OBDII)

G03504876

Courtesy of SAAB-SCANIA OF AMERICA, INC.
