Switch, WINTER (506)

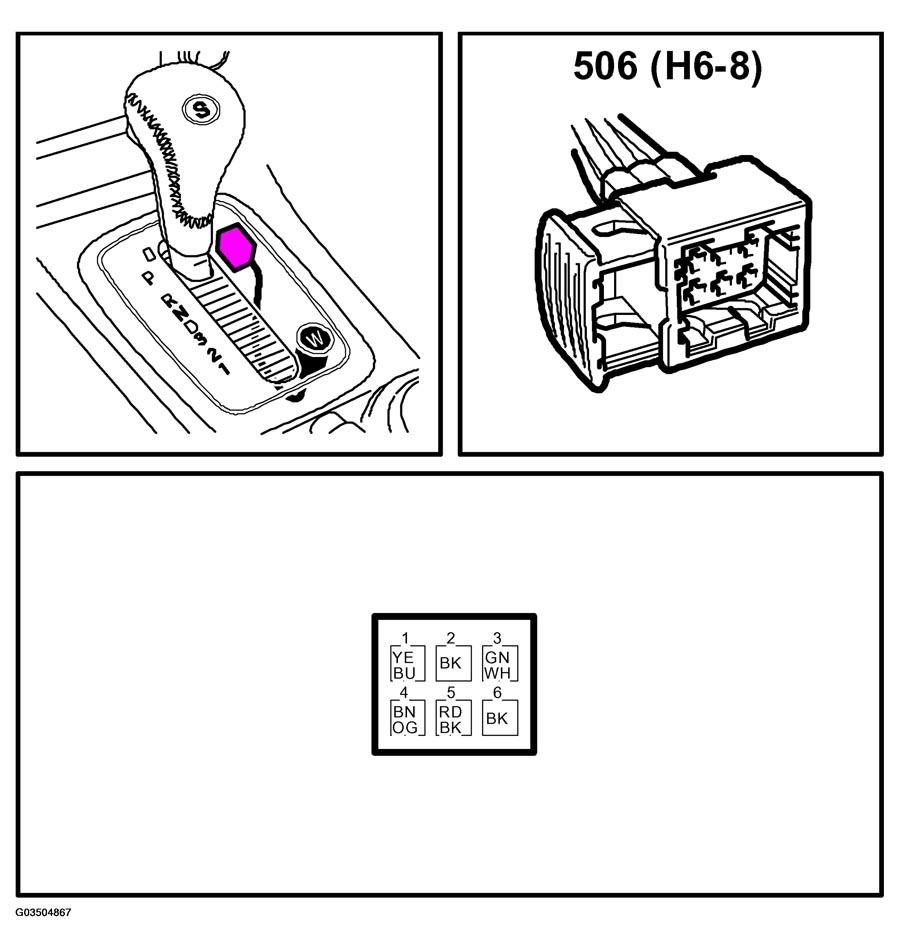

Fig 1: Identifying Winter Switch Pinouts
G03504867Courtesy of SAAB-SCANIA OF AMERICA, INC.
