Grounding point G38: Notes

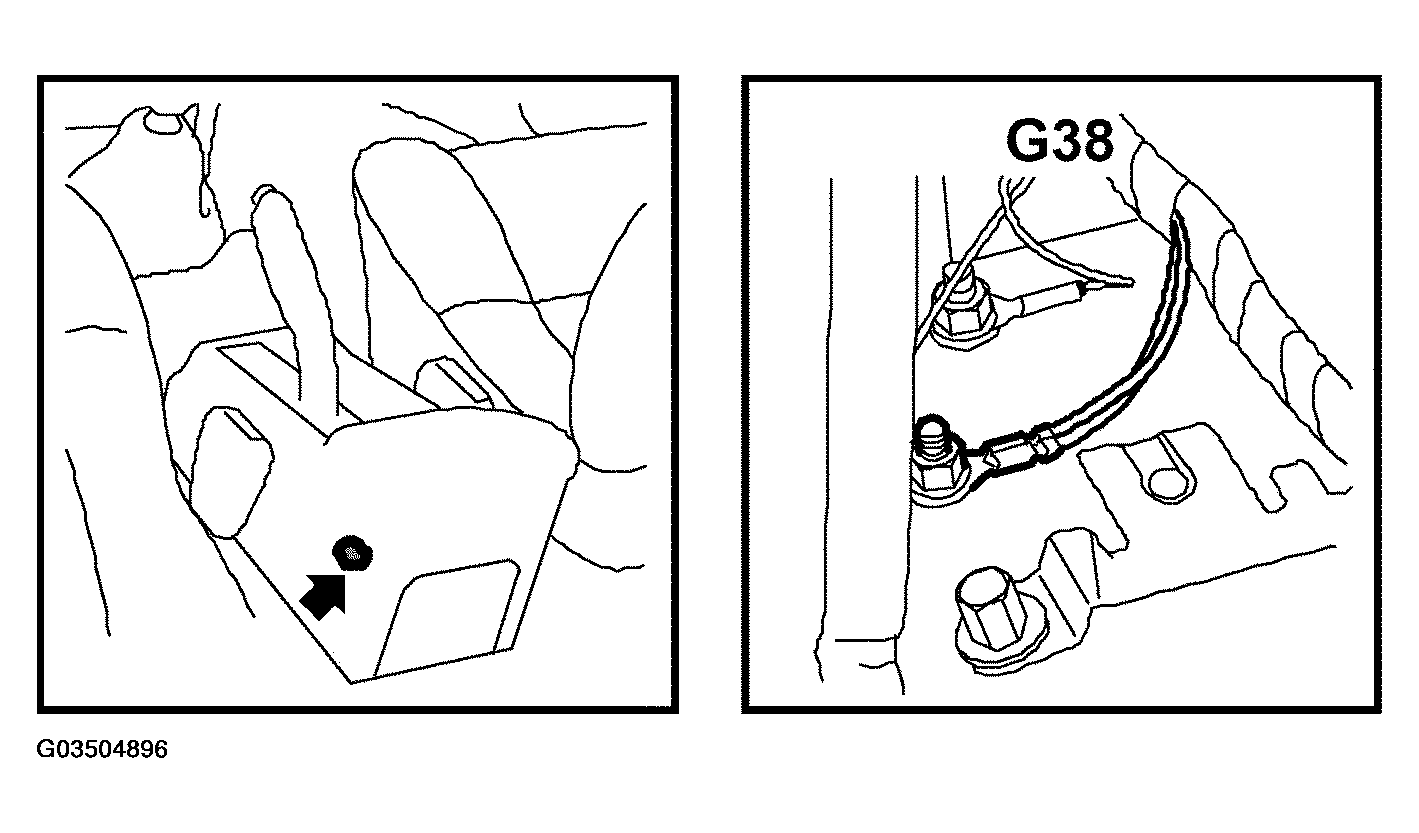

Fig 1: Identifying Grounding Point (G38)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

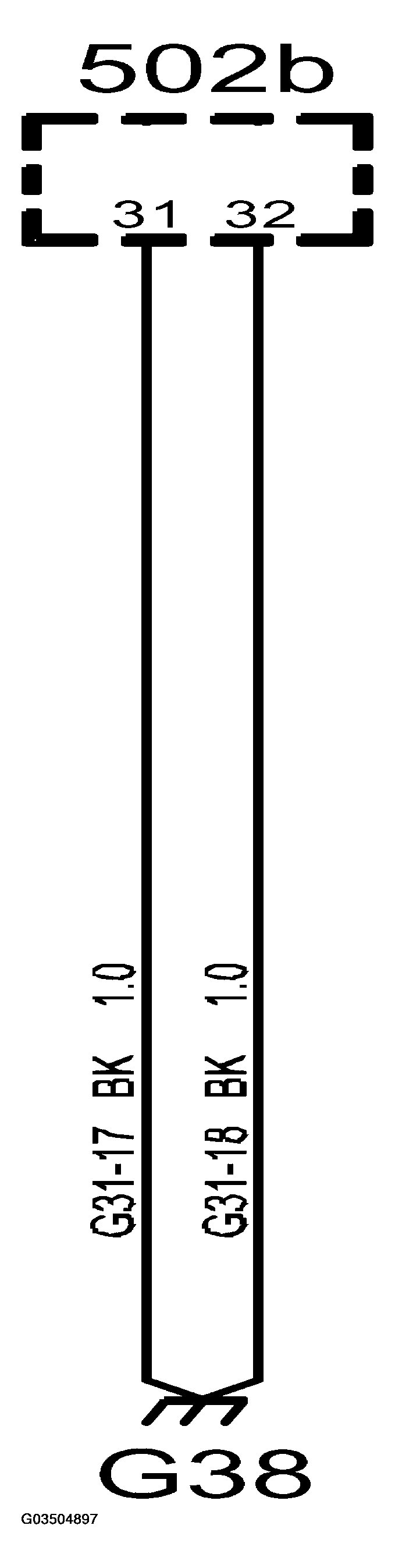

Fig 2: Crimp - Grounding Point G38

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  on transmission tunnel between seats.
