To remove

  1. Remove the valve housing cover, see .

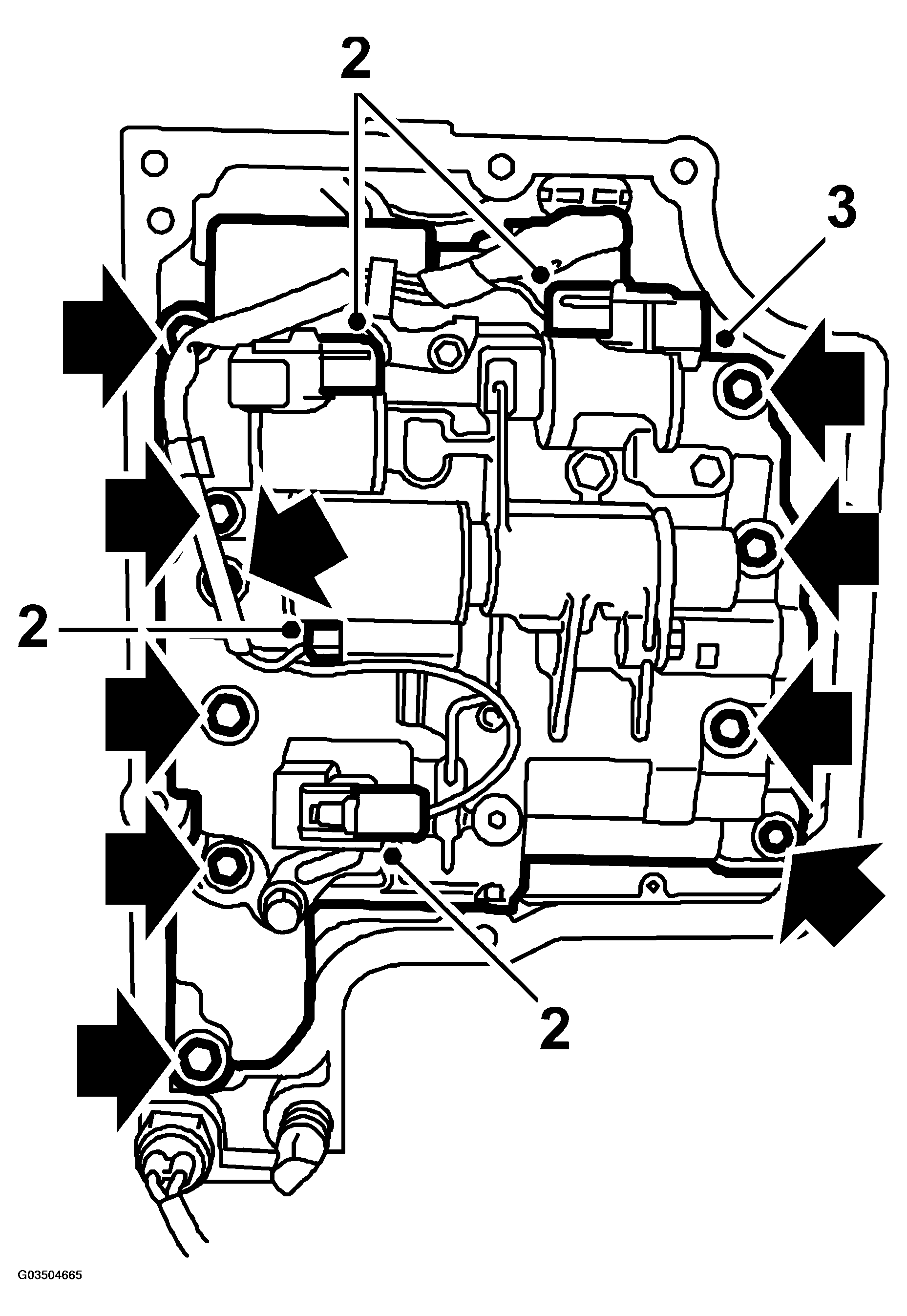

    Fig 1: Illustration For Steps 2-3
    G03504665Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unplug the solenoids' connectors.
  3. Remove the nine bolts securing the valve housing.
    4. NOTE: Start with the two retaining bolts at bottom left which secure the cover for the fluid passages, saving the two top retaining bolts until last. The bolts are of 3 different lengths.
    IMPORTANT: The passages are filled with transmission fluid.
  5. Carefully remove the manual valve from the selector lever out of the retaining eye and carefully lift out the valve housing.

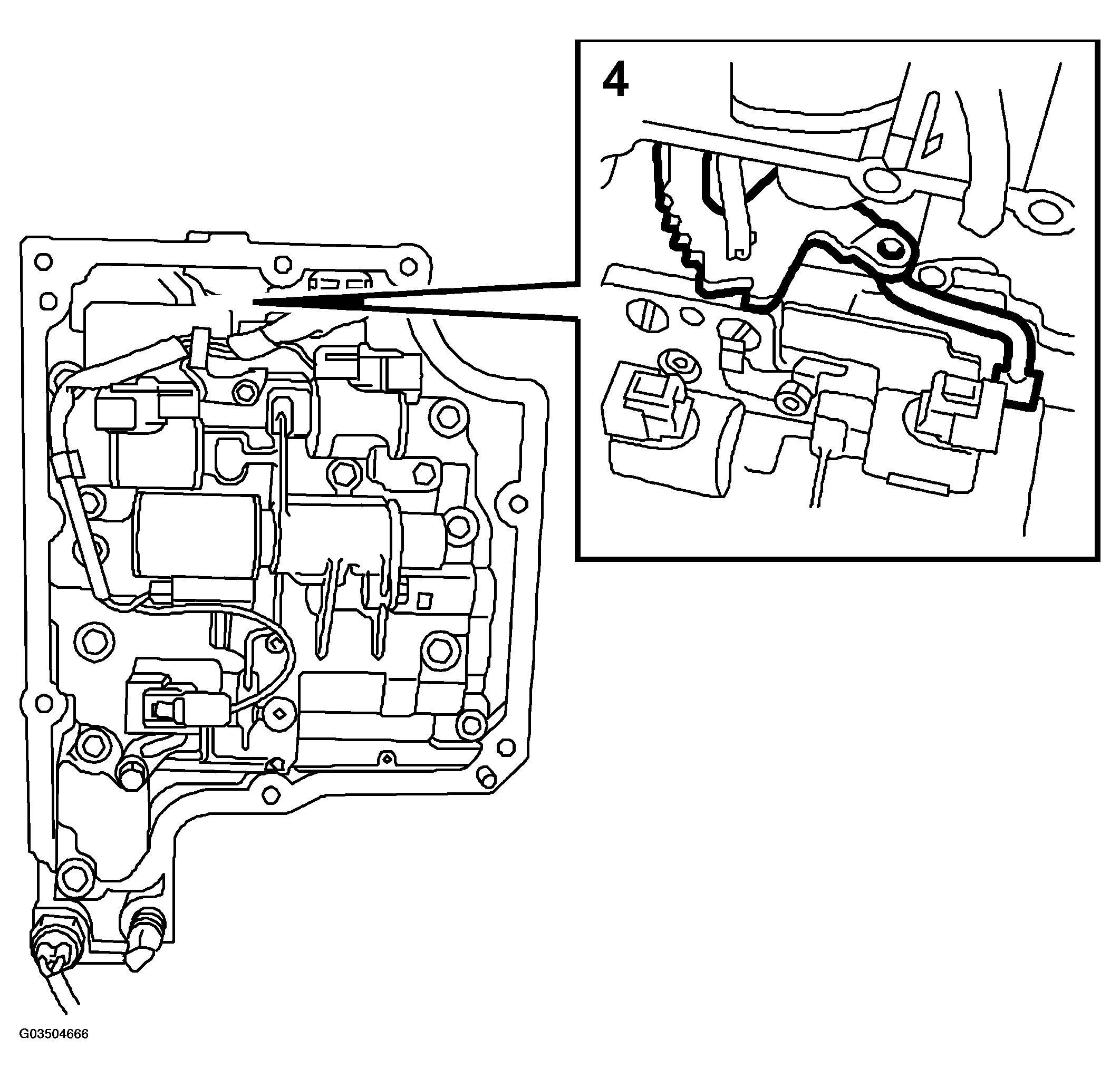

    Fig 2: Illustration For Step 4
    G03504666Courtesy of SAAB-SCANIA OF AMERICA, INC.
NOTE: Make sure that the two O-rings fitted inside the valve housing do not fall out.
