To remove

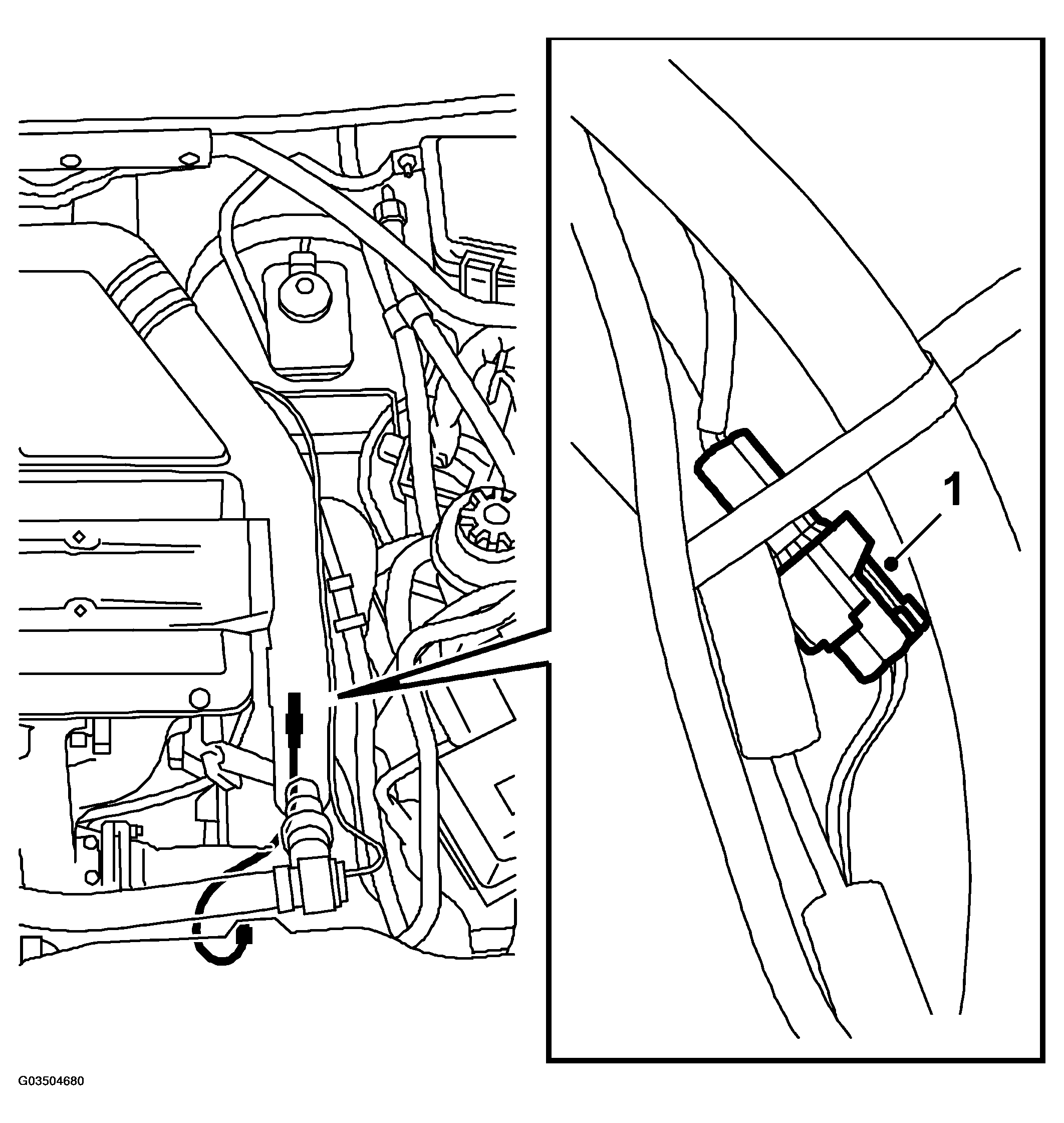

Fig 1: Illustration For Step 1
G03504680Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Disconnect the temperature sensor's cable.
  2. Remove the two bolts securing the cover.

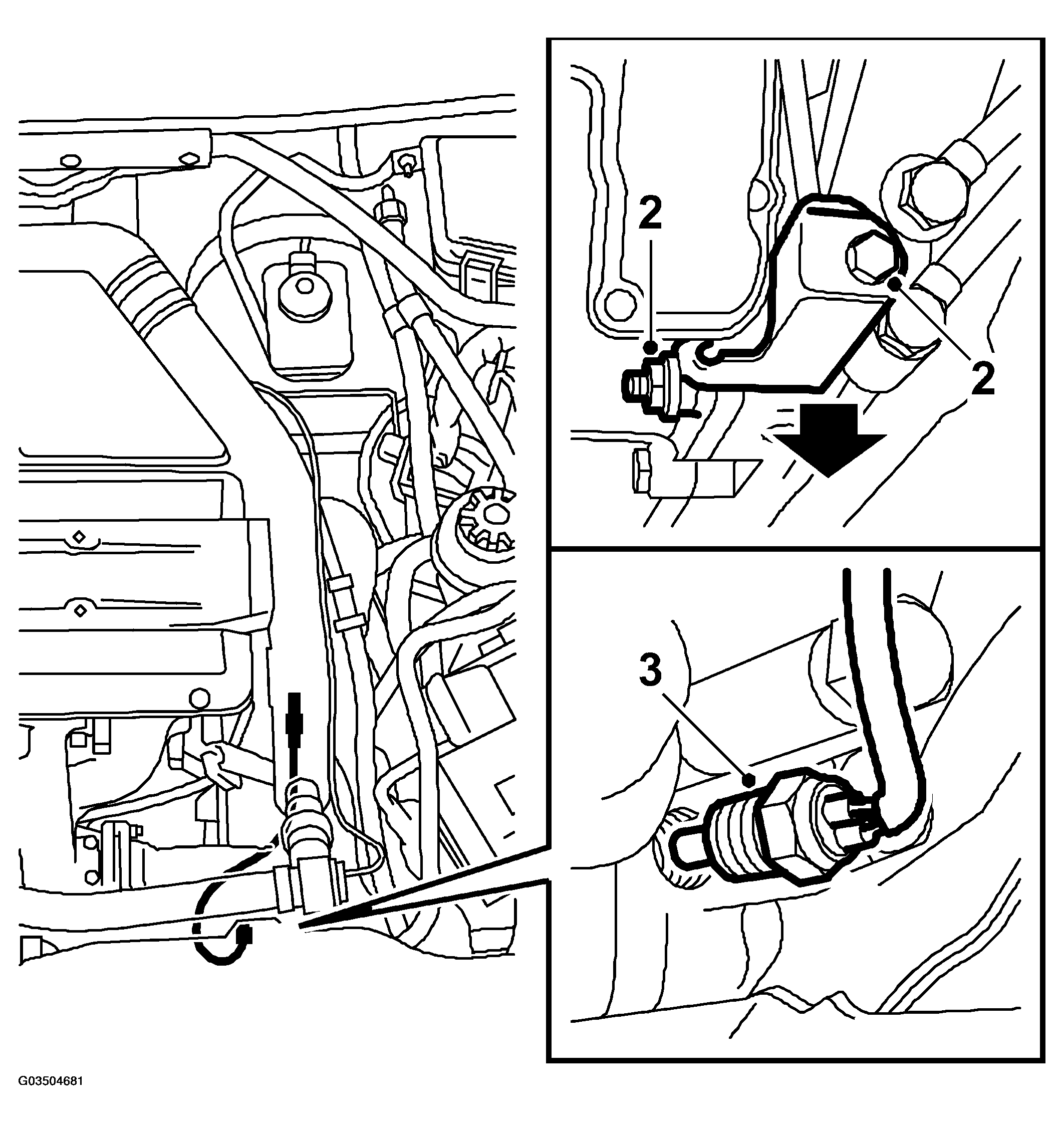

    Fig 2: Illustration For Steps 2-3
    G03504681Courtesy of SAAB-SCANIA OF AMERICA, INC.
    NOTE: Fluid will run from the gearbox.
  3. Unscrew the fluid temperature sensor, plugging the hole to prevent fluid from running out.
