Home >> Saab >> 2001 >> 9-3 Base, 4D Hatchback, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Adjustment-Replacement >> Torque converter >> To remove

To remove

  1. Remove the gearbox, see TO REMOVE , under automatic gearbox assembly.

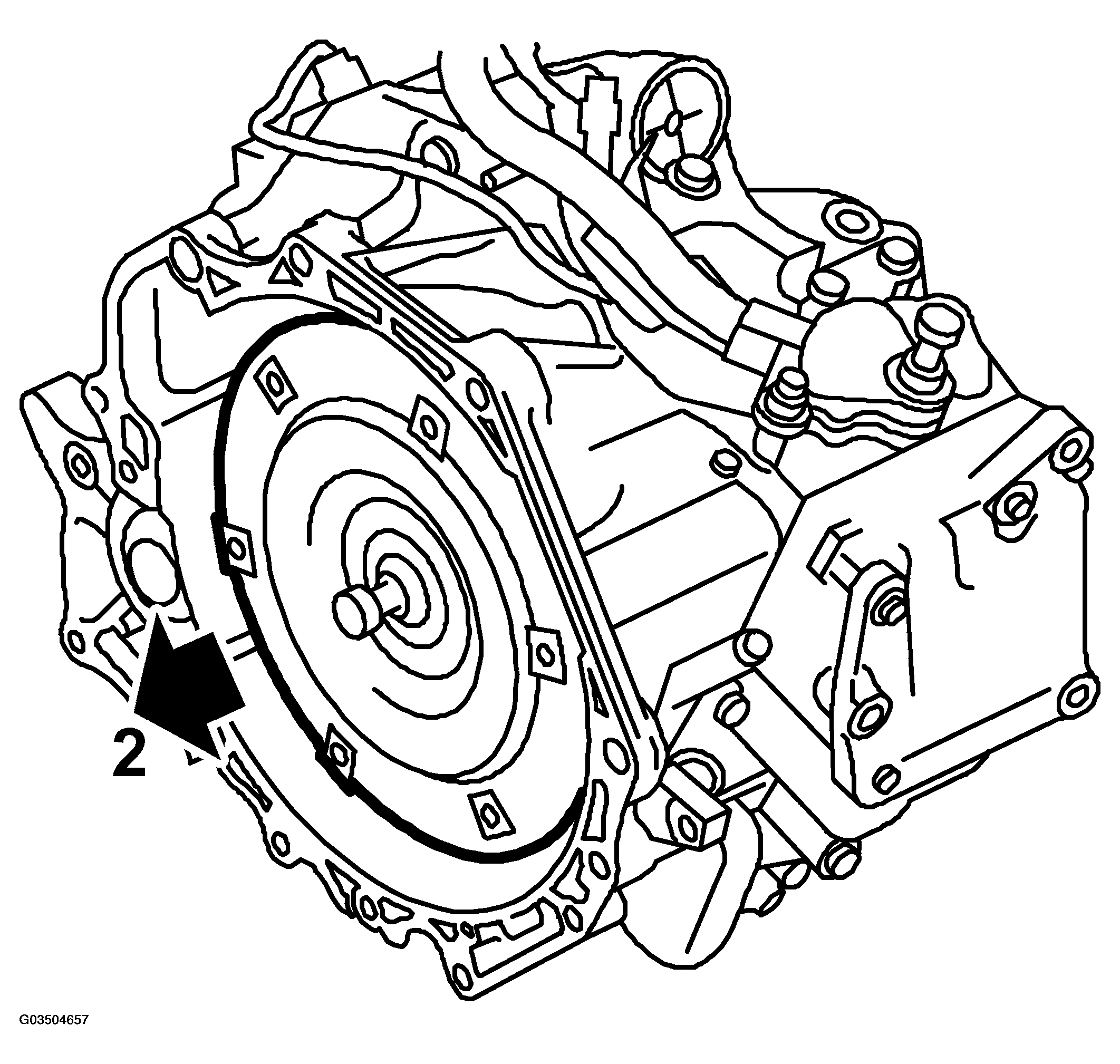

    Fig 1: Illustration For Step 2
    G03504657Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Lift out the torque converter.
