To remove

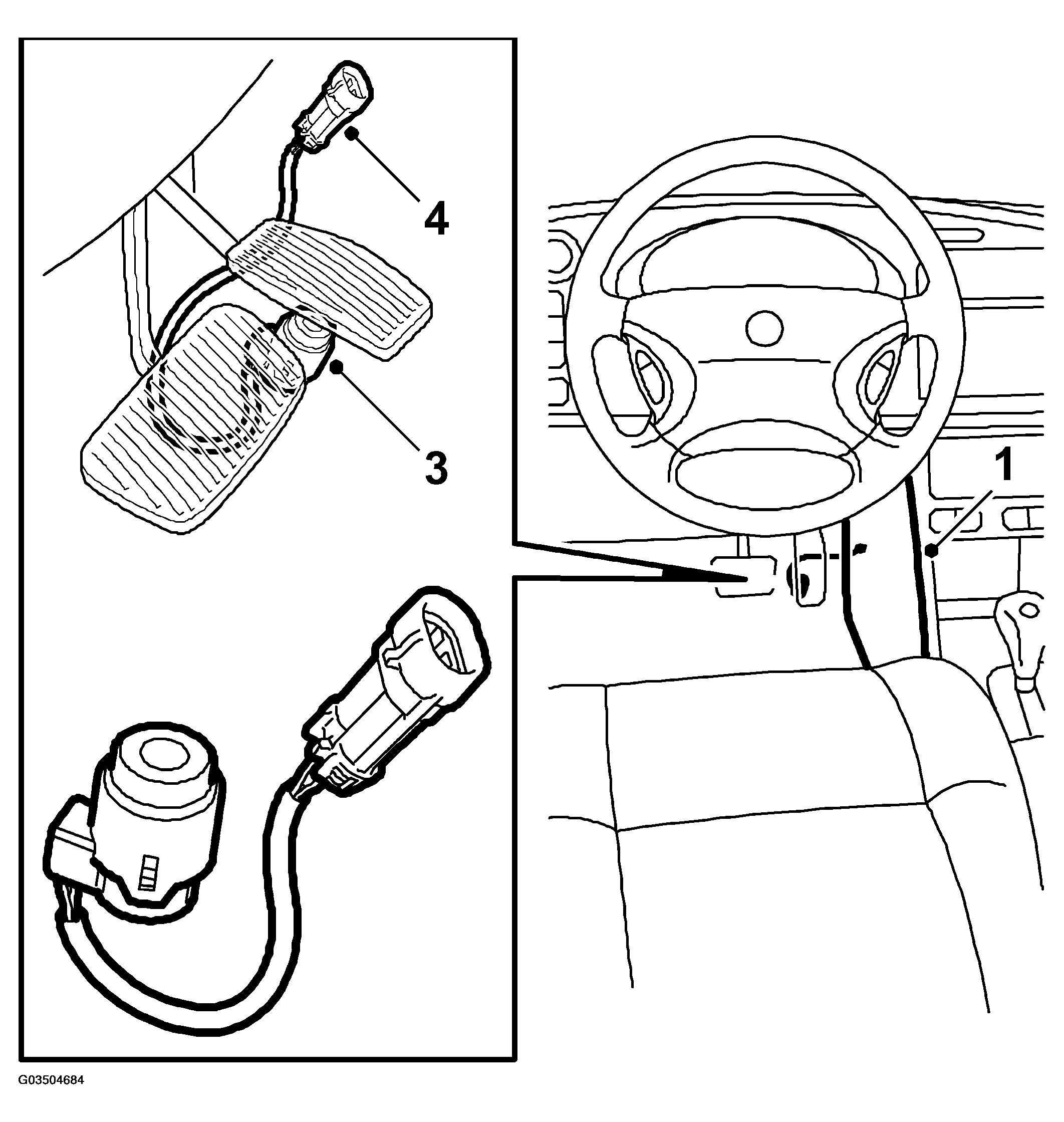

Fig 1: Illustration For Steps 1, 3 & 4
G03504684Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the left-hand side of the center console.
  2. Fold up the mat.
  3. Work loose the connector and pull it straight up (it is pressed onto a metal bracket).
  4. Unplug the electrical connector.
