To fit

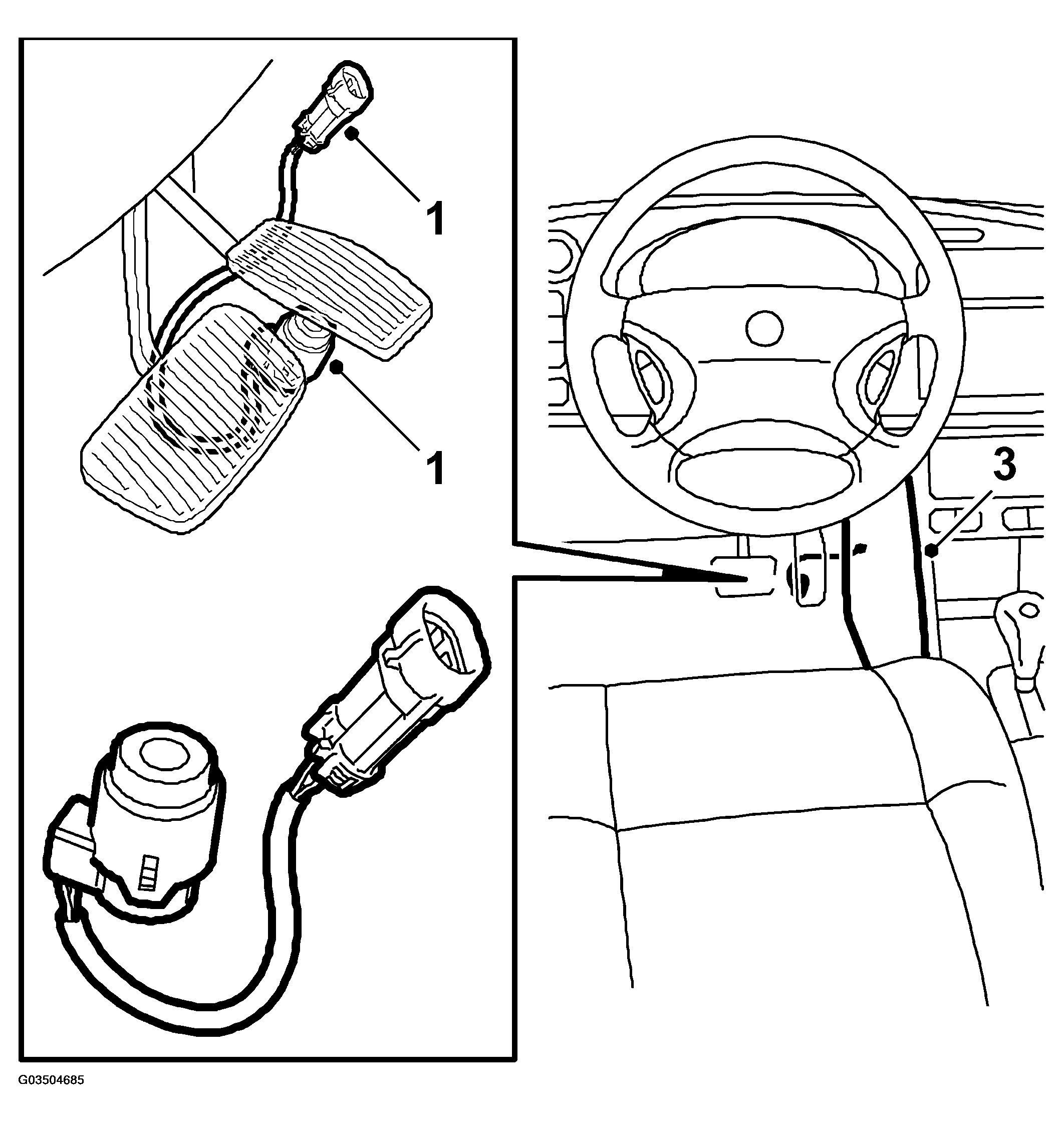

Fig 1: Illustration For Steps 1 & 3
G03504685Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Plug in the kickdown switch and press it onto the metal bracket.
    IMPORTANT: It is important that the switch is pushed all the way home. Otherwise, the kickdown function will be activated at the incorrect accelerator pedal position. Lubricate lightly with silicone spray to facilitate fitting.
  2. Put back the mat.
  3. Refit the side of the center console.
  4. Check/adjust the kick-down function, see .
