To fit

Fig 1: Identifying Holder

Courtesy of SAAB-SCANIA OF AMERICA, INC.

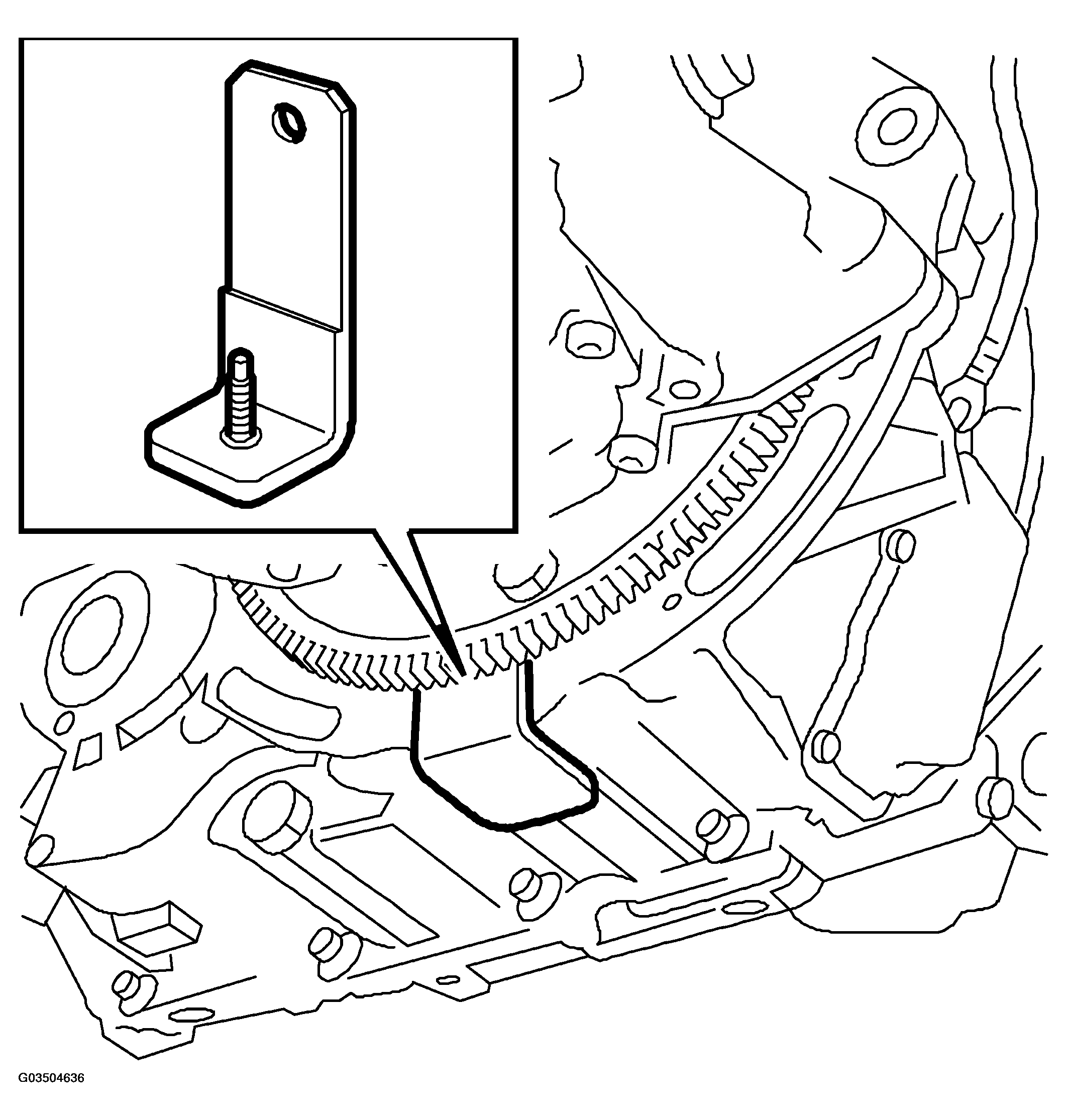

When fitting a new gearbox, transfer the holder 87 92 277 for the torque converter from the new gearbox to the old one. Also, transfer the front engine mounting and selector lever cable mounting from the old gearbox to the new one.

1. Turn the torque converter so that the bolt holes line up with the holes in the drive plate.
2. Make sure the two guide sleeves are fitted on the engine. Lubricate the sleeves with a thin layer of anti-corrosion oil.

   Fit new drive shaft seals, lubricate the seals.

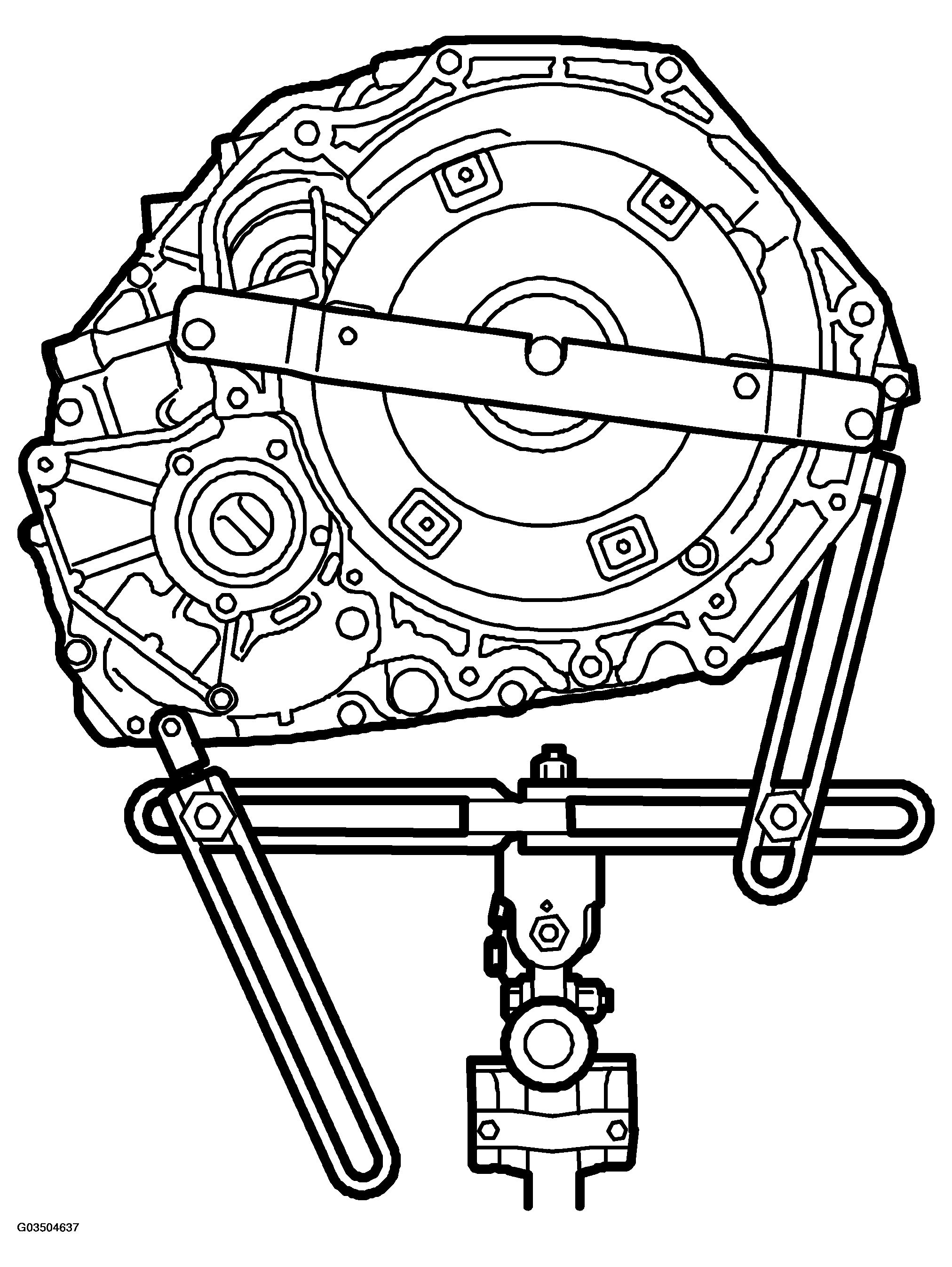

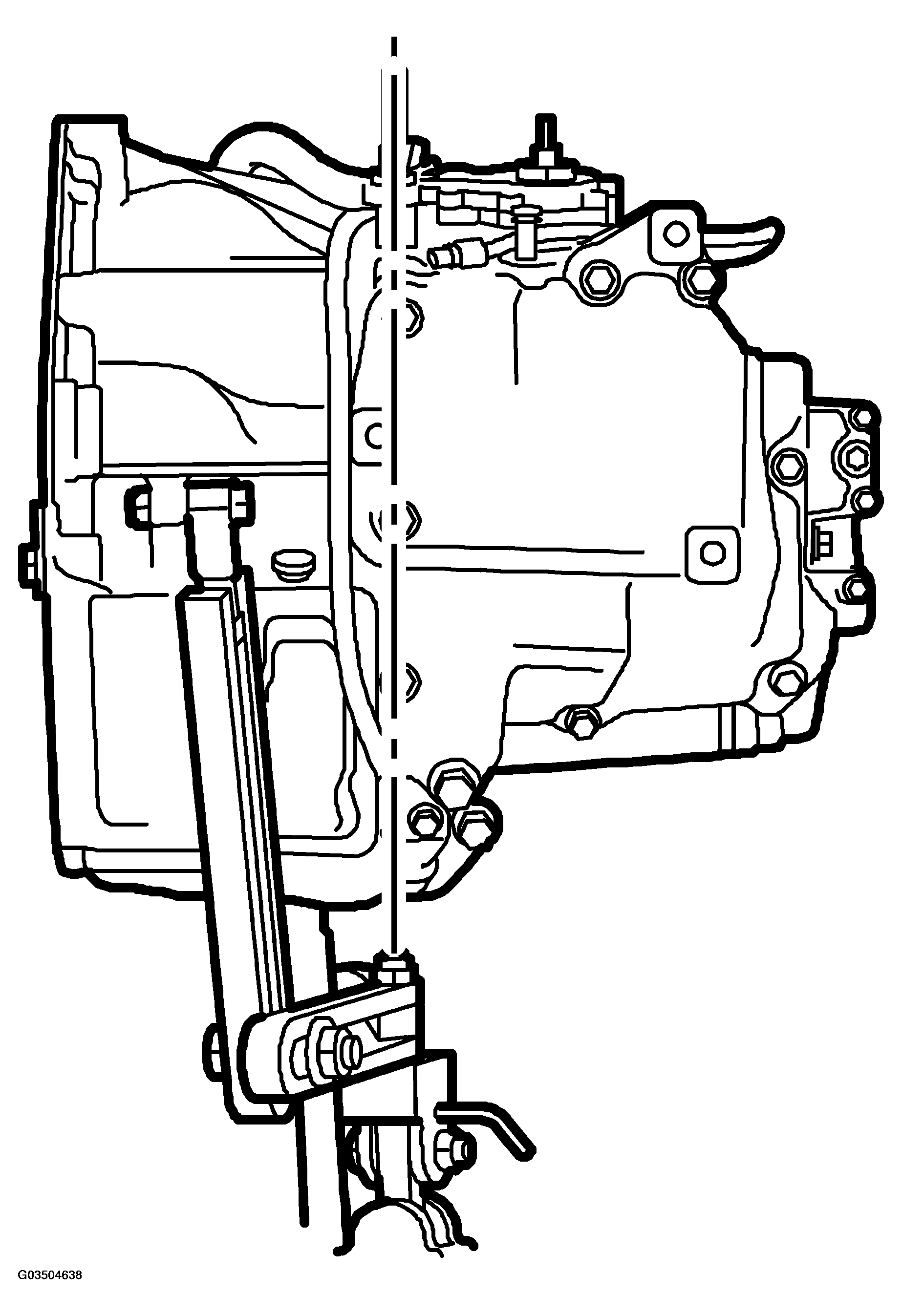

3. Attach the lifting tool MKM-886, part no. 87 92 608. Adjust the tool, if its setting has been changed since removal, so that it is centered on the lifting lug on top of the gearbox and tighten it to the gearbox.
   Fig 2: Placing Tool In Center Of Lifting Lug On Top Of Gearbox

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
4. Fit the gearbox using the lifting tool and a pillar jack.
   Fig 3: Installing Front Bolt Between Engine And Gearbox

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
   WARNING: The pillar-type jack may tip over. Exercise care.

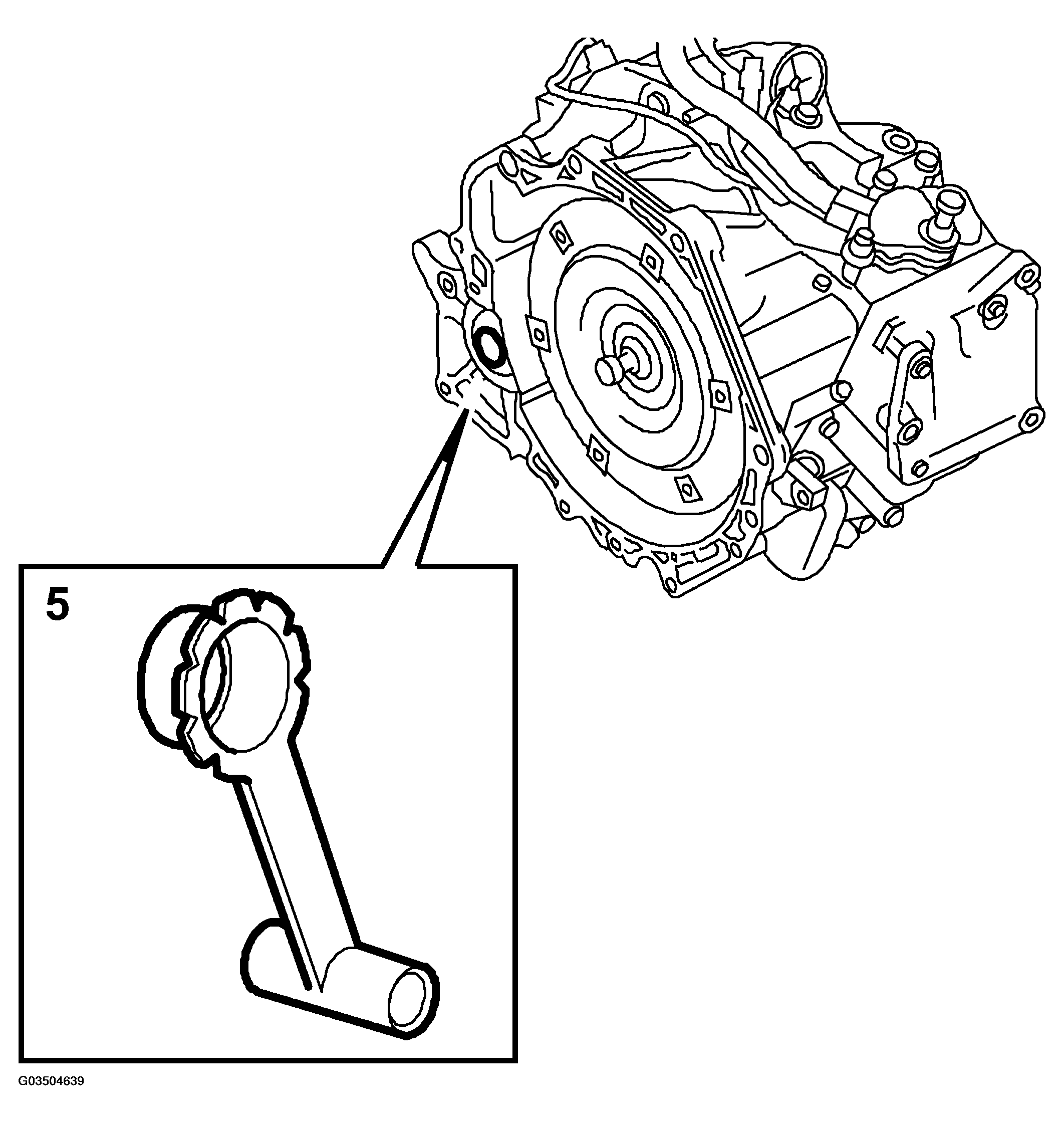

5. Fit protective collar 83 95 162 in the right-hand shaft seal on the gearbox to protect the seal when the gearbox is fitted.
   Fig 4: Identifying Protective Collar And Location

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
6. Place the gearbox in position.
   IMPORTANT: Push the gearbox into place until about 20 mm remains and then remove tool 83 95 162.

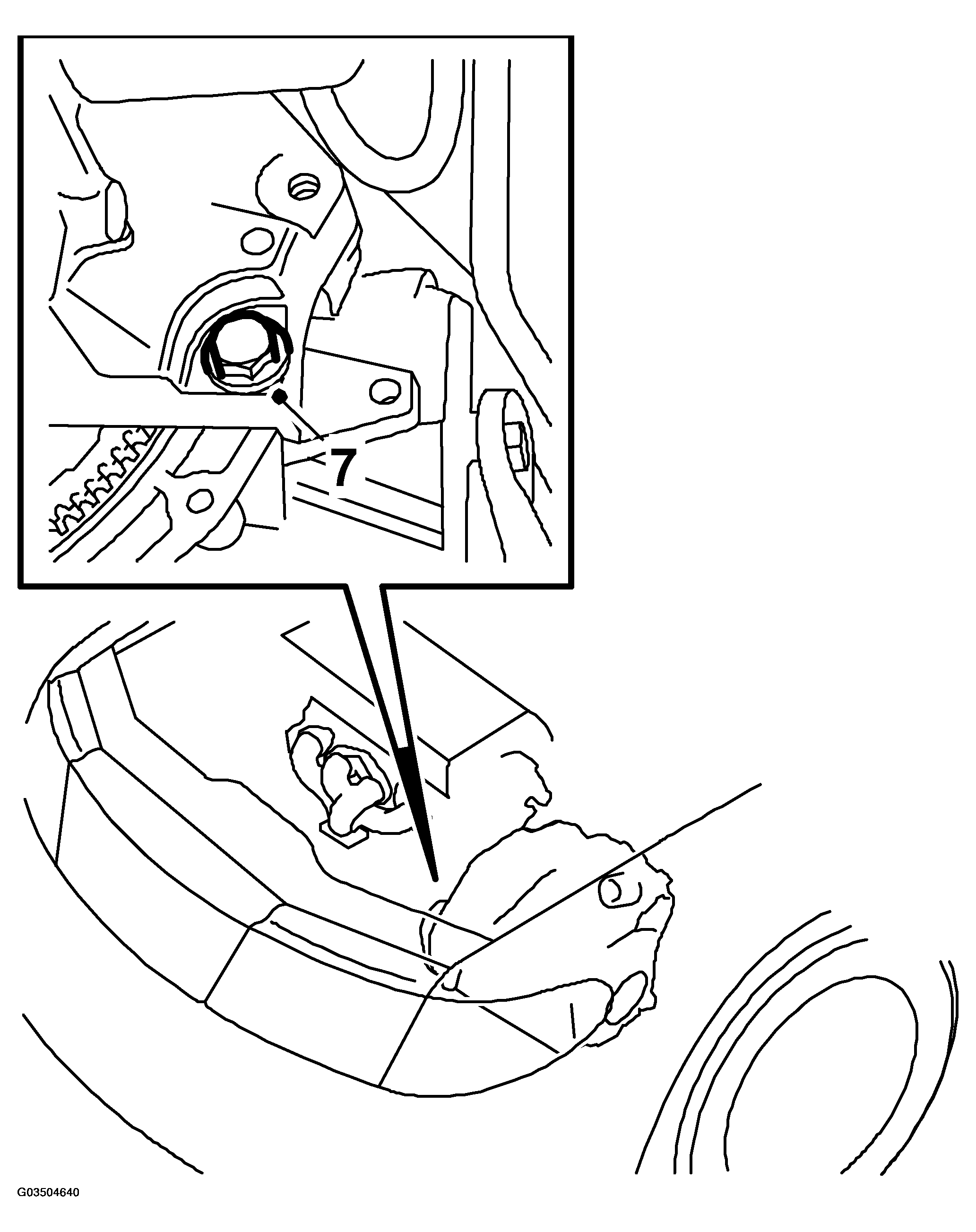

7. Tighten the bottom bolts between the engine and the gearbox.

   Tightening torque 75 N.m (55 lbf ft)

Fig 5: Illustration For Step 7
Courtesy of SAAB-SCANIA OF AMERICA, INC.

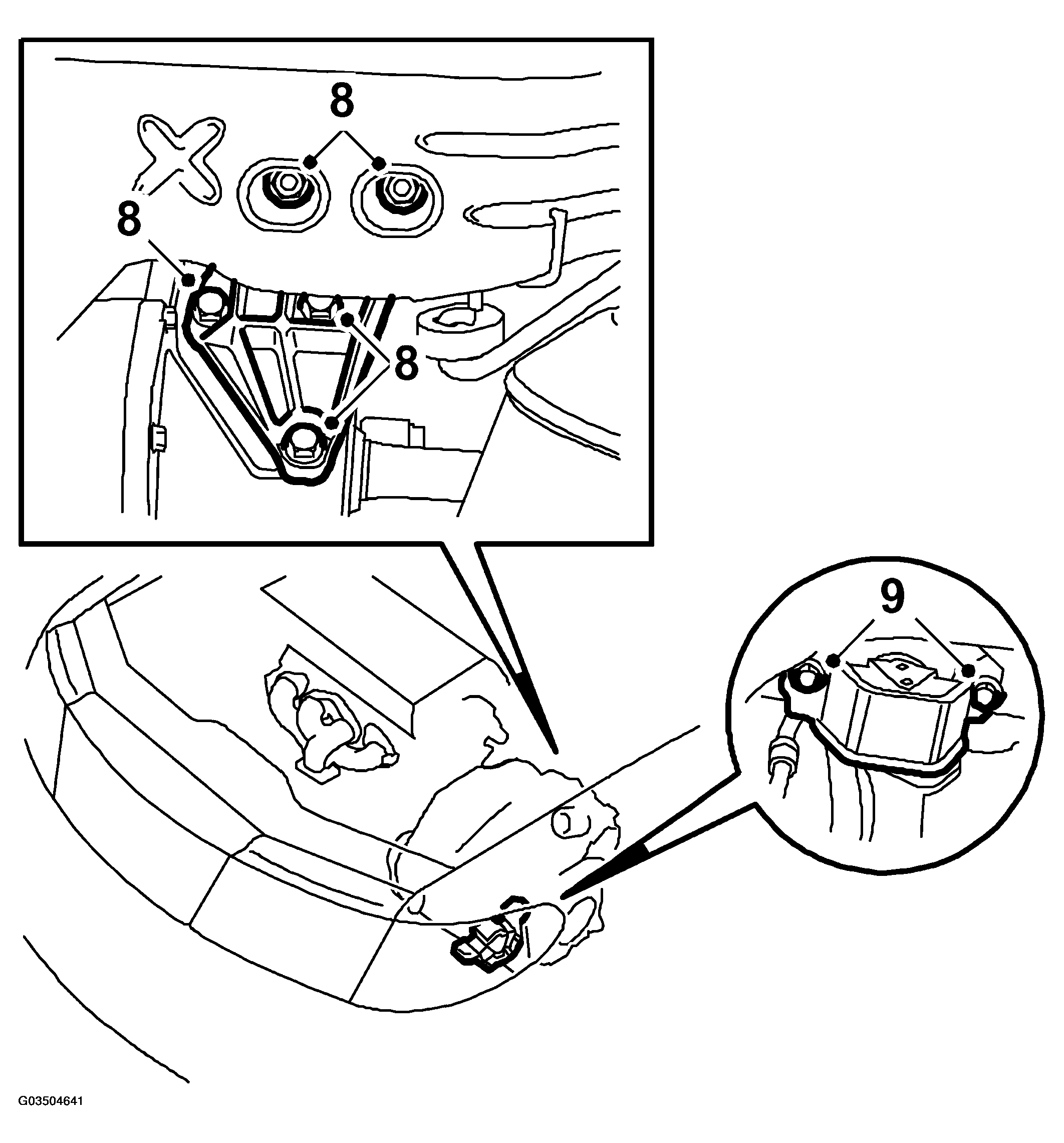

8. Fit the rear engine mounting on the gearbox.

   Tightening torque 40 N.m (30 lbf ft)

   Fig 6: Illustration For Steps 8-9

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
9. Lift the powertrain with a jack and tighten the left-hand engine mounting on the body.

   Tightening torque 62 N.m (46 lbf ft)

10. Remove the lifting tool from the gearbox and remove the jack.
11. Remove tool 87 92 277 that is holding the torque converter in position. Fit the plug.
12. Apply Loctite 242 (74 96 268) to the bolts securing the torque converter to the drive plate.
    NOTE: Use the original bolts with washers. If the bolts are too long, the torque converter will be ruined.
13. Fit the 6 bolts without tightening them.
14. Tighten them when they are all fitted in place.

    Tightening torque 60 N.m (44 lbf ft)

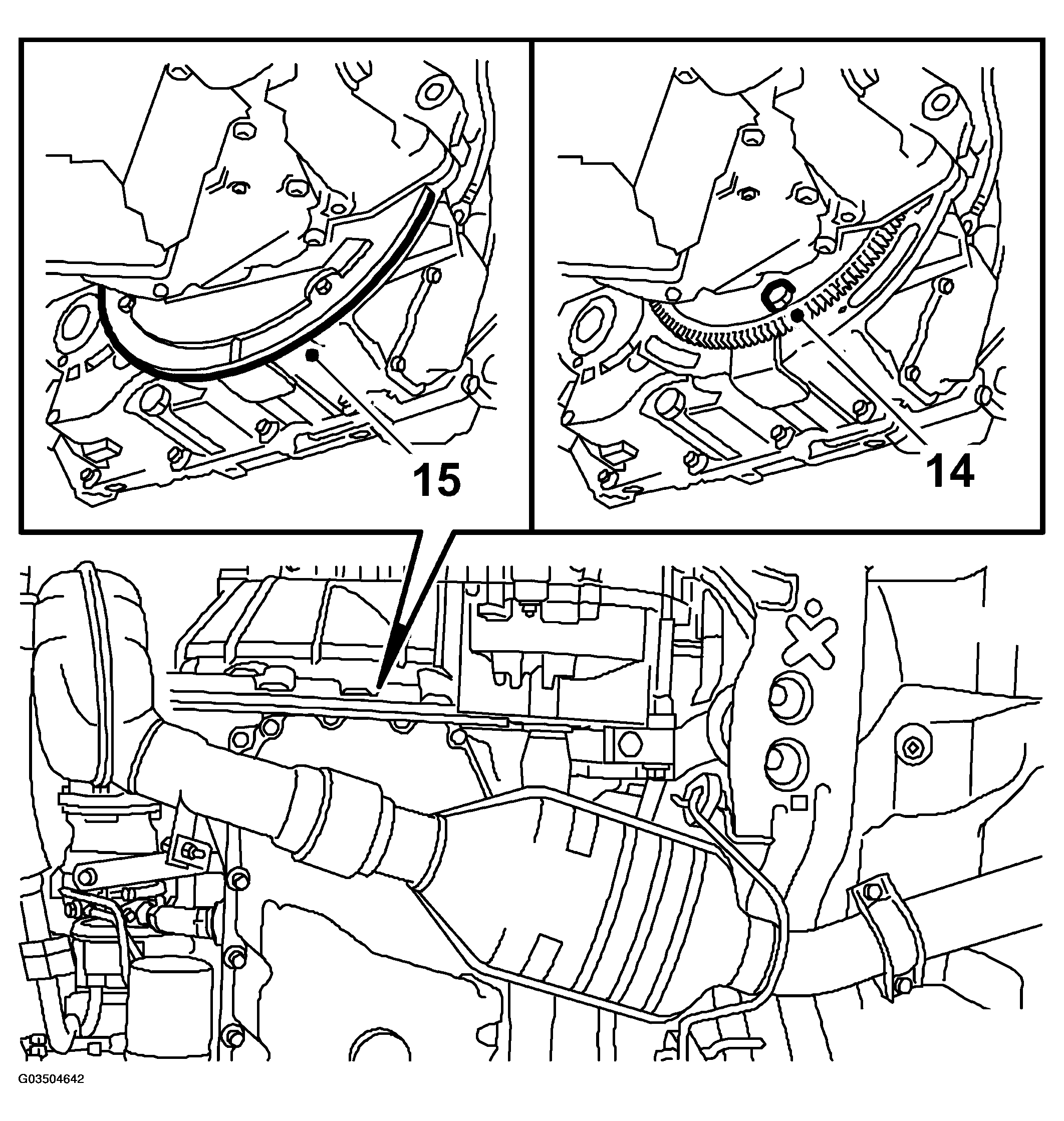

    Fig 7: Illustration For Steps 14-15

    Courtesy of SAAB-SCANIA OF AMERICA, INC.
15. Fit the splash guard.

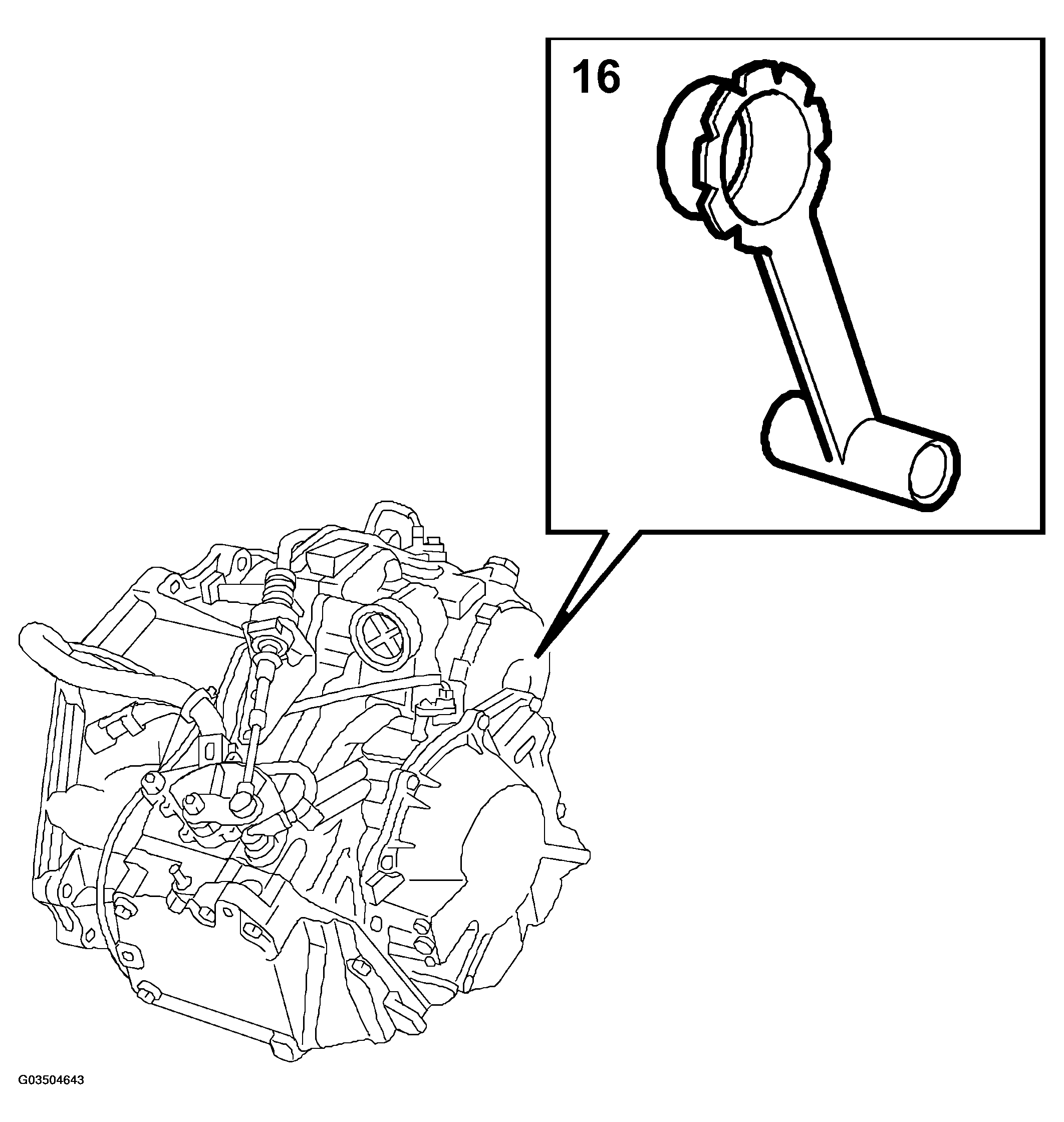

16. Fit protective collar 83 95 162 in the sealing ring.
    Fig 8: Identifying Protective Collar And Location

    Courtesy of SAAB-SCANIA OF AMERICA, INC.
17. Make sure that the drive shaft is clean and then align it with the tool.
    IMPORTANT: Insert all but 20 mm of the drive shaft in the gearbox and then withdraw the tool before the shaft's sealing surface reaches the shaft seal.
18. Push in the rest of the shaft until the circlip clicks in.
19. After changing the gearbox, the cooling circuit must be cleaned if the oil is fouled, see CLEANING THE COOLING CIRCUIT ,

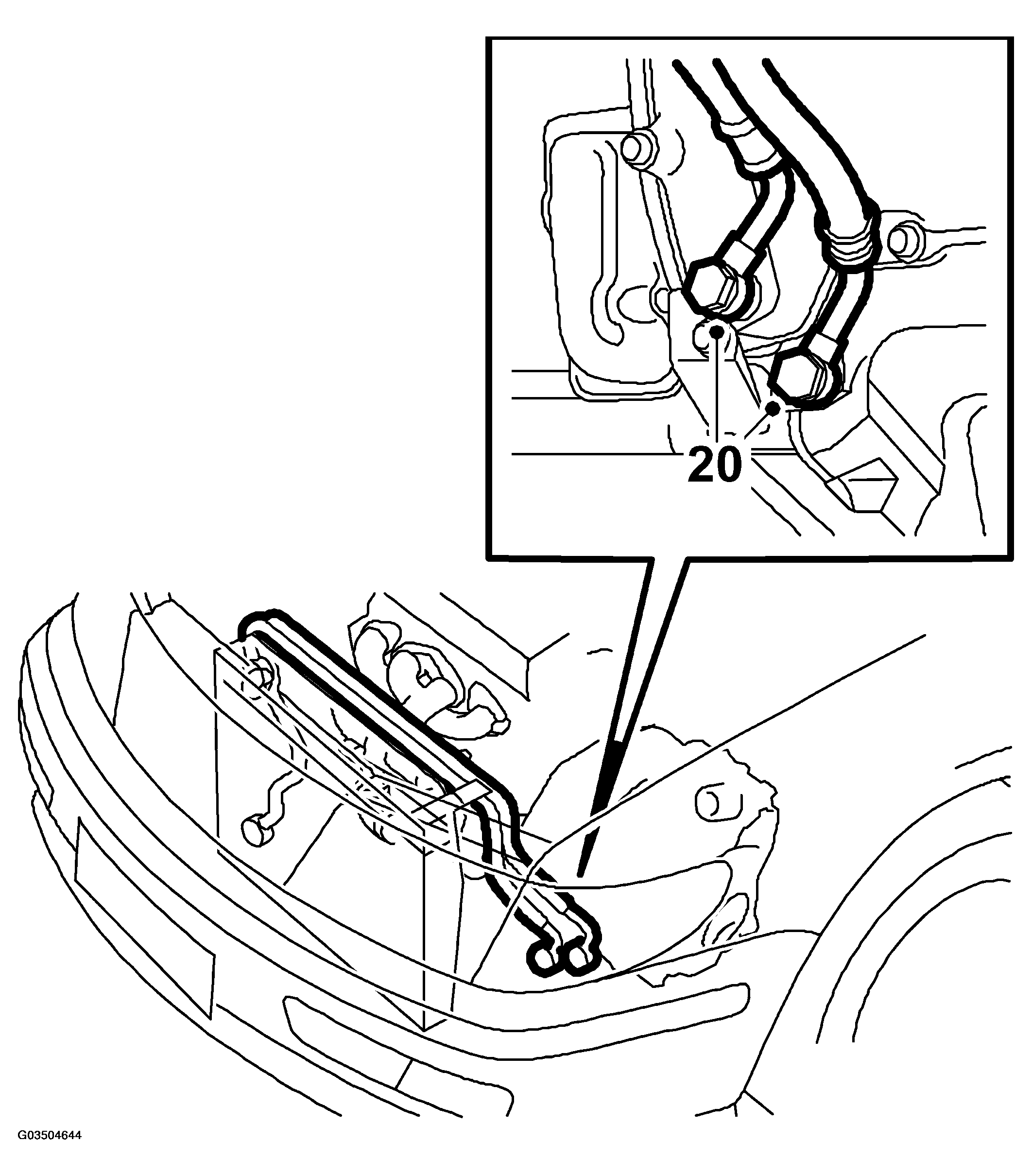

20. Fit the transmission oil cooling inlet and outlet hoses. Make sure they do not make contact with the subframe. Use new seals lubricated with vaseline.

    Tightening torque 27 N.m (20 lbf ft)

    Fig 9: Illustration For Step 20

    Courtesy of SAAB-SCANIA OF AMERICA, INC.
21. Carefully raise the subframe. Make sure the washers on the rear mountings are in place and then position the suspension arm end pieces.

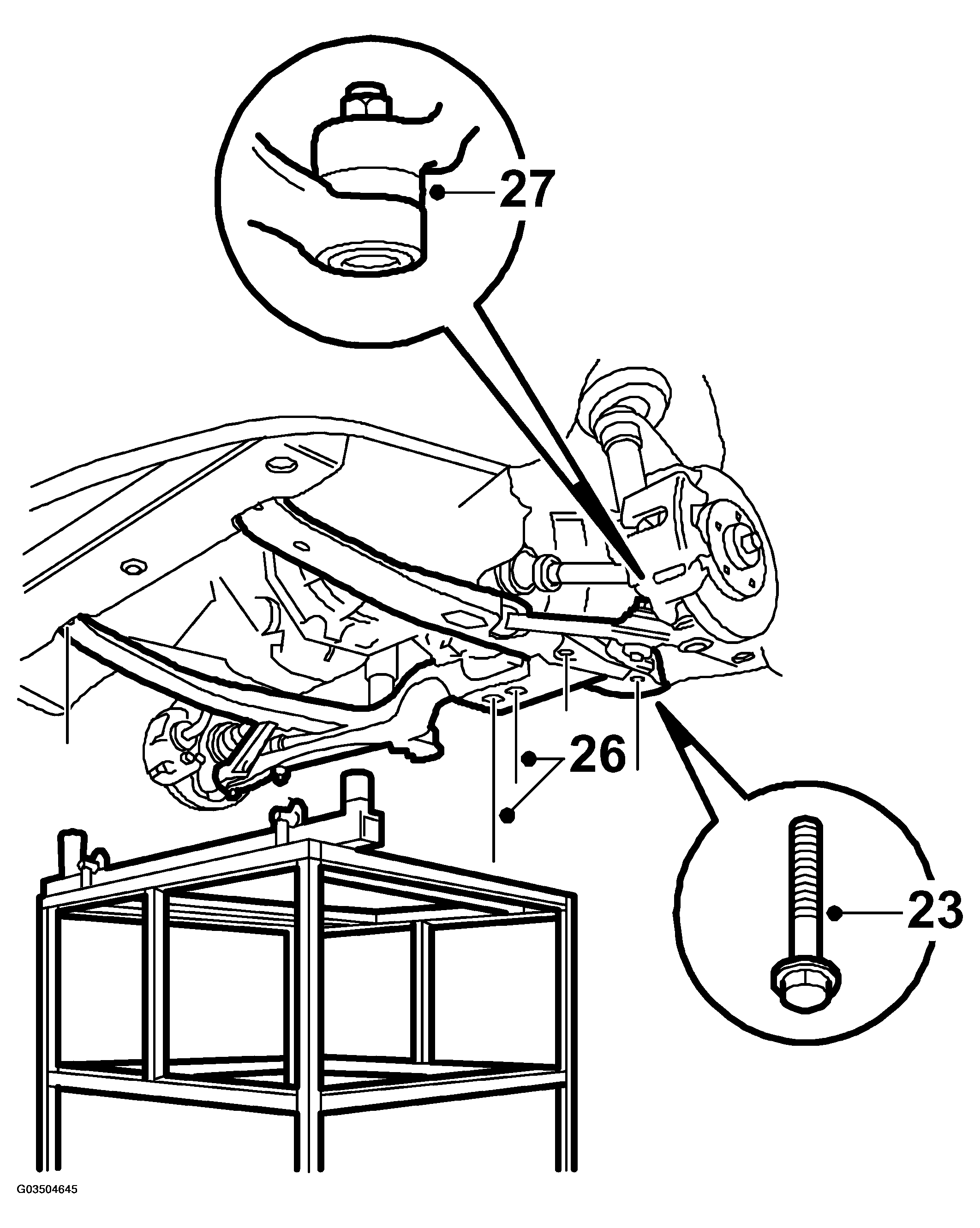

    Fig 10: Illustration For Steps 23, 26 & 27

    Courtesy of SAAB-SCANIA OF AMERICA, INC.
22. Adjust the subframe so that the bolt holes are aligned with the body.
23. Tighten the 4 corner bolts on the subframe.

    Tightening torque: front 115 N.m (85 lbf ft) rear 110 N.m (81 lbf ft) + 75°

    Fig 11: Illustration For Steps 23, 26 & 27

    Courtesy of SAAB-SCANIA OF AMERICA, INC.
24. Lower the lifting trolley and move it away.
25. Tighten the remaining bolts on the subframe.

    Tightening torque: center 190 N.m (141 lbf ft)

26. Tighten the nuts on the rear engine mounting.

    Tightening torque 50 N.m (37 lbf ft)

27. Tighten the suspension arm end pieces on both sides and tighten the nuts.

    Tightening torque 75 N.m (55 lbf ft)

28. Attach the ground lead to the end of the gearbox.

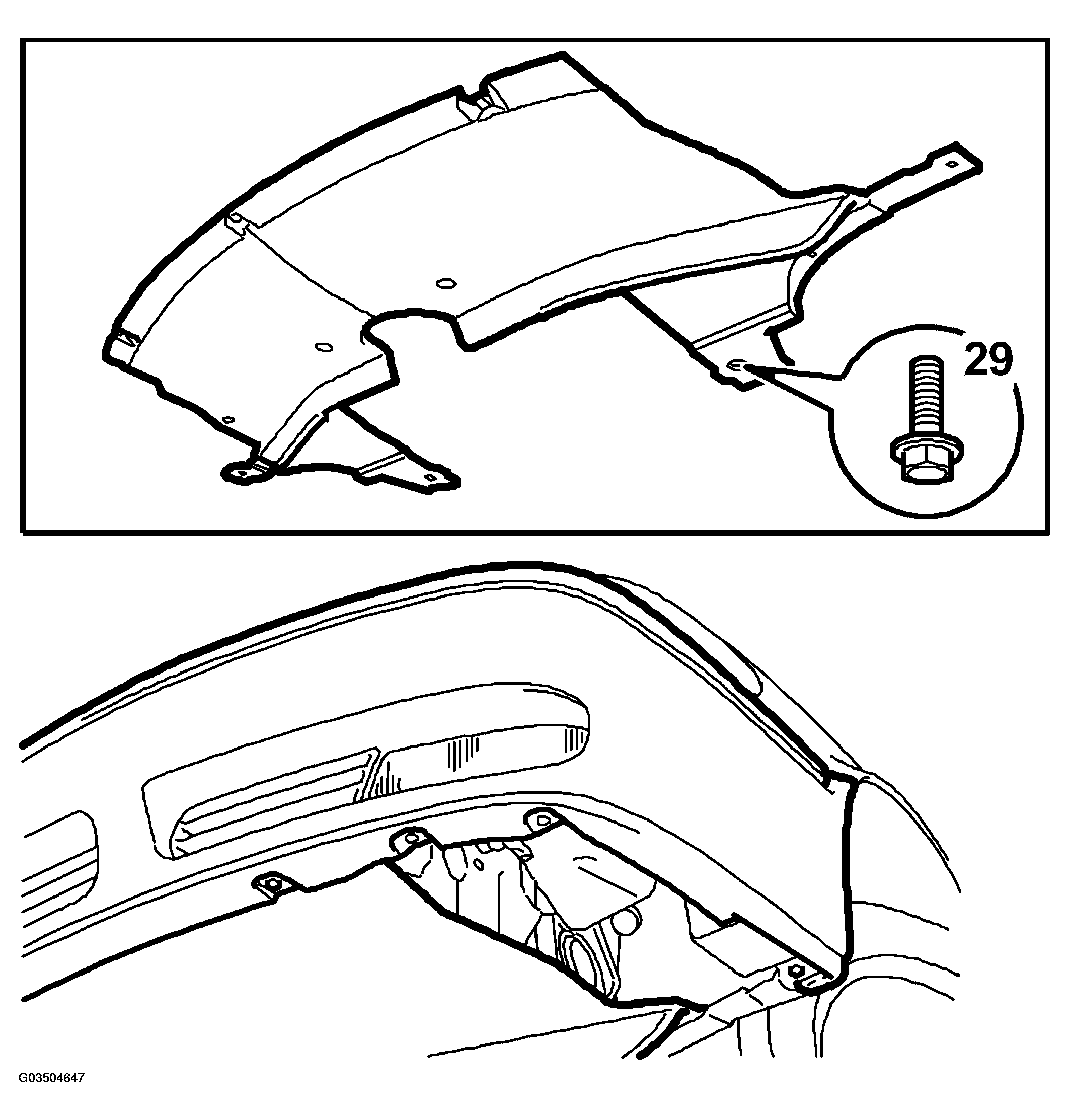

29. Refit the air shields and the lining in the right wheel housing.
    Fig 12: Illustration For Step 29

    Courtesy of SAAB-SCANIA OF AMERICA, INC.

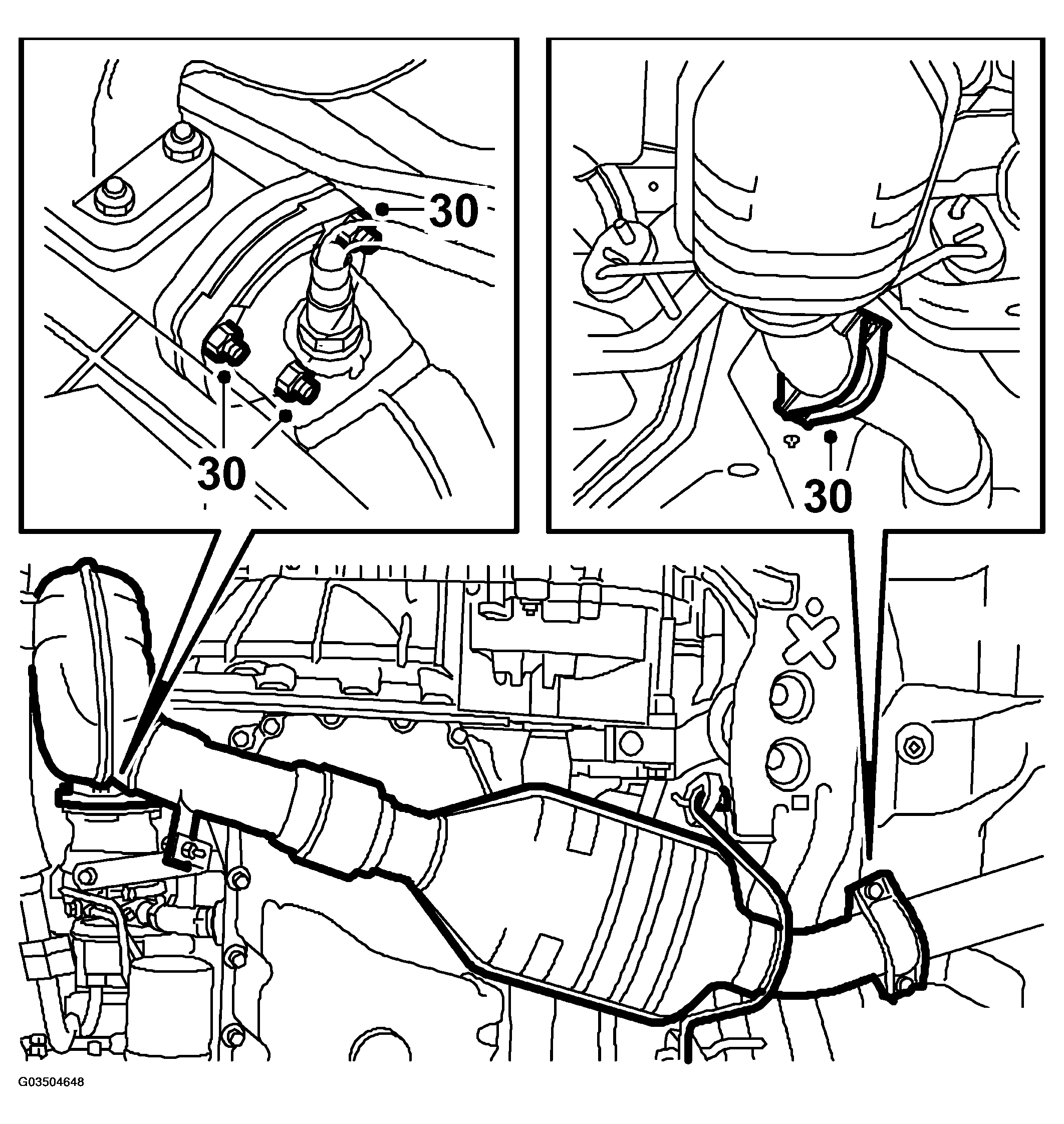

30. Fit the front exhaust pipe and put back the clips for the oxygen sensor cable.

    Tightening torque, exhaust flange: 40 N.m (30 lbf ft)

    Tightening torque, mounting: 25 N.m (19 lbf ft)

    Fig 13: Illustration For Step 30

    Courtesy of SAAB-SCANIA OF AMERICA, INC.
31. Fit the front wheels.

    Tightening torque 110 N.m (81 lbf ft)

    Lower the car to the floor.

32. Take away the lifting beam and tighten the top bolts between the engine and the gearbox.

    Tightening torque 75 N.m (55 lbf ft)

    Fig 14: Illustration For Step 32

    Courtesy of SAAB-SCANIA OF AMERICA, INC.

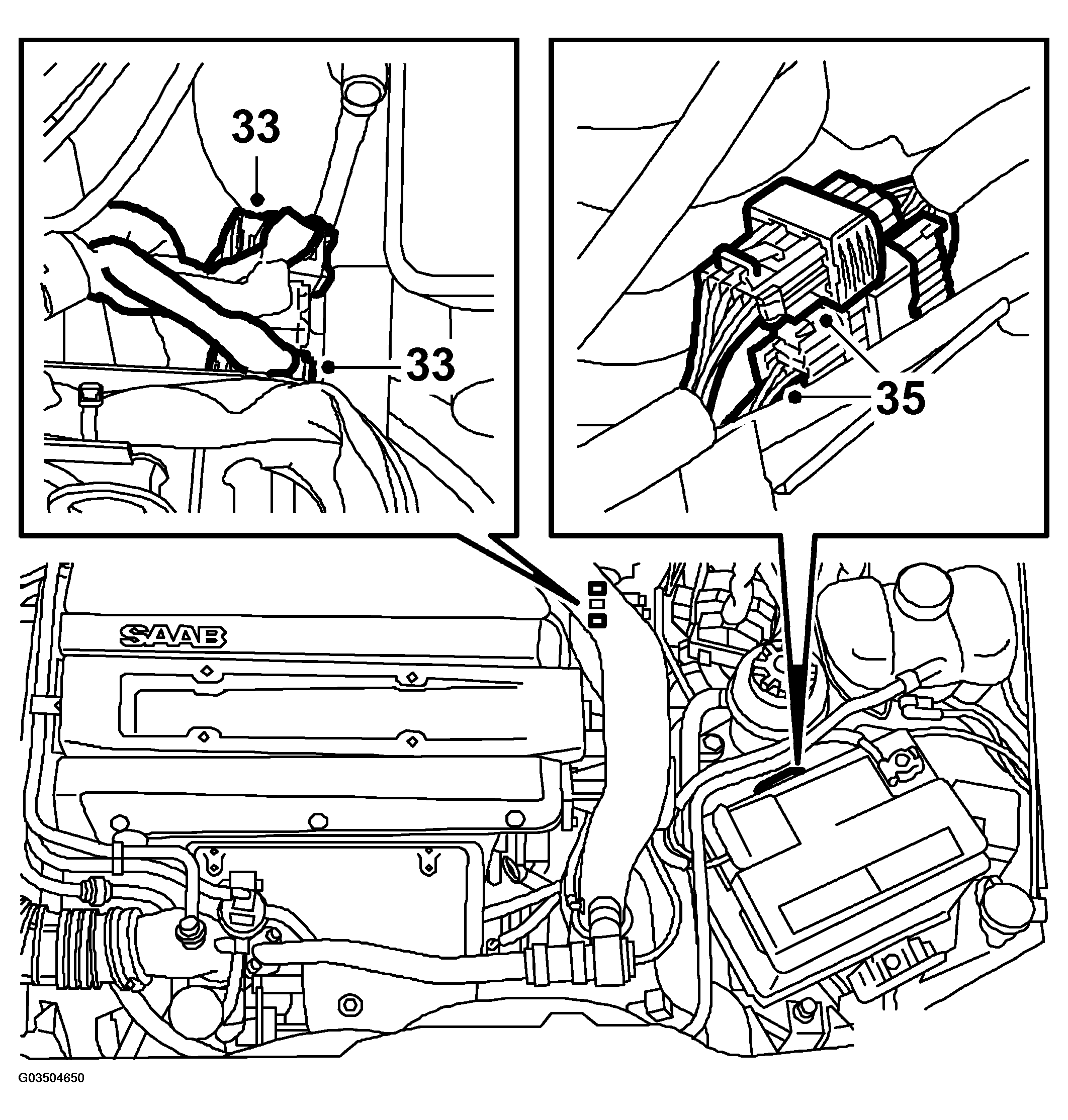

33. Connect the oxygen sensor and attach the clips.
    Fig 15: Illustration For Steps 33 & 35

    Courtesy of SAAB-SCANIA OF AMERICA, INC.
34. Fit the positive cable mounting on the engine.
35. Plug in the electrical connections for the gearbox (located on a bracket behind the battery).
36. Clean and fit the dipstick pipe.
    Fig 16: Illustration For Steps 36-39

    Courtesy of SAAB-SCANIA OF AMERICA, INC.

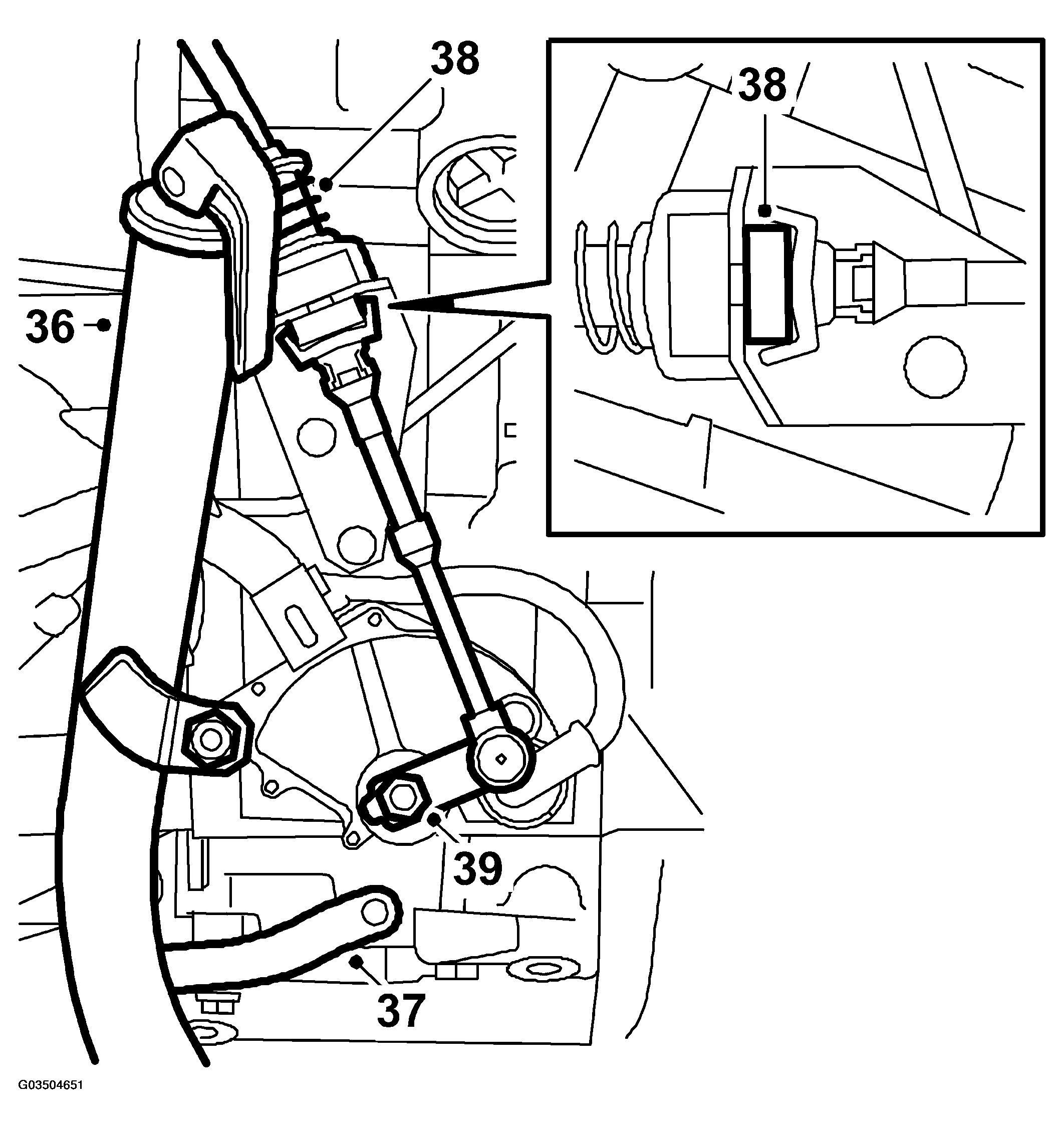

37. Fit the gearbox breather hose.
38. Fit the shifting cable to the bracket on the gearbox. Fit the clamp.

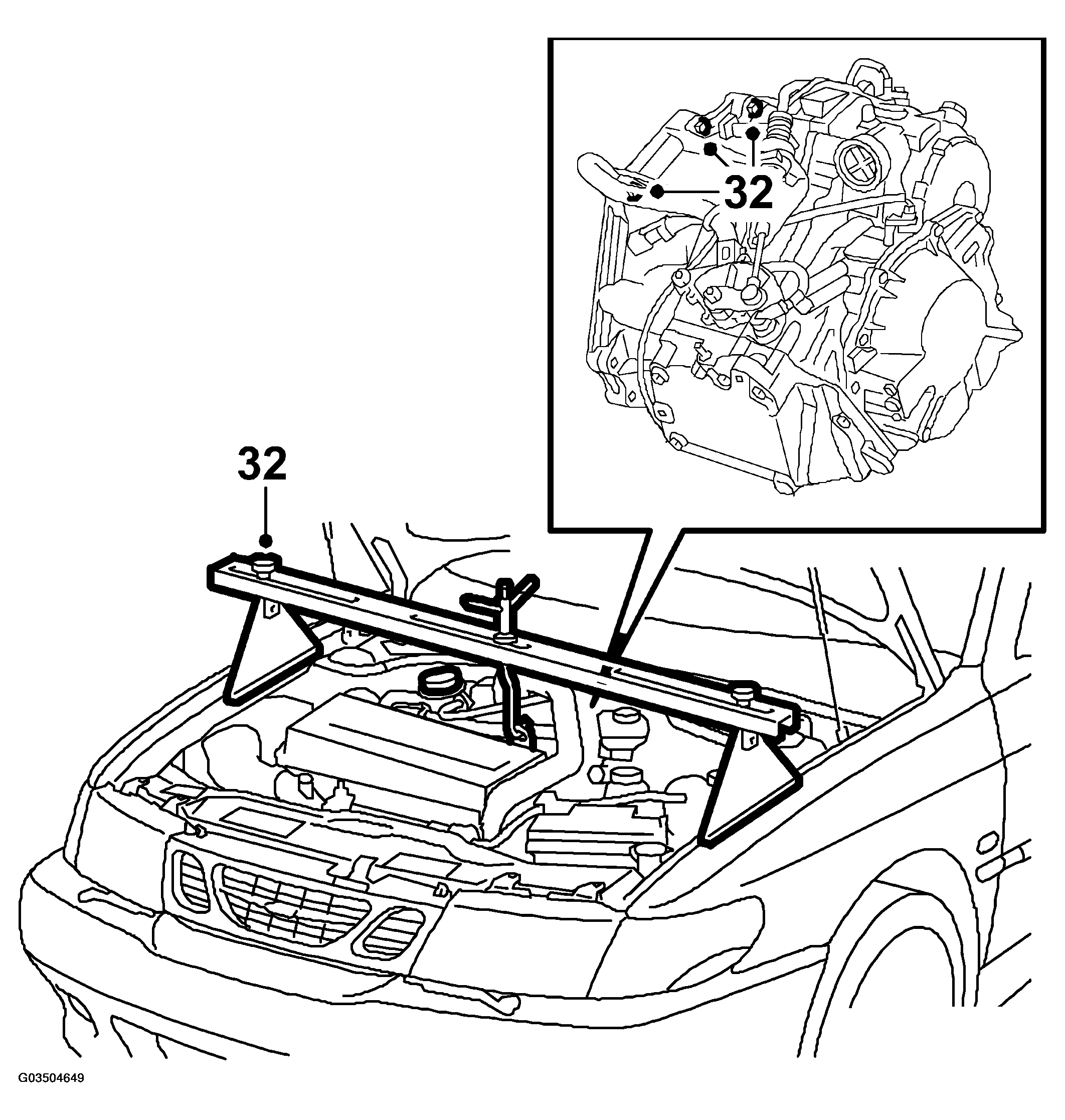

39. Mount the shifting cable on the selector lever.
40. Fit the cover over the intake manifold, alternatively the resonator, with hoses and mass air flow sensor.
41. Check the positions of the selector lever and adjust if necessary, see SELECTOR LEVER .

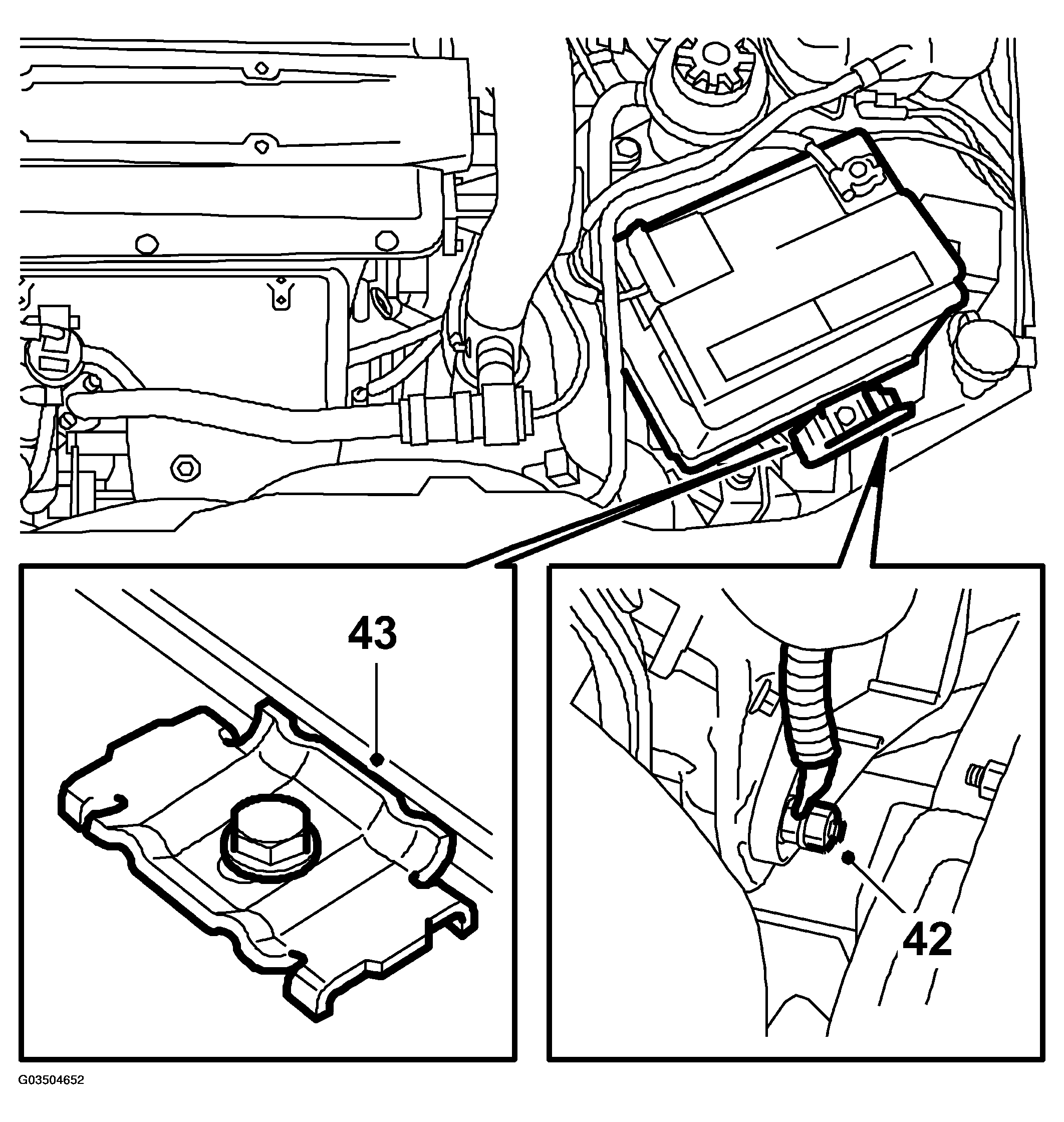

42. Connect the battery negative cable to the grounding point on the gearbox.
    Fig 17: Illustration For Steps 42 & 43

    Courtesy of SAAB-SCANIA OF AMERICA, INC.
43. Fit the battery.
44. Fill with Texaco Texamatic DEXRON III (7045 EU, TL1863 US) mineral based fluid to the correct level.
45. Test drive the car at varying loads and engine speeds, and read any diagnostic trouble codes. Also, check the position of the steering wheel when driving straight ahead on a level road. Adjust if necessary.
