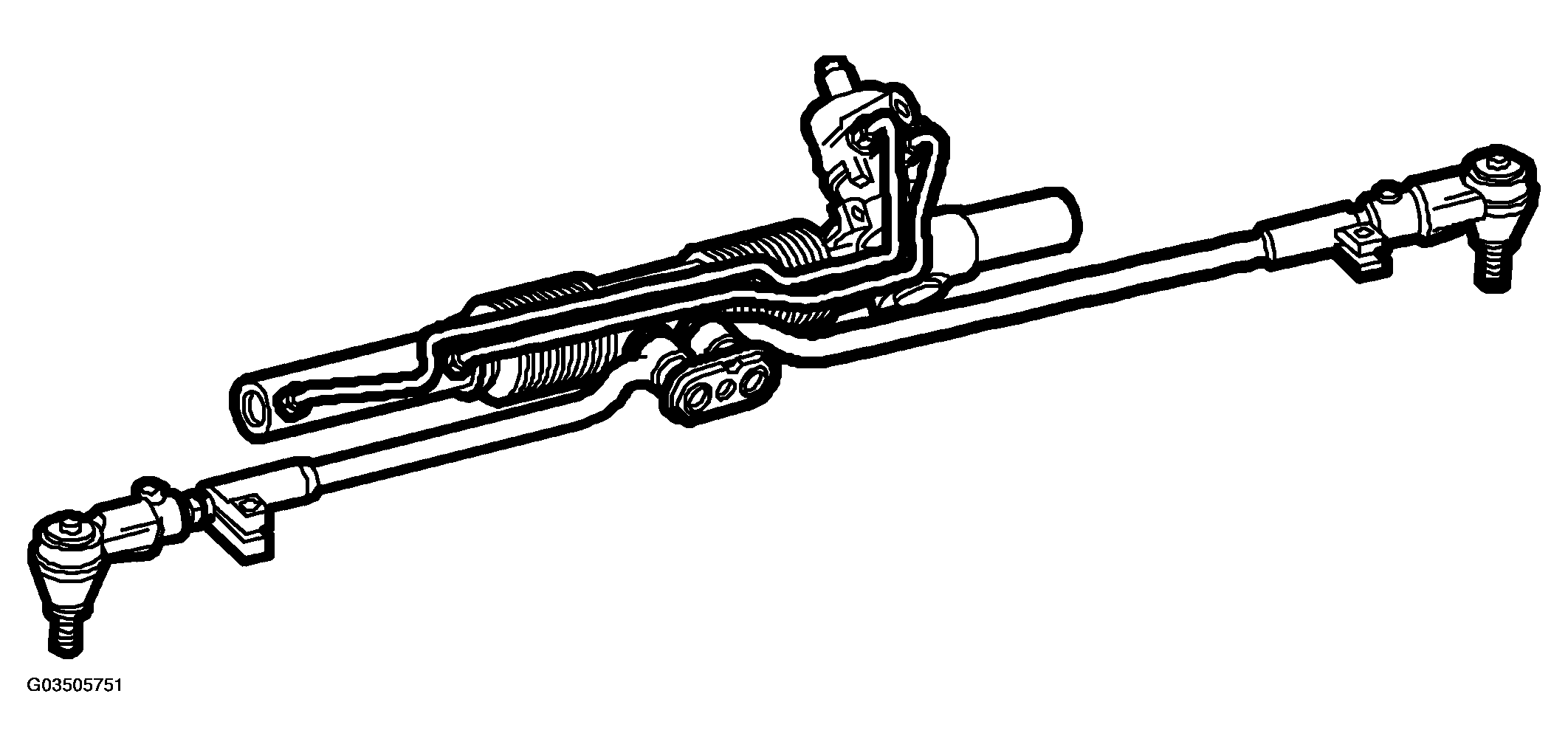

Steering system
TECHNICAL DATA - POWER STEERING SYSTEM
| Steering wheel revolutions, lock to lock | 3.0 US/CA: Car with 16" wheels factory fitted: 2.9 |
| Turning diameter between curbs | 10.7 m US/CA: Car with 16" wheels factory fitted: 11.1 m |
| Turning diameter between walls | 11.3 m US/CA: Car with 16" wheels factory fitted: 11.8 m |
| Plunger, adjustment | Screw the plunger to the bottom and then back 35°--50 °. Make sure the rack does not jam in any position. |
NOTE:
There must not be any visible play in the steering link with unladen steering assembly.
