Technical data: Lubricants

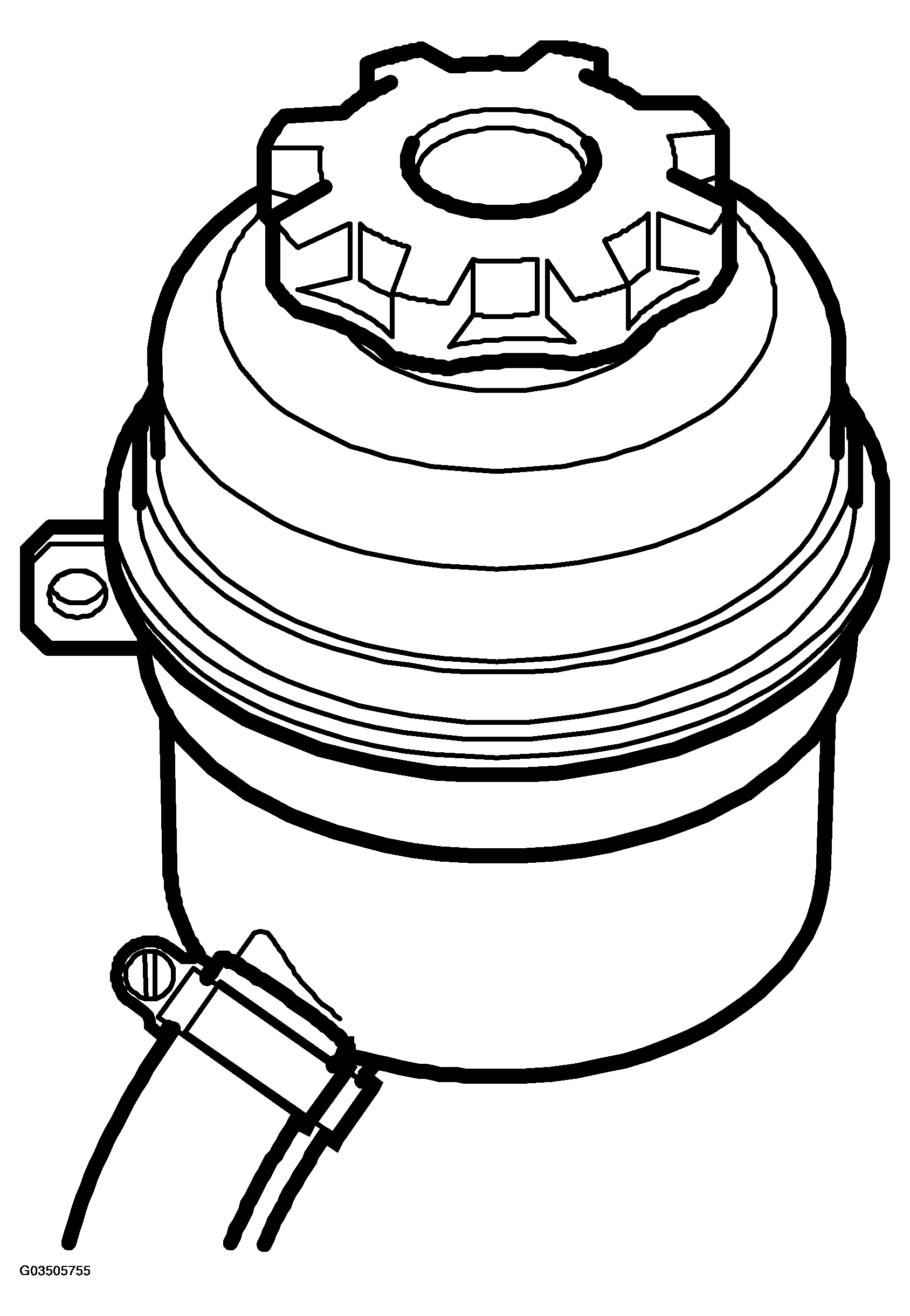

Fig 1: View Of Power Steering Fluid Reservoir
G03505755Courtesy of SAAB-SCANIA OF AMERICA, INC.
POWER STEERING LUBRICANT SPECIFICATIONS

Steering gear lubricant, type   Lithium base grease Shell EP B2 Code 71303, Shell Retinax A or equivalent
Steering gear lubricant, qty g (oz) 60 (2.1)
Hydraulic fluid, type   CHF 11S part no. 30 32 380
Hydraulic fluid, volume cl (qts) 100 (1.05)
