Anti-roll bar

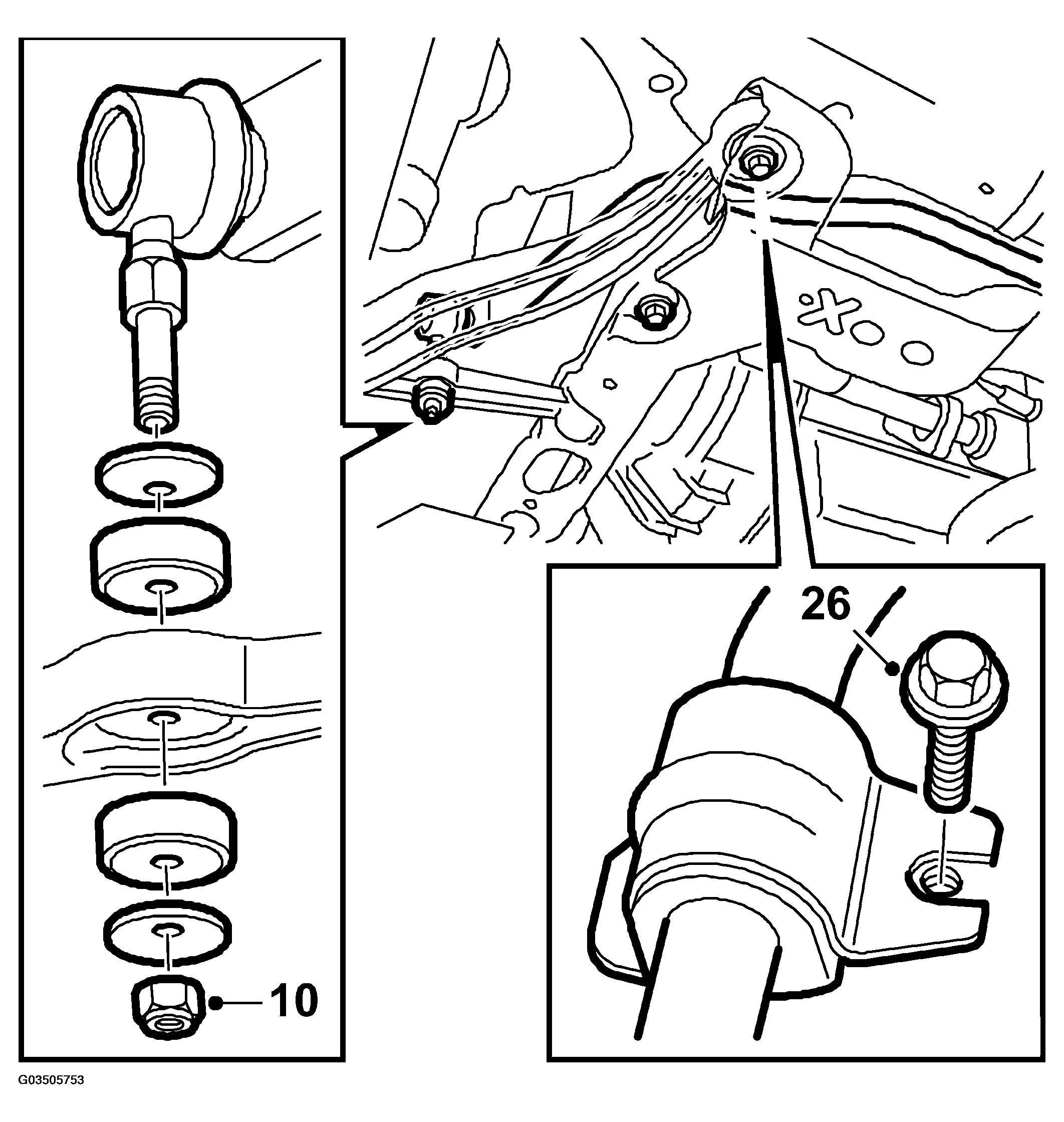

Fig 1: Illustration For Torque Specifications - Anti-Roll Bar
G03505753Courtesy of SAAB-SCANIA OF AMERICA, INC.
TECHNICAL DATA - ANTI-ROLL BAR

Lower link nut N.m (lbf ft) 10 (7.4)
Anti-roll bar mounting in subframe N.m (lbf ft) 26 (19)
Anti-roll bar lubricant, type   Molykote 33 Medium, part no. 30 20 476
