Power steering pump, diesel engine

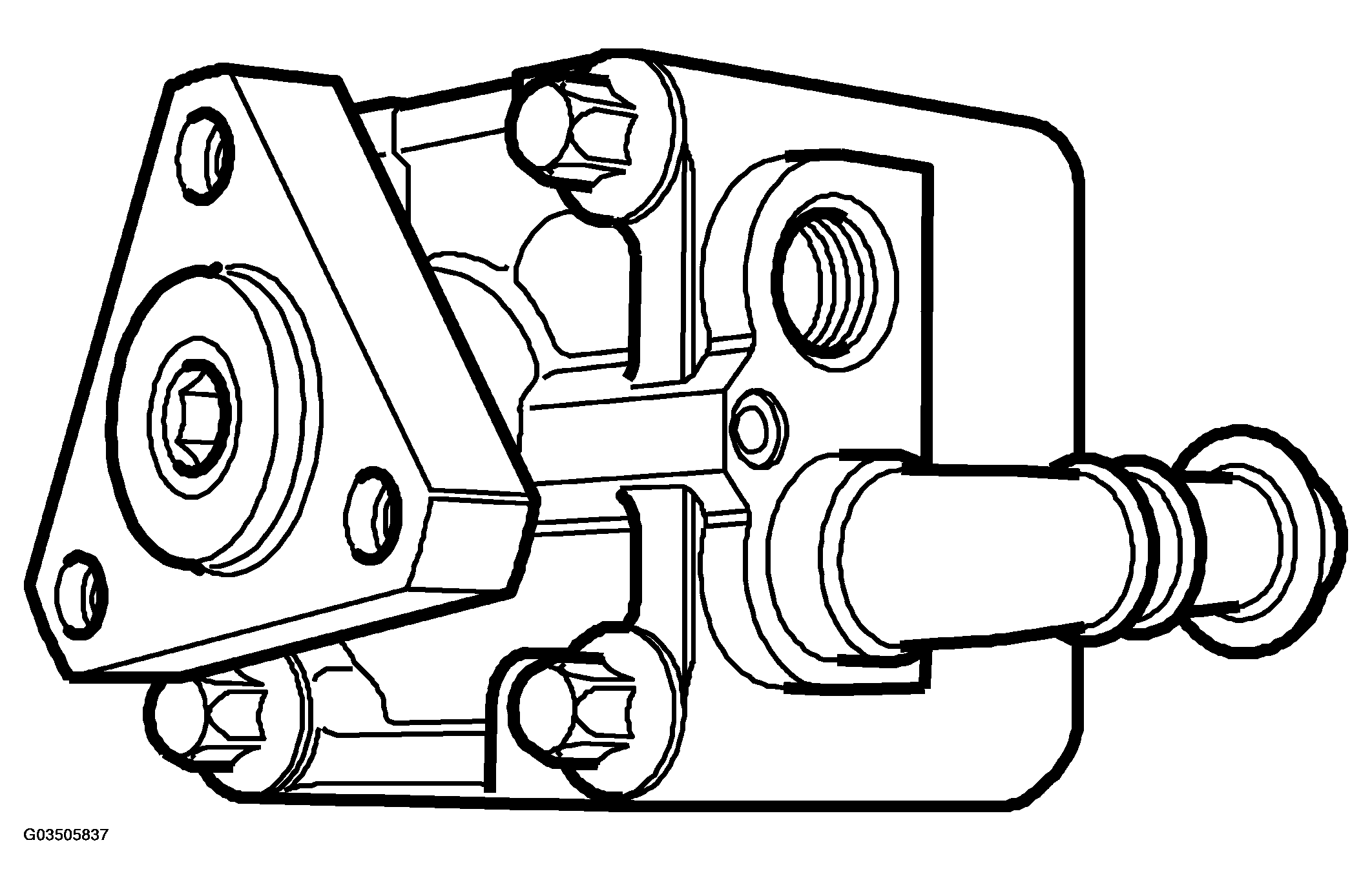

Fig 1: View Of Power Steering Pump (Diesel Engine)
G03505837Courtesy of SAAB-SCANIA OF AMERICA, INC.
POWER STEERING PUMP SPECIFICATIONS (DIESEL ENGINE)

Make   ZF CP1
Type   Vane
Max. pressure MPa (bar) 10 (100)
Max. flow l/min 6.0
