Home >> Saab >> 2001 >> 9-3 Base, 4D Hatchback, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T7 Fuel Control System >> Component Location >> Connector H10-19

Connector H10-19

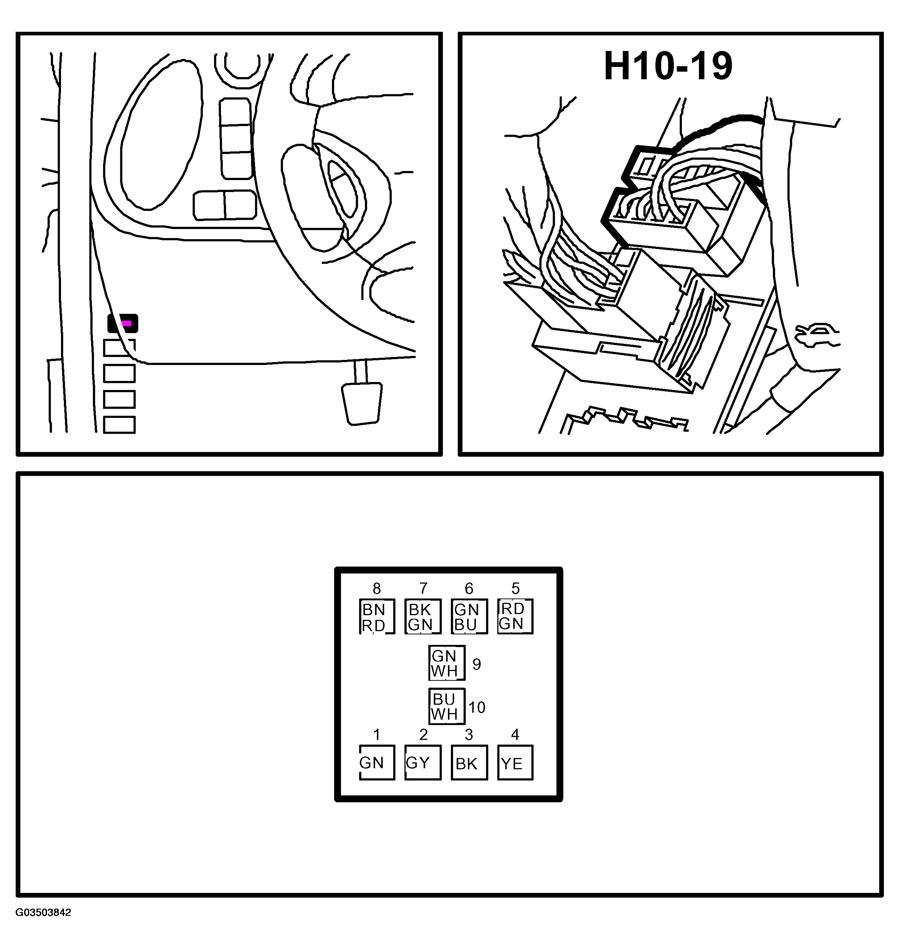

Fig 1: Identifying Connector H10-19
G03503842Courtesy of SAAB-SCANIA OF AMERICA, INC.
