To fit

  1. Position the switch.

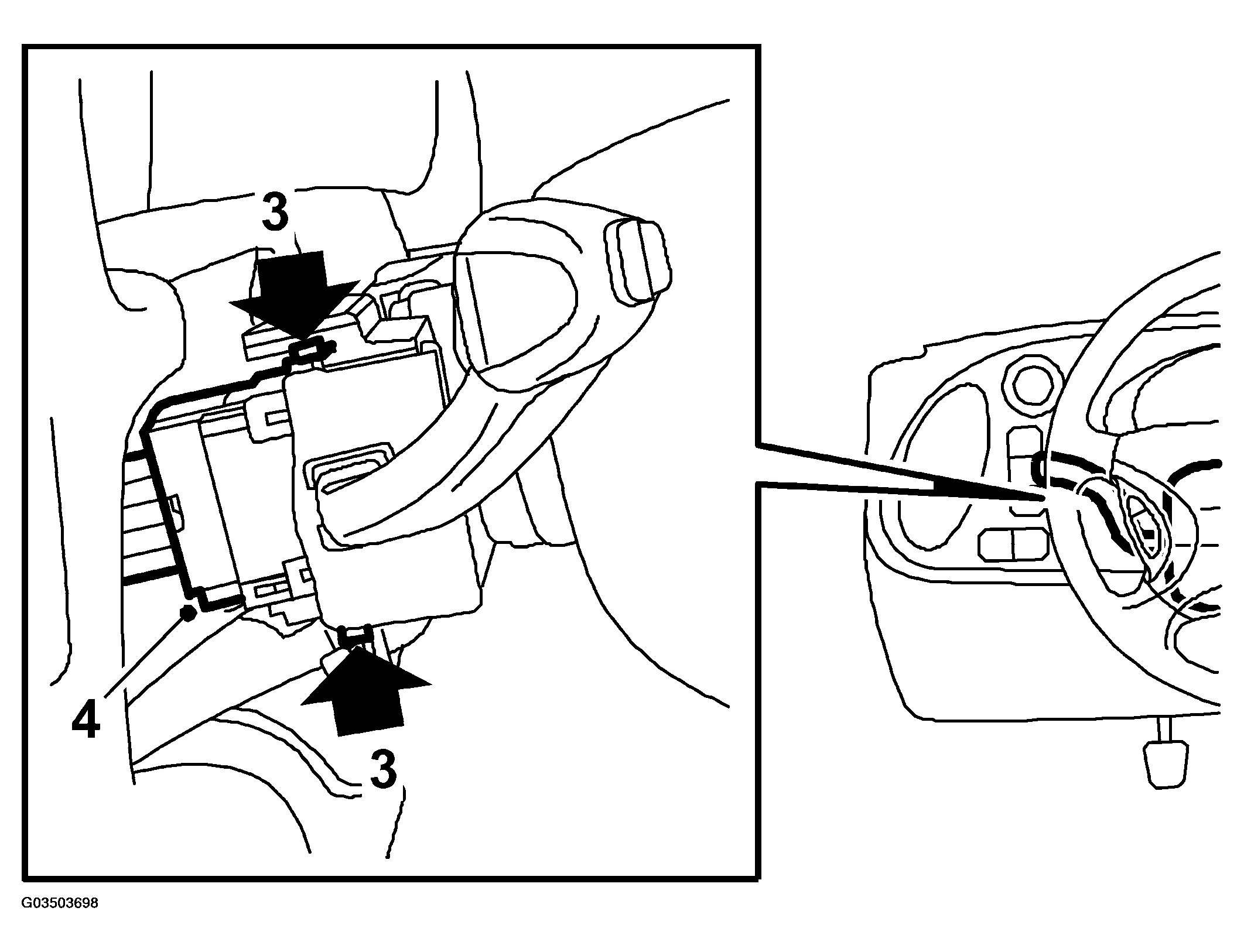

    Fig 1: Illustration For Step 1-2
    G03503698Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Spray the connector with Kontakt 61 (part no. 30 04 520) and plug it in.
  3. Fit the covers. Pay attention to the 4 catches in the lower cover.
    Fig 2: Illustration For Step 3
    G03503696Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Adjust the cover on the steering column bearing bracket and tighten it.
  5. Readjust the steering wheel.
