Home >> Saab >> 2001 >> 9-3 Base, 4D Hatchback, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T7 Fuel Control System >> Adjustment - Replacement >> Main relay >> To fit

To fit

  1. Spray the connectors in the relay holder with Kontakt 61 (part no. 30 04 520) and fit the relay.
  2. Tilt up the relay holder and fit the screw.

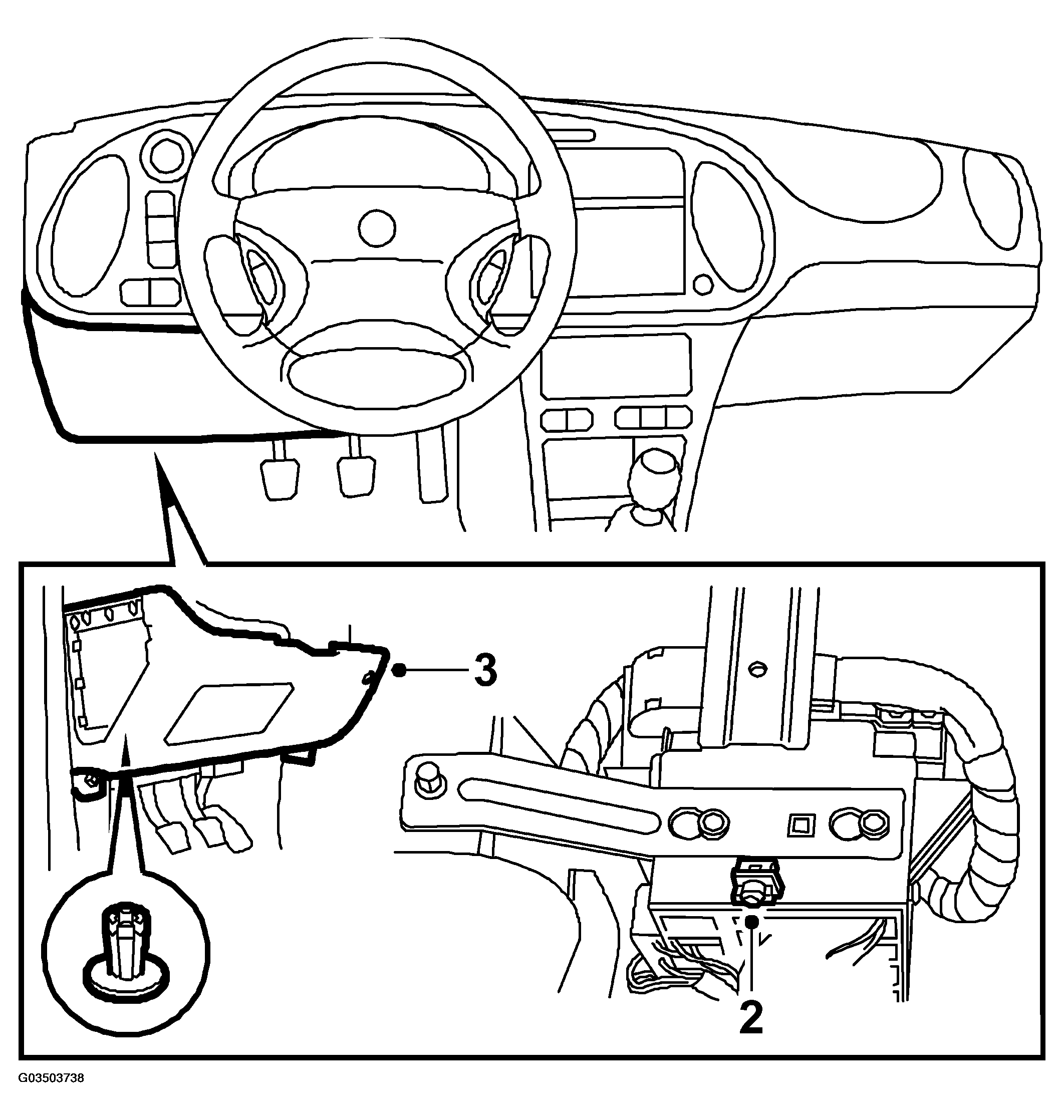

    Fig 1: Illustration For Step 2-3
    G03503738Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the cover on the knee protection.
