Charge Air Bypass Valve

Disconnect vacuum hose from charge air bypass valve. Apply vacuum to charge air bypass valve. See Fig 1 . Vacuum should hold. Remove charge air bypass valve. With vacuum applied, apply air pressure to turbocharger side of charge air bypass valve. Air should flow through valve.

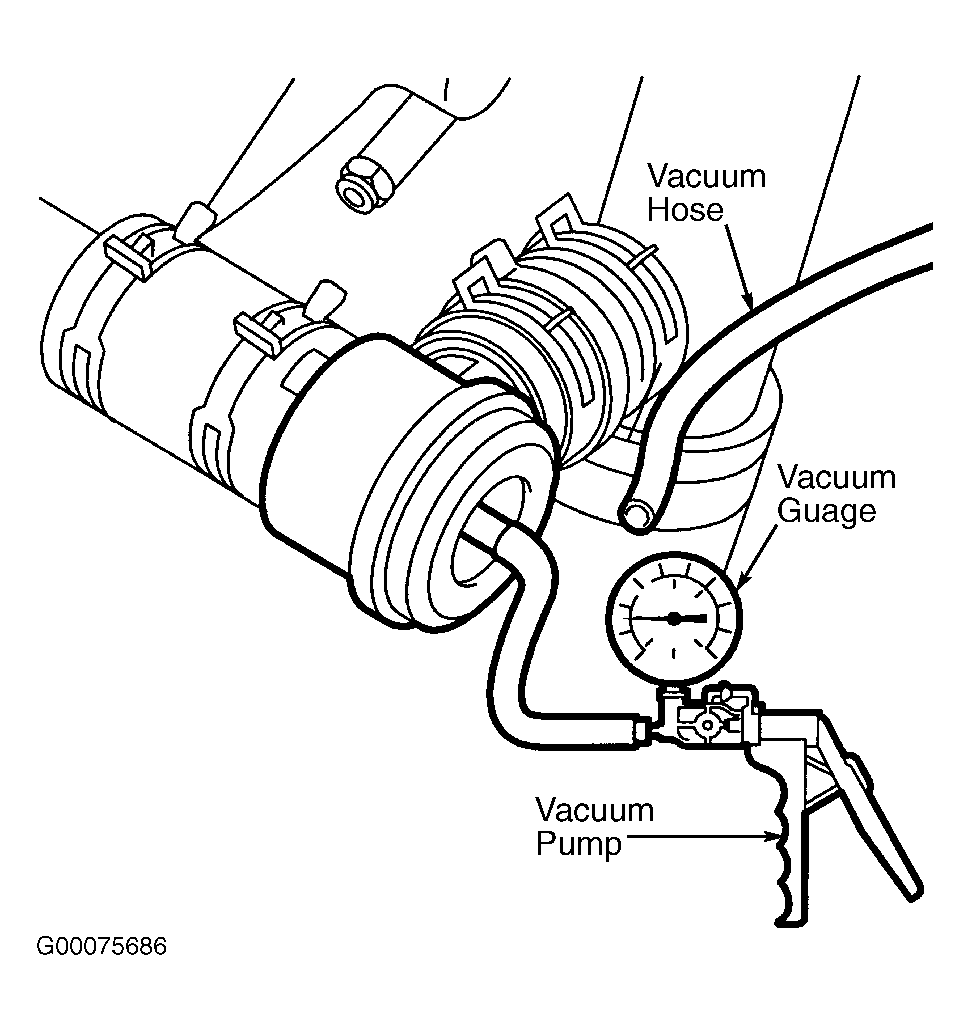

Fig 1: Testing Charge Air Bypass Valve (All Models)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
