To Remove

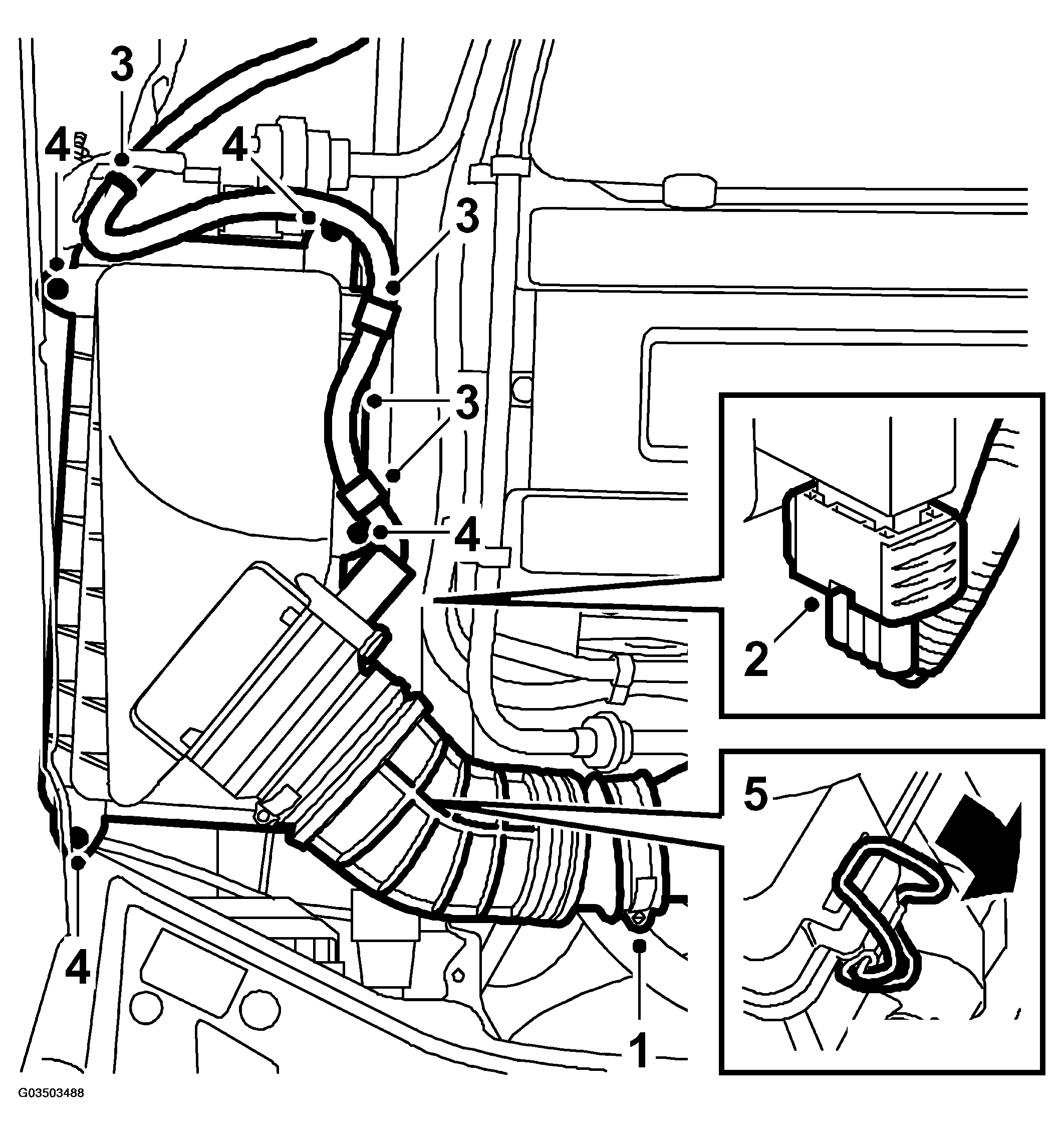

Fig 1: Illustration For Steps 1-2-3-4-5
G03503488
  1. Remove the hose clip between the connecting hose and the turbo intake pipe.
  2. Unplug the connector from the mass air flow sensor.
  3. Detach the mass air flow sensor's lead from the cable clamps on the air collector casing's cover.
  4. Remove the air collector casing's cover by releasing the overcenter catches and undoing the 4 screws.
  5. Lift off the air collector casing's cover.
  6. Undo the clip to detach the hose from the mass air flow sensor.

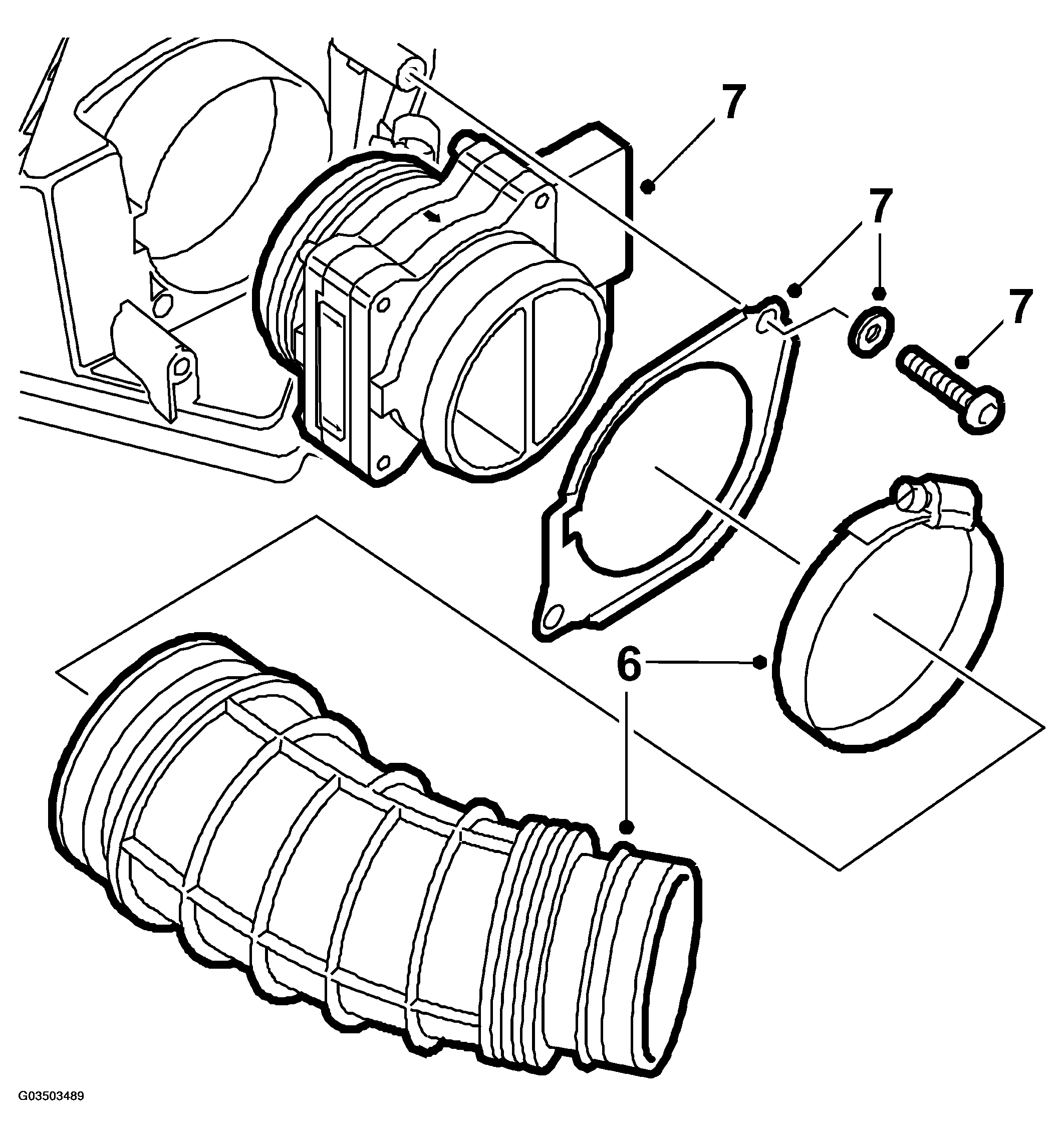

    Fig 2: Illustration For Steps 6-7
    G03503489
  7. Remove the mass air flow sensor, 2 screws.
