Timing Cover And End Plate

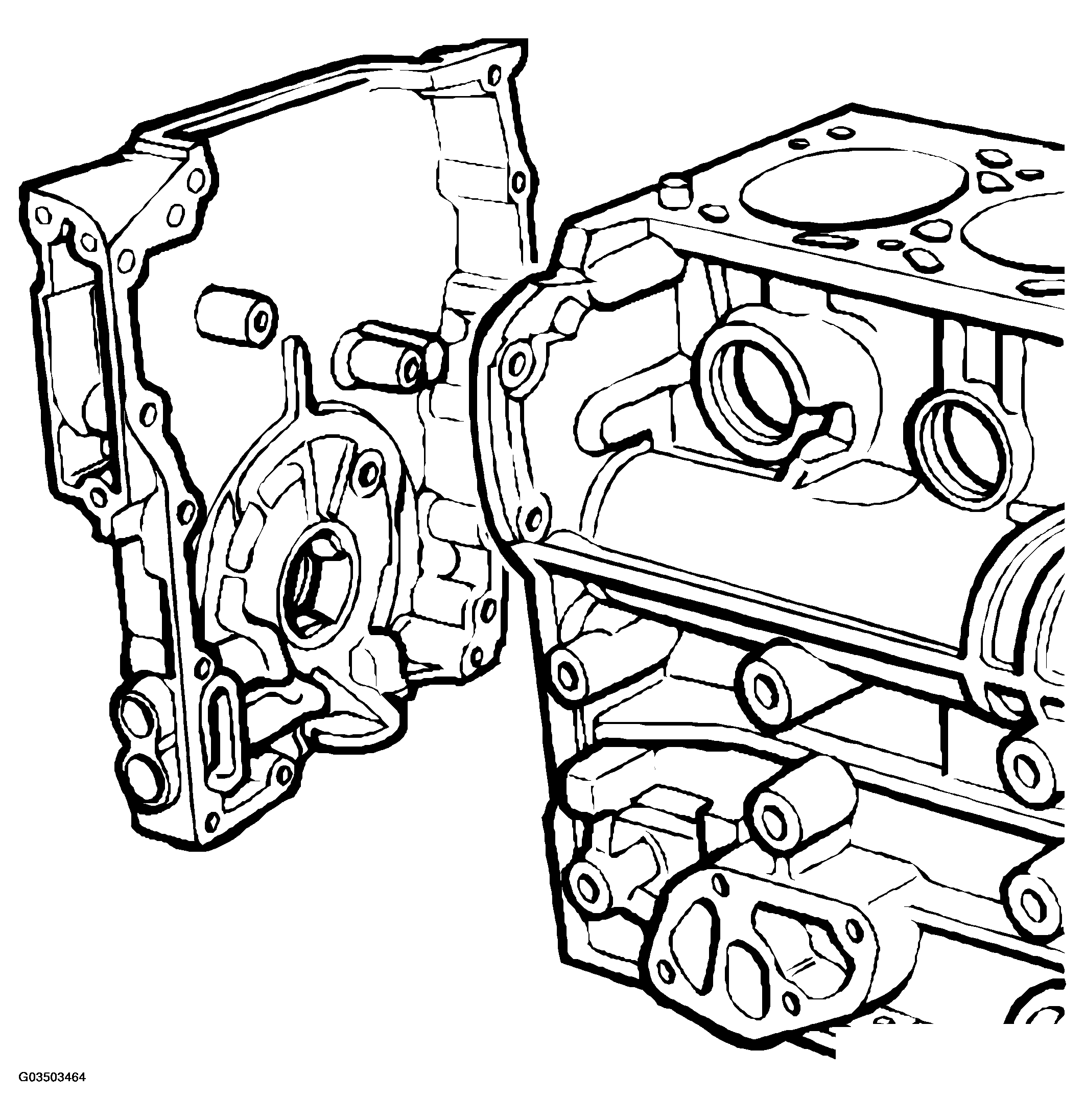

Fig 1: View Of Timing Cover And End Plate
G03503464

The timing cover and the end plate are both designed to fit the form of the cylinder block. The oil pump is mounted inside the timing cover. The timing cover and the end plate are both sealed against the block with flange sealant, part no. 93 21 795.
