Oil Pressures

OIL PRESSURES SPECIFICATIONS

Oil pump pressure -reducing valve opens at bar 3.8
Warning lamp comes on when oil pressure is below bar 0.3 - 0.55
B235, B205: Oil pressure at 2000 rpm with warm engine (105+/-2°C/221+/-4°F) and 10W30 oil, minimum bar 2.5
End float between oil pump rotor and housing mm 0.03 - 0.08
Engine oil cooler thermostat opens at °C (°F) 105 +/-2 (221 +/-35.6)

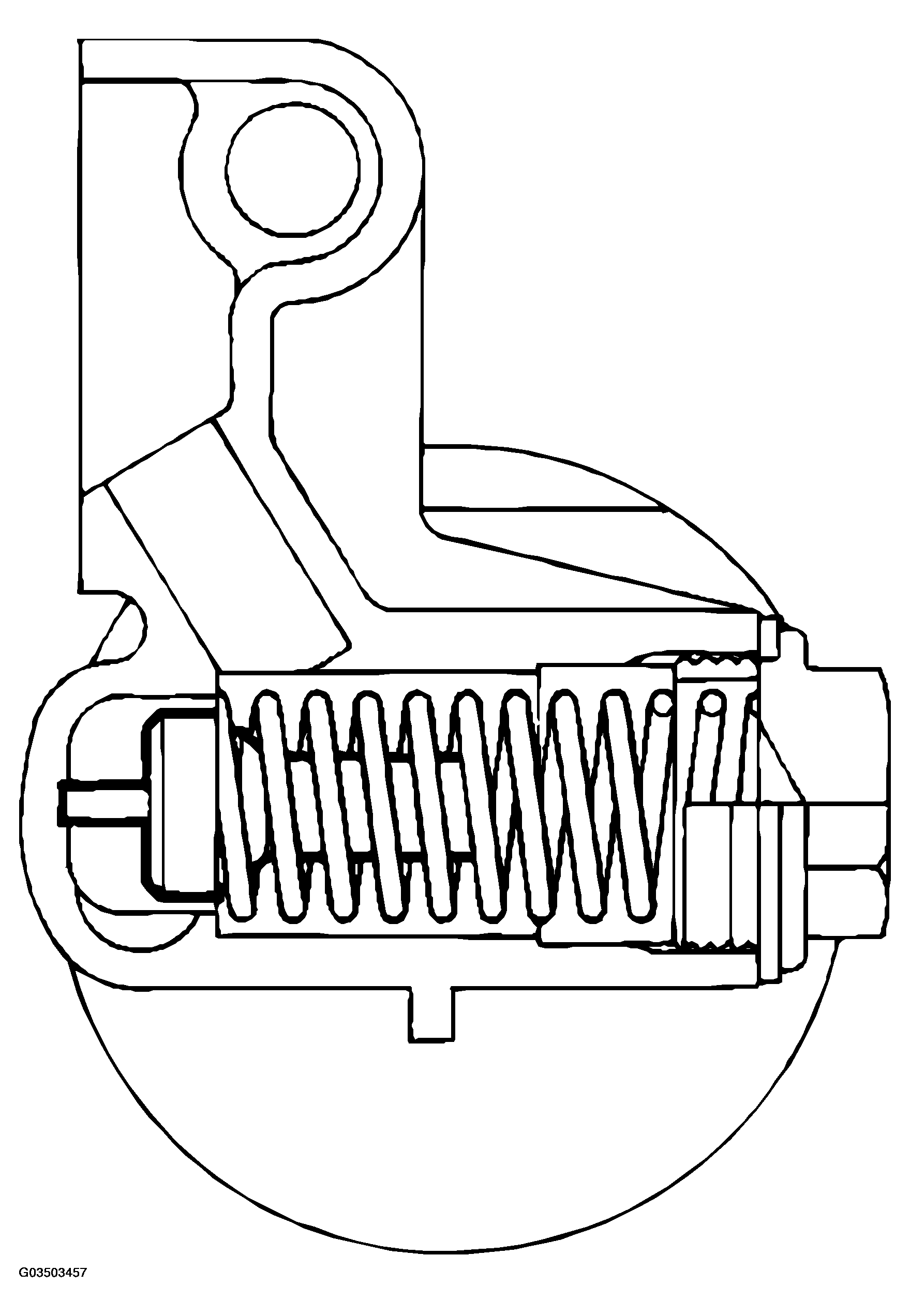

Fig 1: [Identifying Spring Arrangement]
G03503457
