To Remove

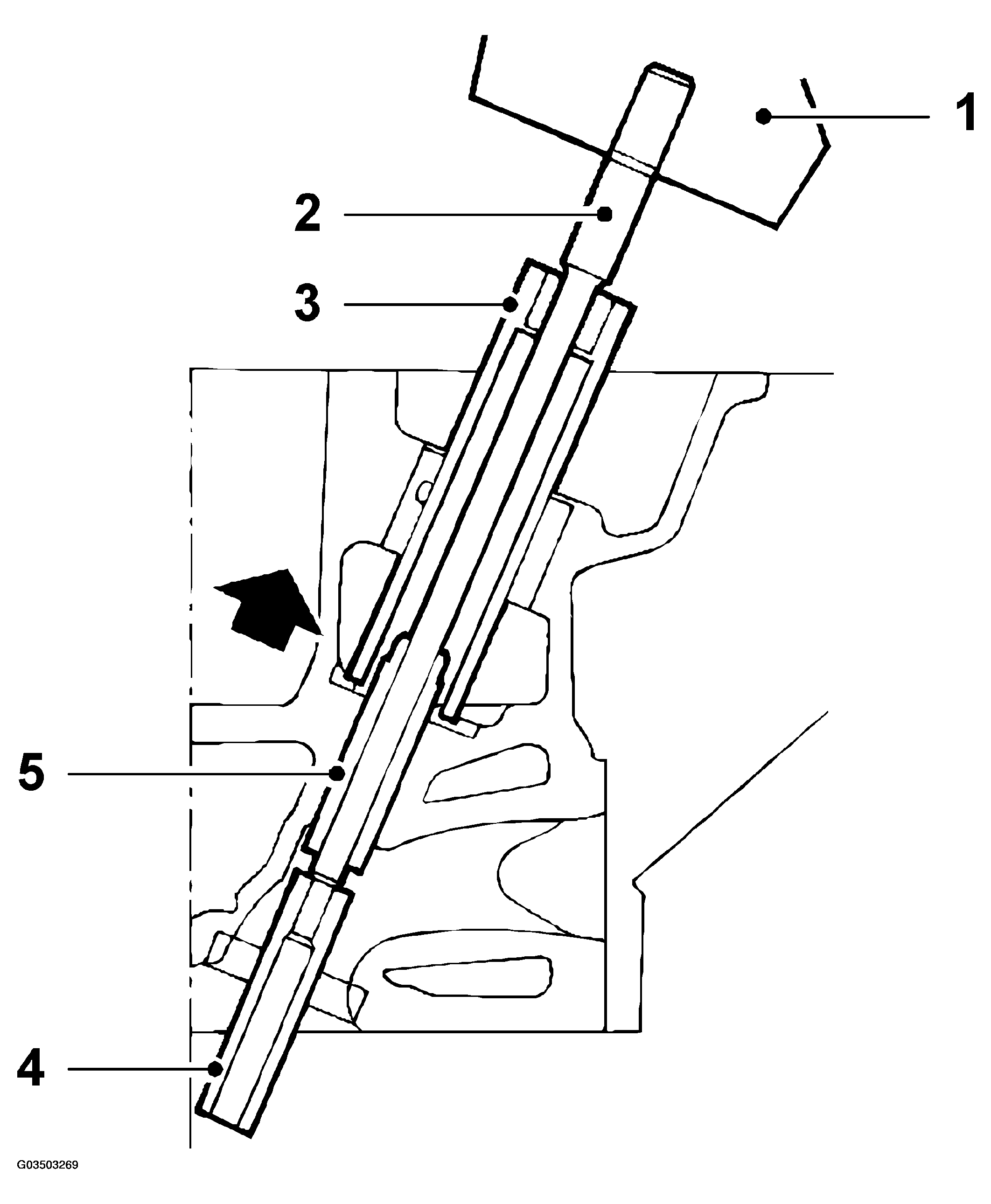

Fig 1: Illustration For Steps 1-2-3-4-5
G03503269

(from the cam side)

Pull out the valve guides in the direction of the arrow with (1) press, part no. 83 90 494, (2) pull rod, part no. 83 93 811, (3) spacer sleeve, part no. 83 93 829, and (4) nut, part no. 83 93 845. The valve guide is no. (5).
