To Remove

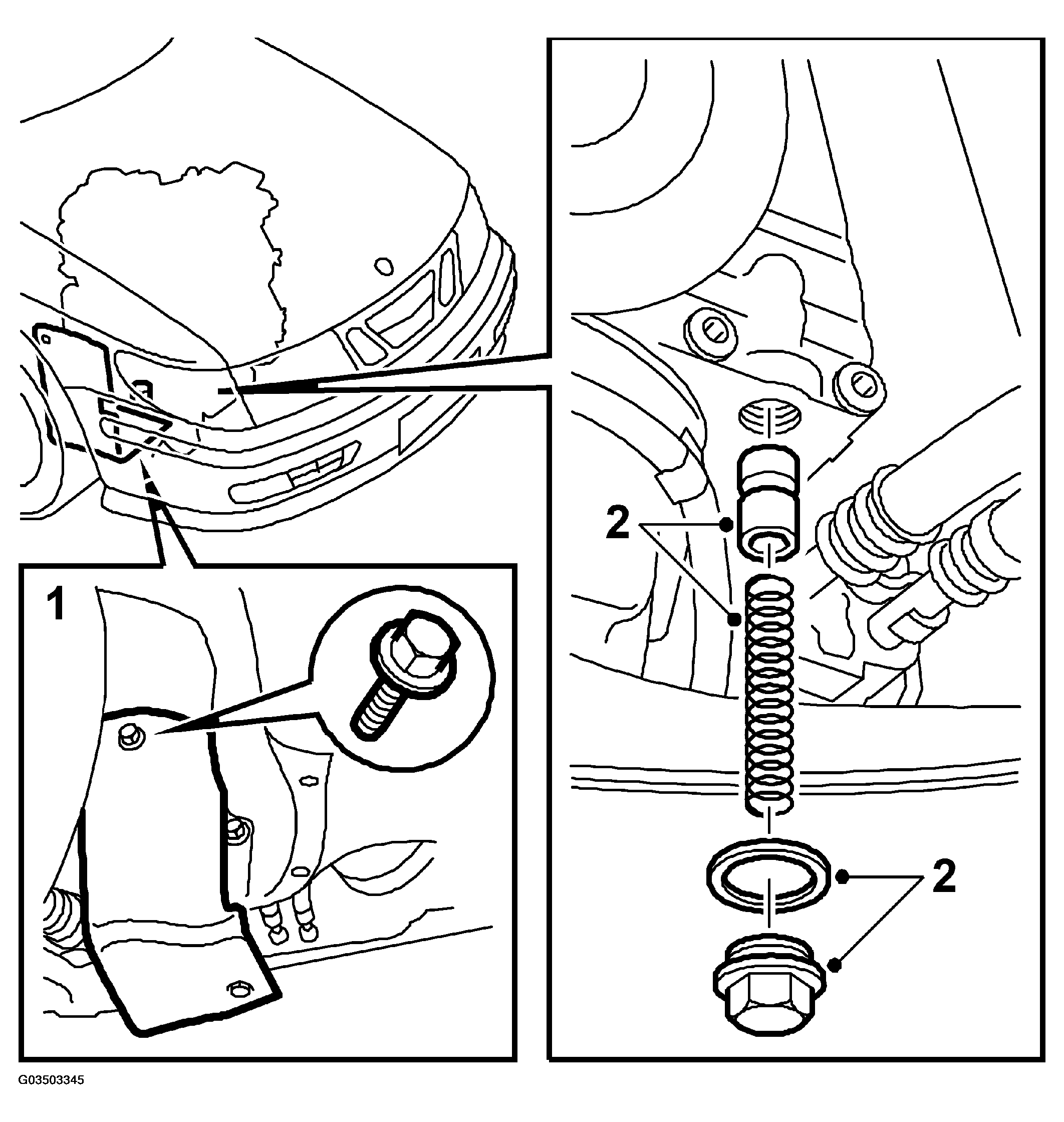

Fig 1: Illustration For Steps 1-2
G03503345
  1. Raise the car and remove the cover.
  2. Unscrew the plug and extract the spring and reducing valve.
