Starter motor for petrol engine: Notes

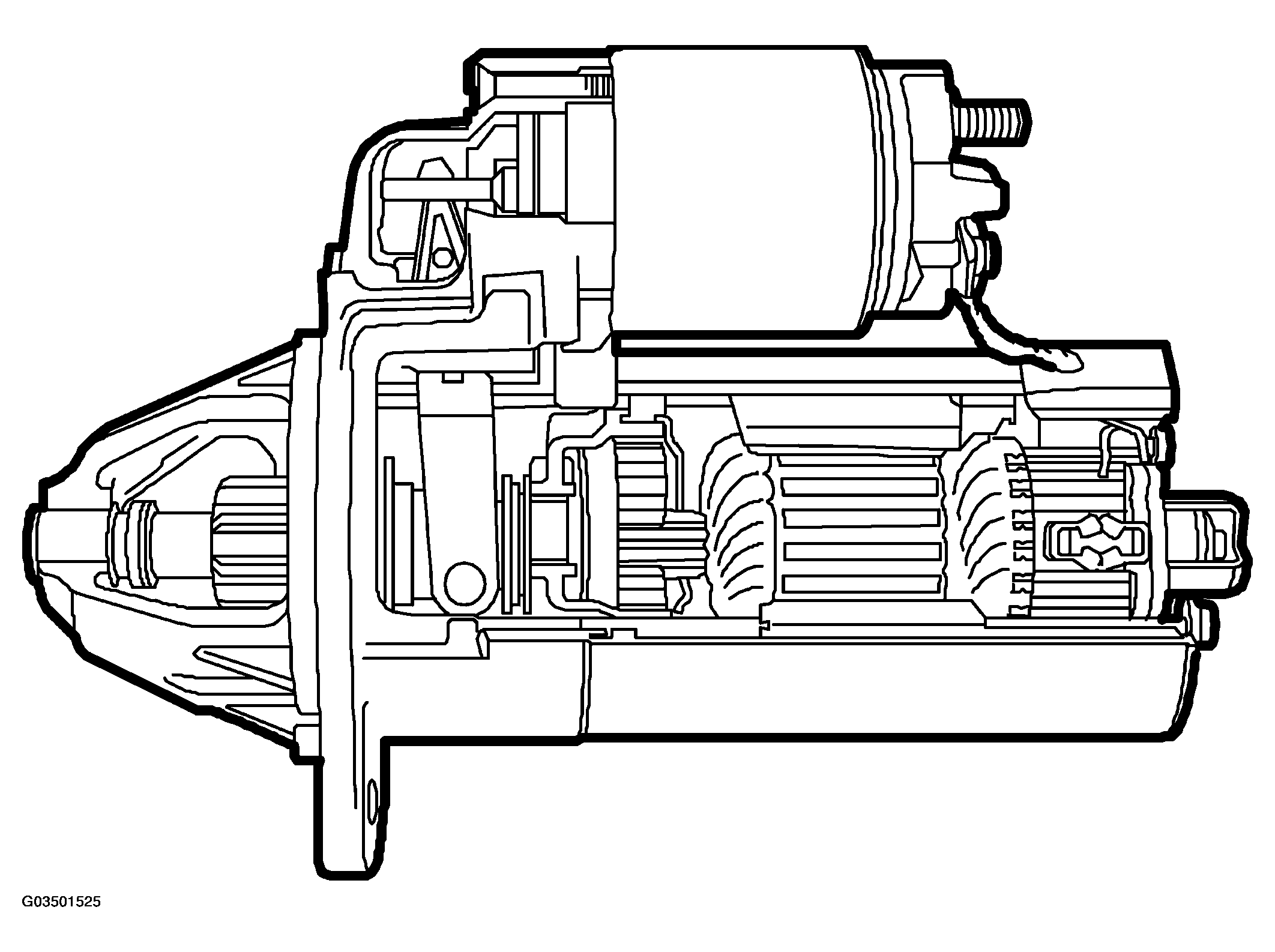

Fig 1: Cross Sectional View Of Petrol Engine Starter Motor
G03501525
PETROL ENGINE STARTER MOTOR SPECIFICATIONS

Type designation Bosch DW 12V 0 001 108 151
Rating 1.4 kW
No. of teeth on starter motor pinion 9
Number of teeth on ring gear 135
Ratio engine/starter motor 15:1
