Components Connected

BATTERY GROUNDING COMPONENT CONNECTION SPECIFICATIONS (G25)

1 Battery

The redundancy ground from the front left wheel housing is also connected.

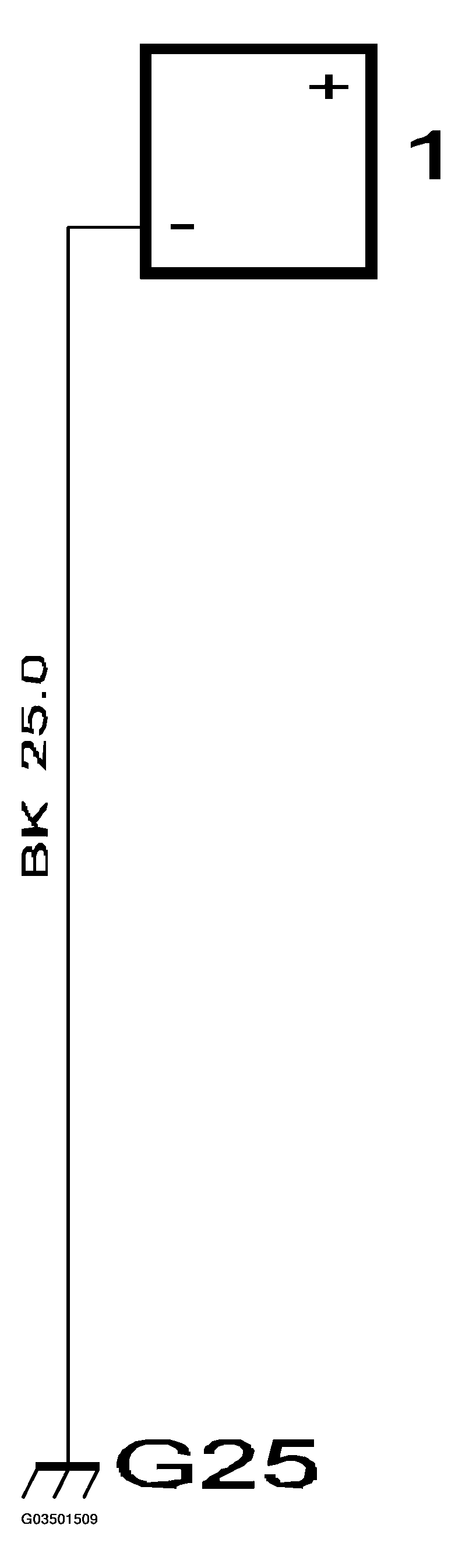

Fig 1: Battery Grounding Connection Diagram (G25)
G03501509
