Integral Fans

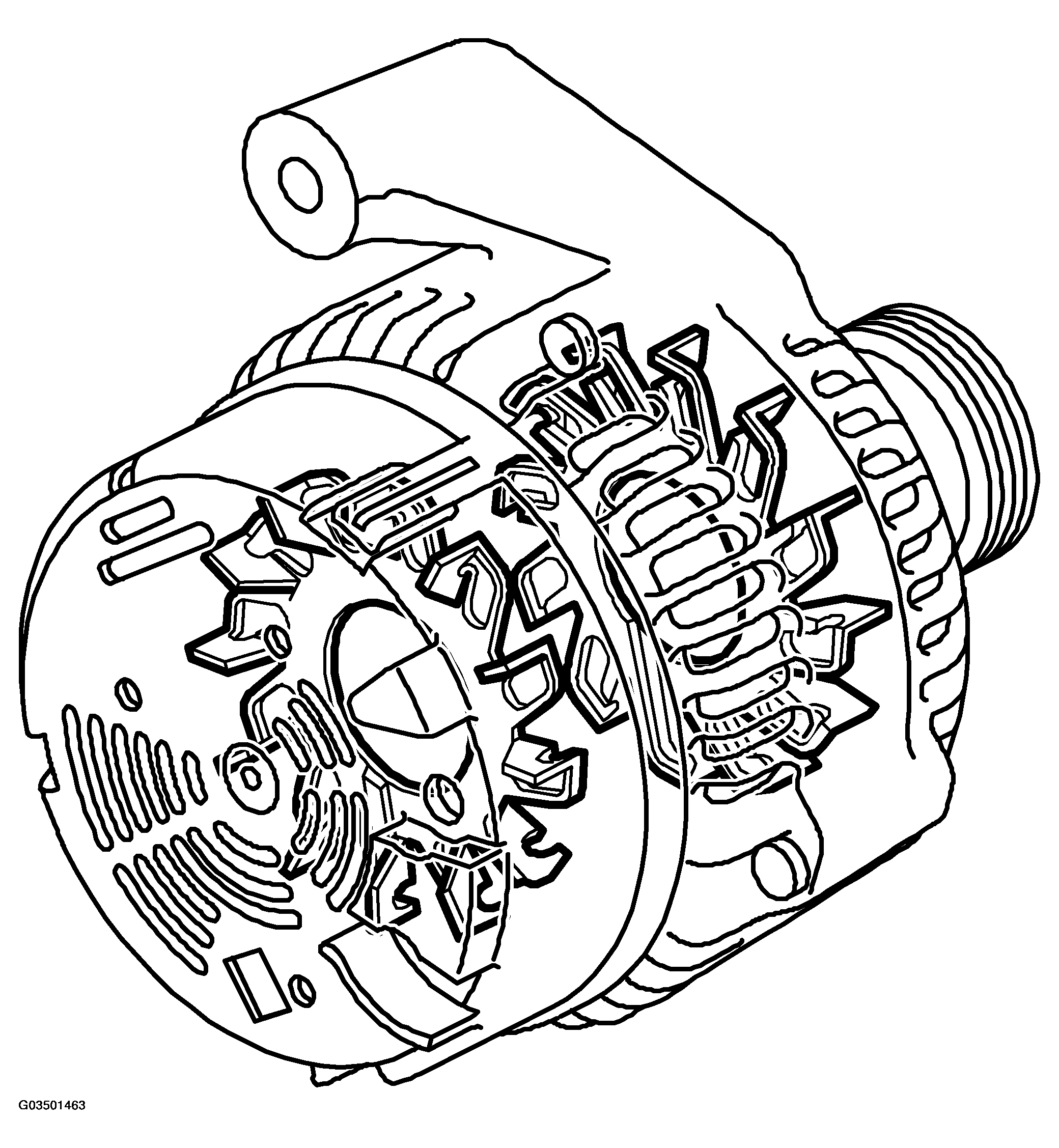

Fig 1: Identifying Generator Components (3 Of 5)
G03501463

Heat that builds up in the generator while it is running can eventually cause damage. To dissipate it, the generator has two integral fans, powered from the rotor shaft.
