Wheel hub

The wheel hub features axle-free wheel bearings. The wheel bearings are of double-row, angular-contact type, and being permanently lubricated are therefore maintenance free. Bearings cannot be replaced individually. The hub is of lightweight design and centred directly on the bearing.

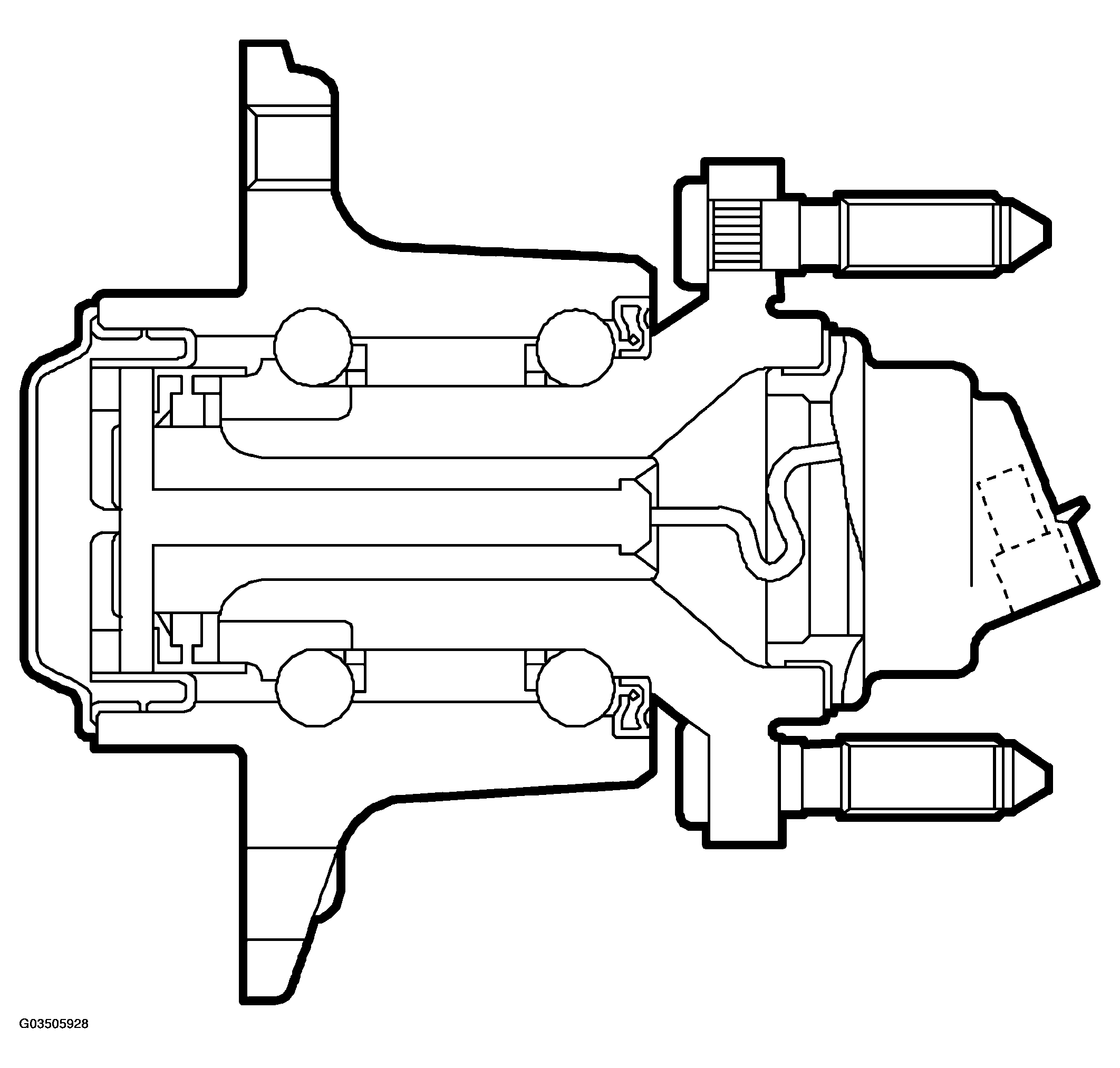

Fig 1: Identifying ABS Sensor
G03505928Courtesy of SAAB-SCANIA OF AMERICA, INC.

An ABS sensor is incorporated in the bearing.
