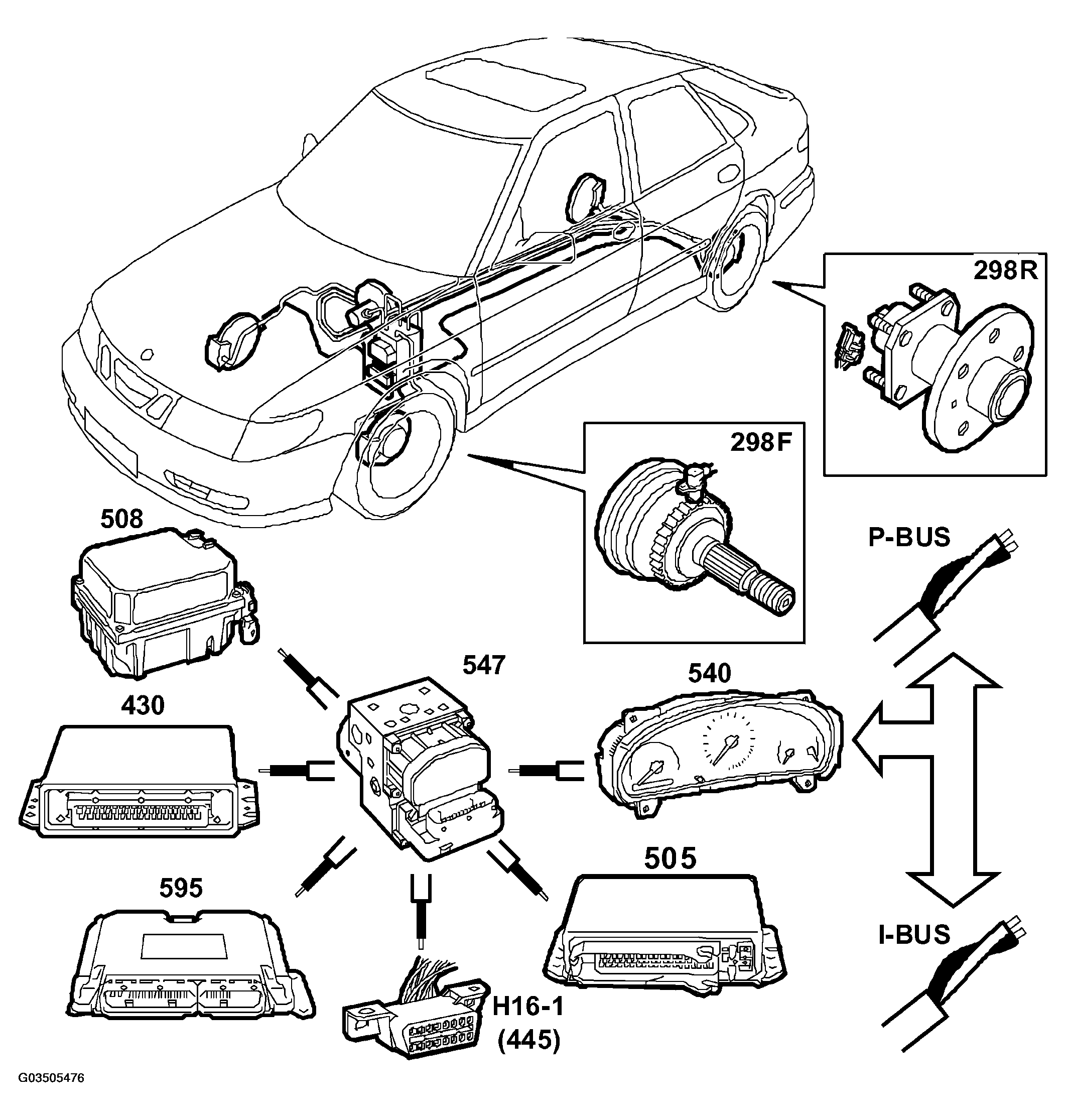

ABS 5.4: System overview
- Wheel sensors, rear (298R)
- Wheel sensors, front (298F)
- Hydraulic unit, complete with control module, valve block and return pump (547)
- Control module, Saab Trionic (430)
- Control module, Saab Motronic 2.10.3 (505)
- Control module, EDC 15 (595)
- Cruise control unit (508)
- Control module, Sensonic (509)
- Main instrument unit, MIU (540)
- Data link (445)
