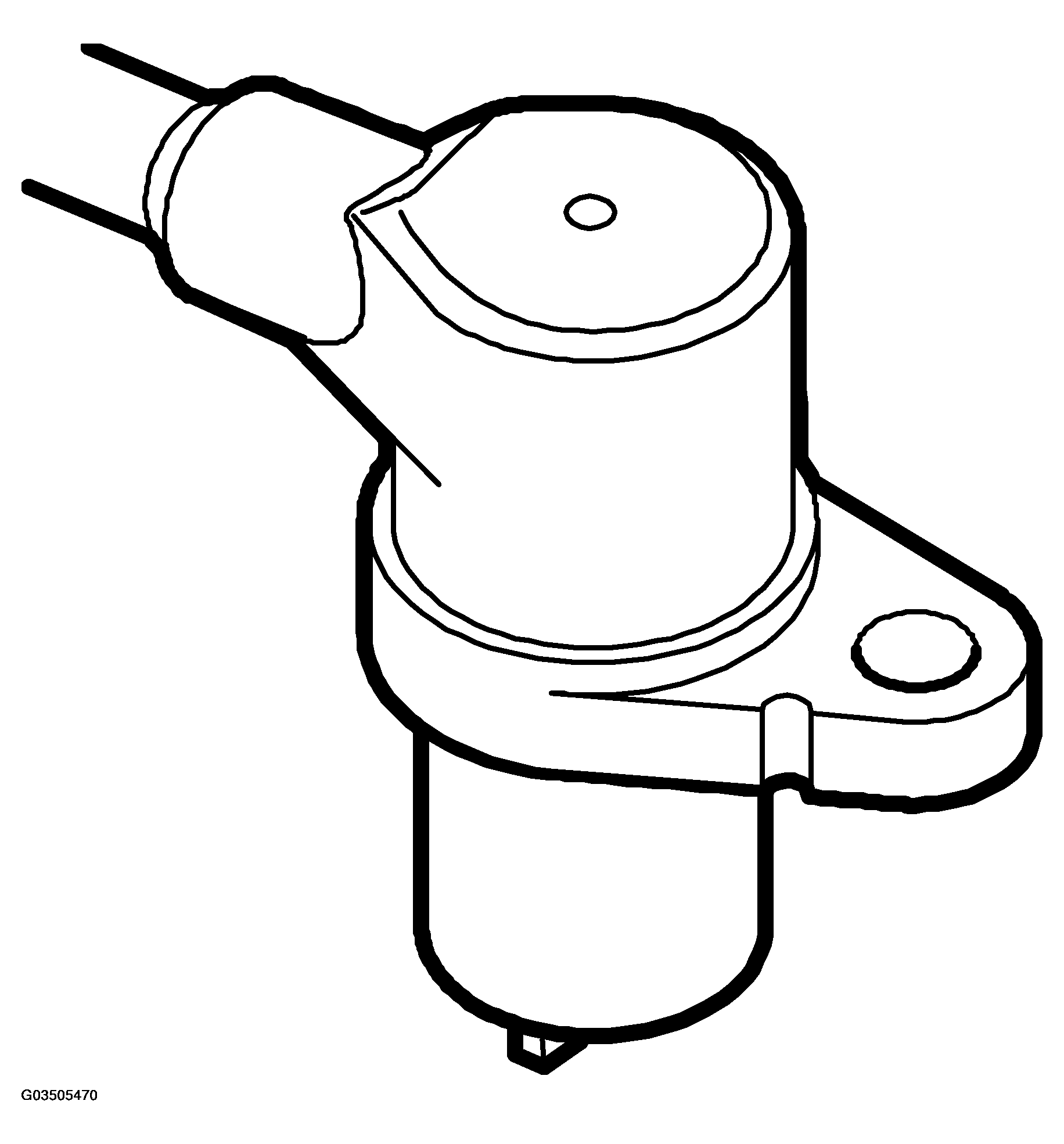

Front-wheel sensors
Courtesy of SAAB-SCANIA OF AMERICA, INC. FRONT-WHEEL SENSORS - TECHNICAL DATA
| Operating voltage, min. |
mVAC |
120 at 2.75 km/h |
| Operating voltage, max. |
VAC |
100 at 280 km/h |
| Resistance |
Ohm |
1600+/-160 at +20°C |
| Number of teeth |
qty |
29 |
| Gap, wheel sensor-toothed wheel |
mm |
0.3--1.3 (non-adjustable) |
