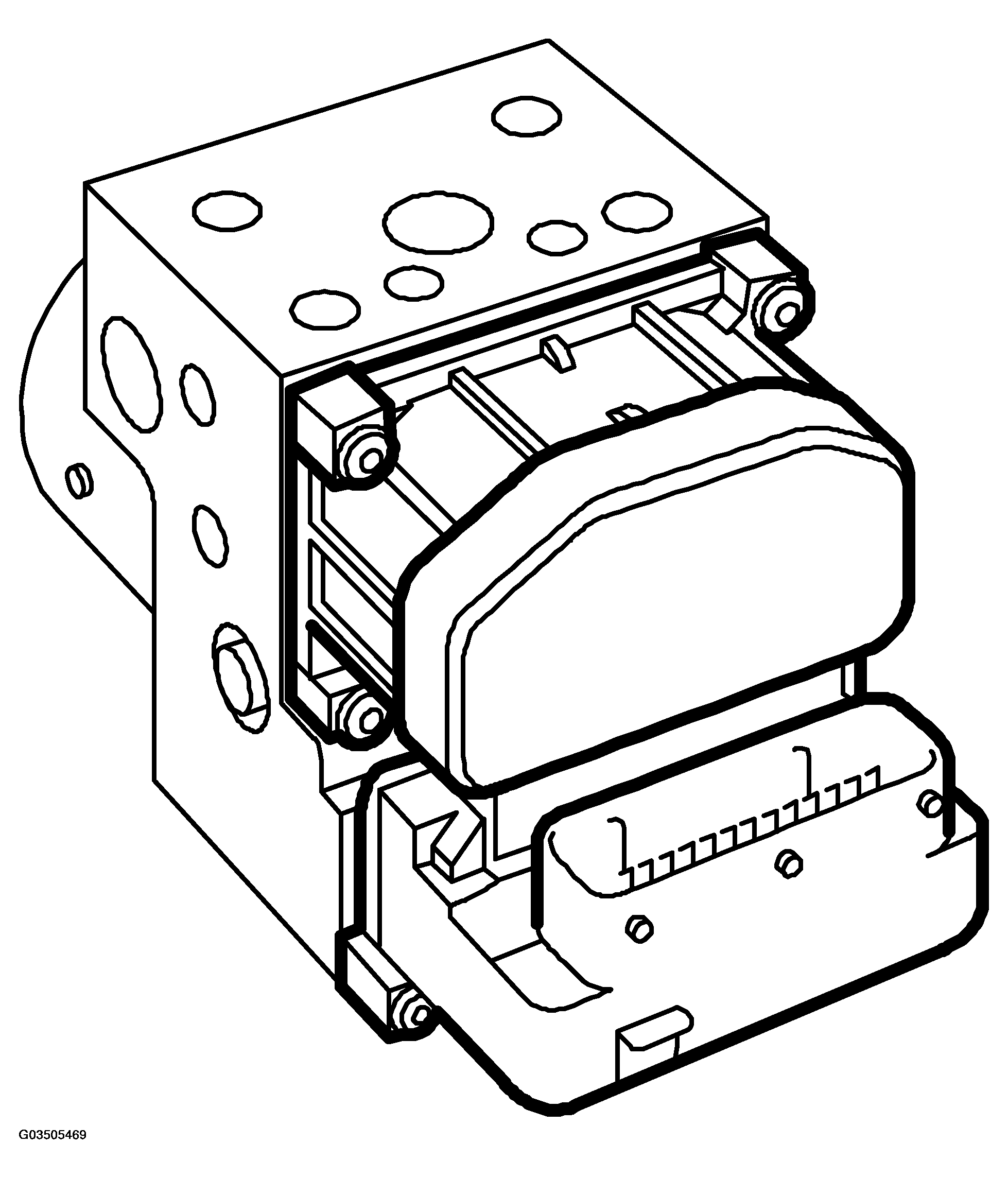

Control module (integrated into hydraulic unit)
Courtesy of SAAB-SCANIA OF AMERICA, INC. CONTROL MODULE - TECHNICAL DATA
| Number of terminal pins |
qty |
26 |
| Power supply, (+30 circuit) |
pin |
17, 18 |
| Power supply (+15 circuit) |
pin |
15 |
| Main ground |
pin |
19 |
| Working voltage |
Volt |
9--16 |
| Power consumption, brakes-off position |
mA |
<3 |
