To remove

  1. Remove the top part of the air cleaner and, if necessary, the mass air flow sensor, and move it aside.

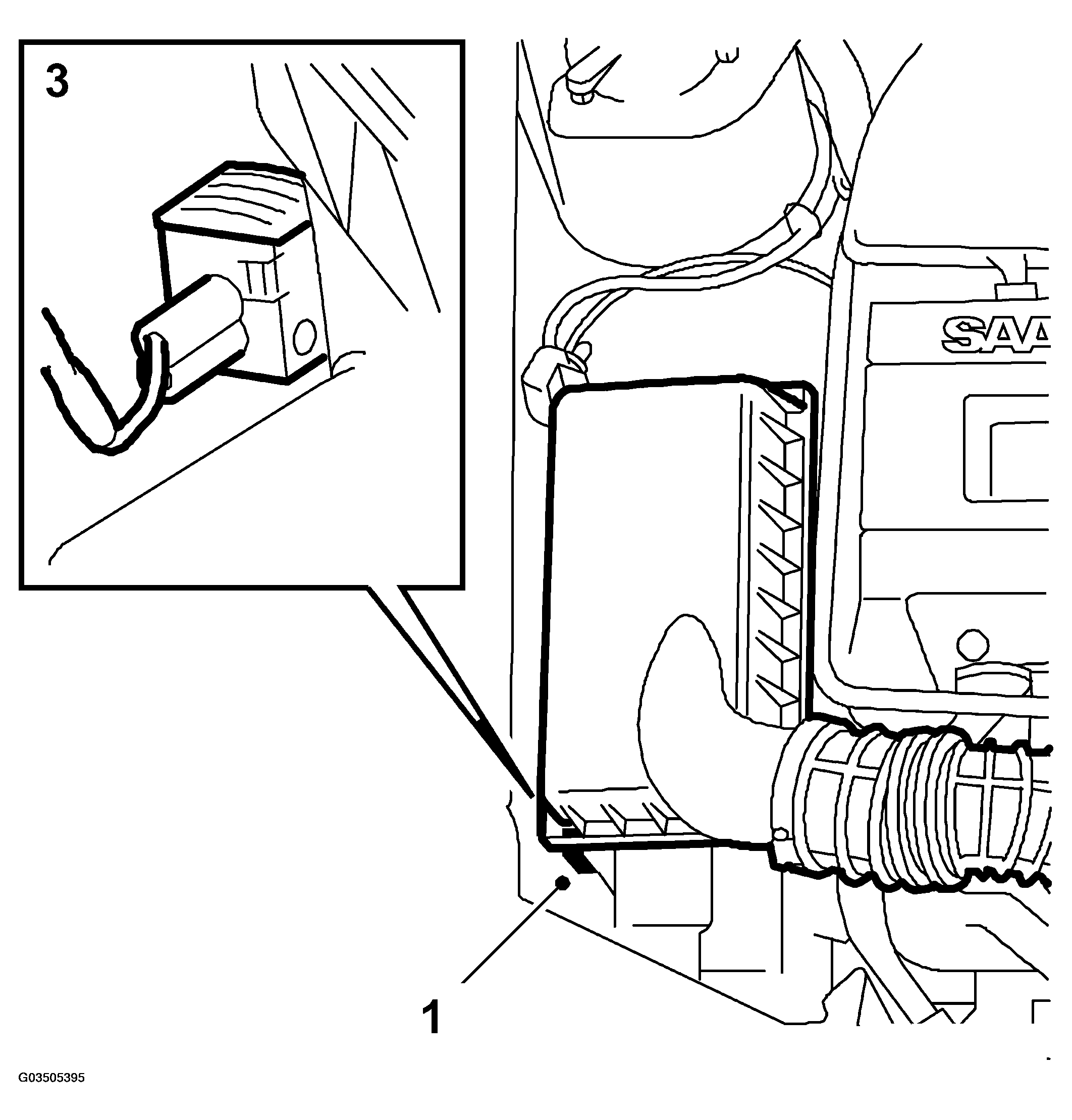

    Fig 1: Illustration For Step 1, 3
    G03505395Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the connector's cable tie.
  3. Separate the connector and snip the cable tie.
  4. Snip the cable tie by the air cleaner attachment point.
  5. Raise the car and remove the wheel.
  6. Clean the area round the wheel sensor using a soft wire brush.
  7. Undo the wheel sensor retaining bolt and remove the wheel sensor.

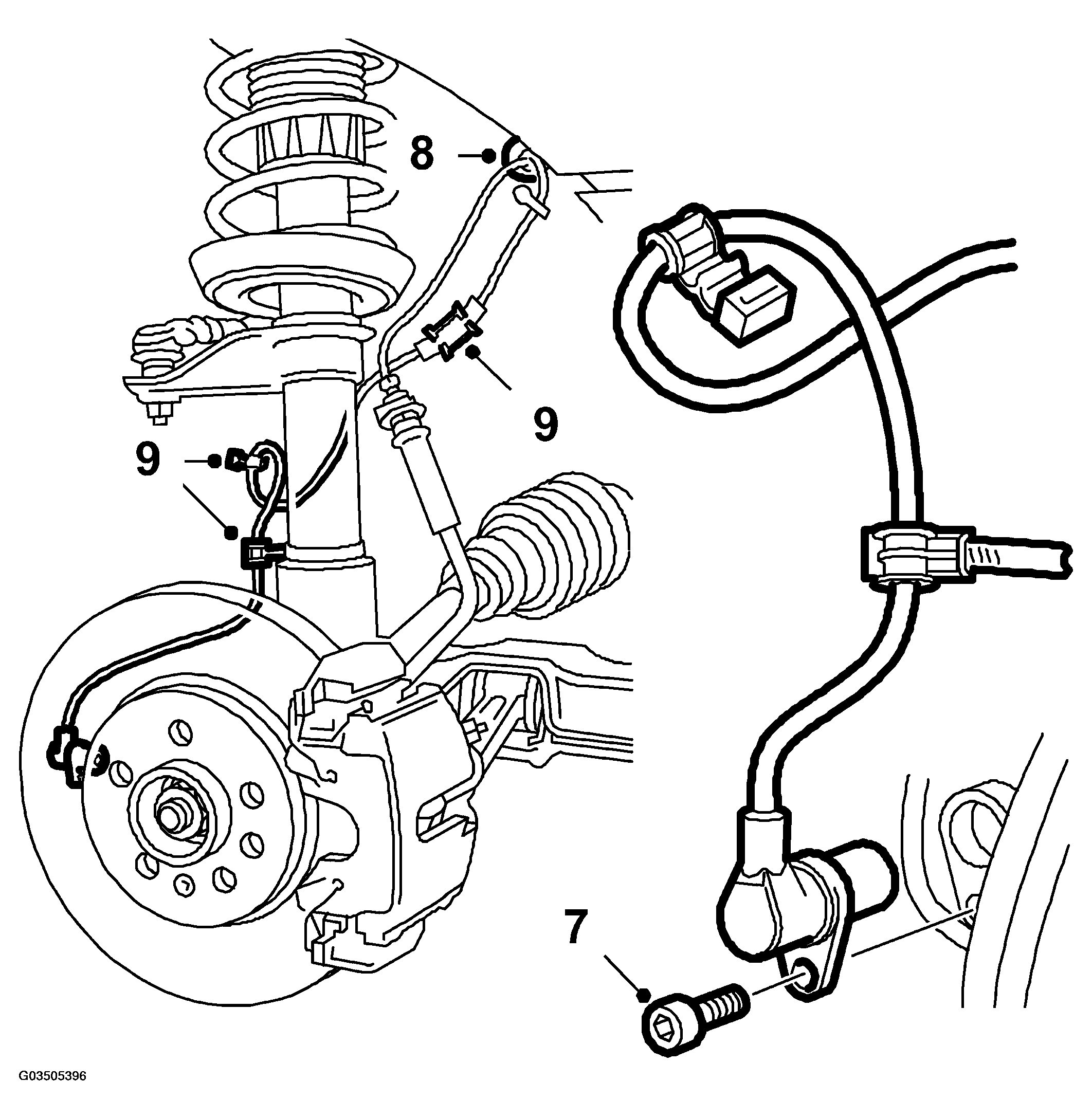

    Fig 2: Illustration For Step 7-9
    G03505396Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Remove the grommet and withdraw the lead.
  9. Detach the lead from the clips and lift out the sensor.
