Components connected:: Notes
COMPONENTS CONNECTED LIST

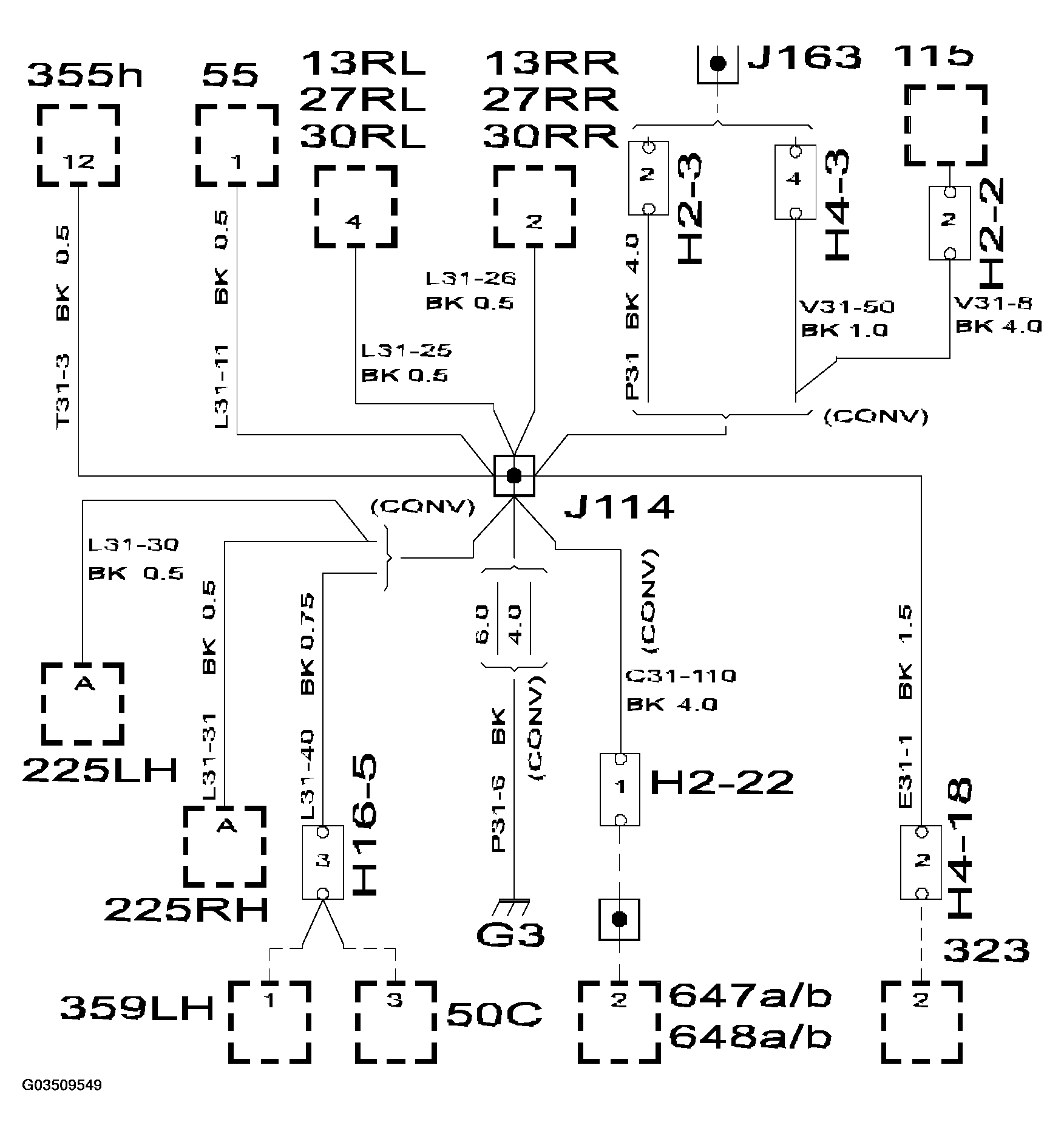

| Via crimp J113 Figure | |
| 64FR | Heating pad, LH seat (CONV) |
| 70D | Belt switch, driver (RHD) |
| 70P | Belt switch, passenger (LHD) |
| 89RH | Side direction indicators, RH |
| 357Dk | Control module, electrically operated seat with memory, driver (RHD) |
| 357P | Switch, electrically operated seat, passenger (LHD) |
| 463 | Antenna unit, immobilizer, convertible |
