Trionic T7 control module, 4-cyl (430b)

WARNING: This page is about a different variant/trim than selected.

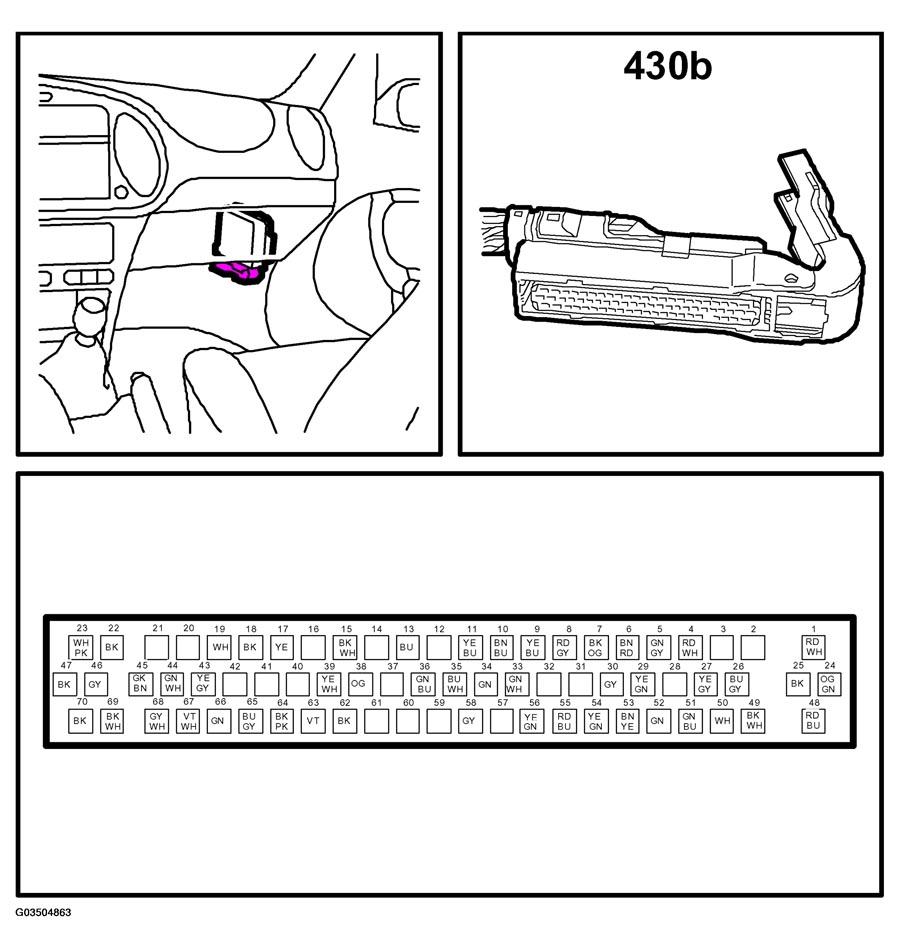

Fig 1: Identifying Trionic T7 Control Module Pinouts (4-Cyl)
G03504863Courtesy of SAAB-SCANIA OF AMERICA, INC.
