Transmission range switch 1, automatic (245)

WARNING: This page is about a different variant/trim than selected.

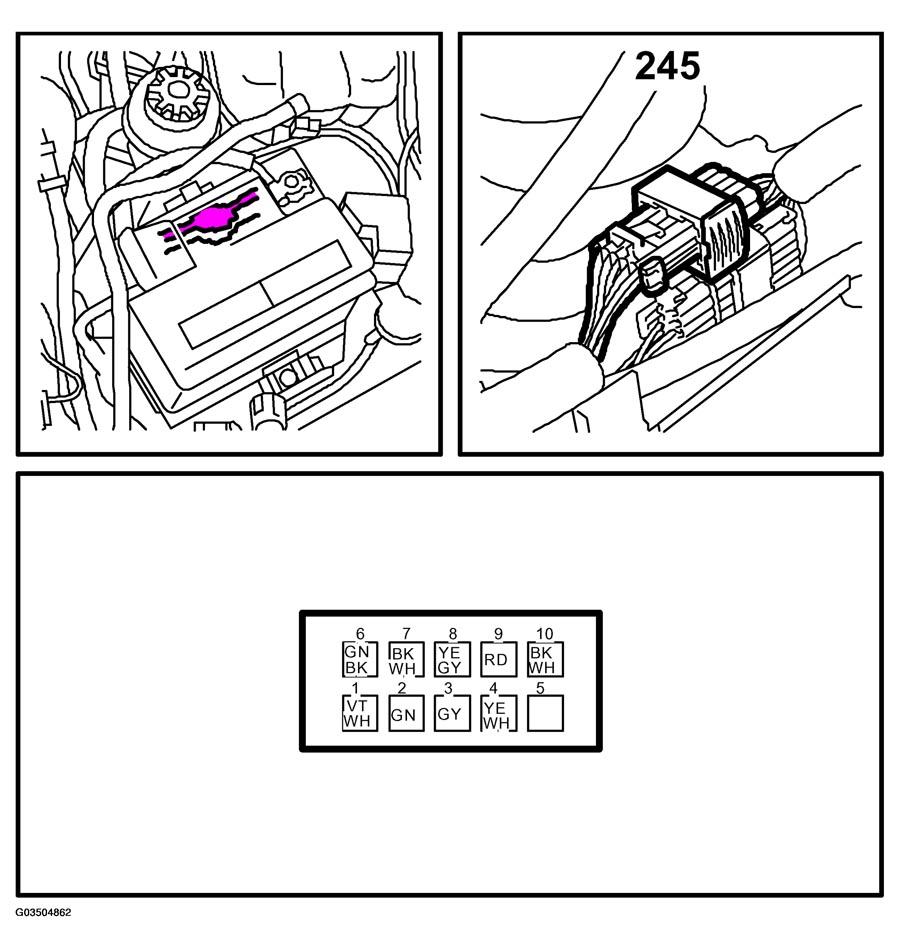

Fig 1: Identifying Transmission Range Switch 1 Pinouts (Automatic)
G03504862Courtesy of SAAB-SCANIA OF AMERICA, INC.
