To remove

WARNING: This page is about a different variant/trim than selected.
  1. Remove the gearbox, see TO REMOVE , under automatic gearbox assembly.

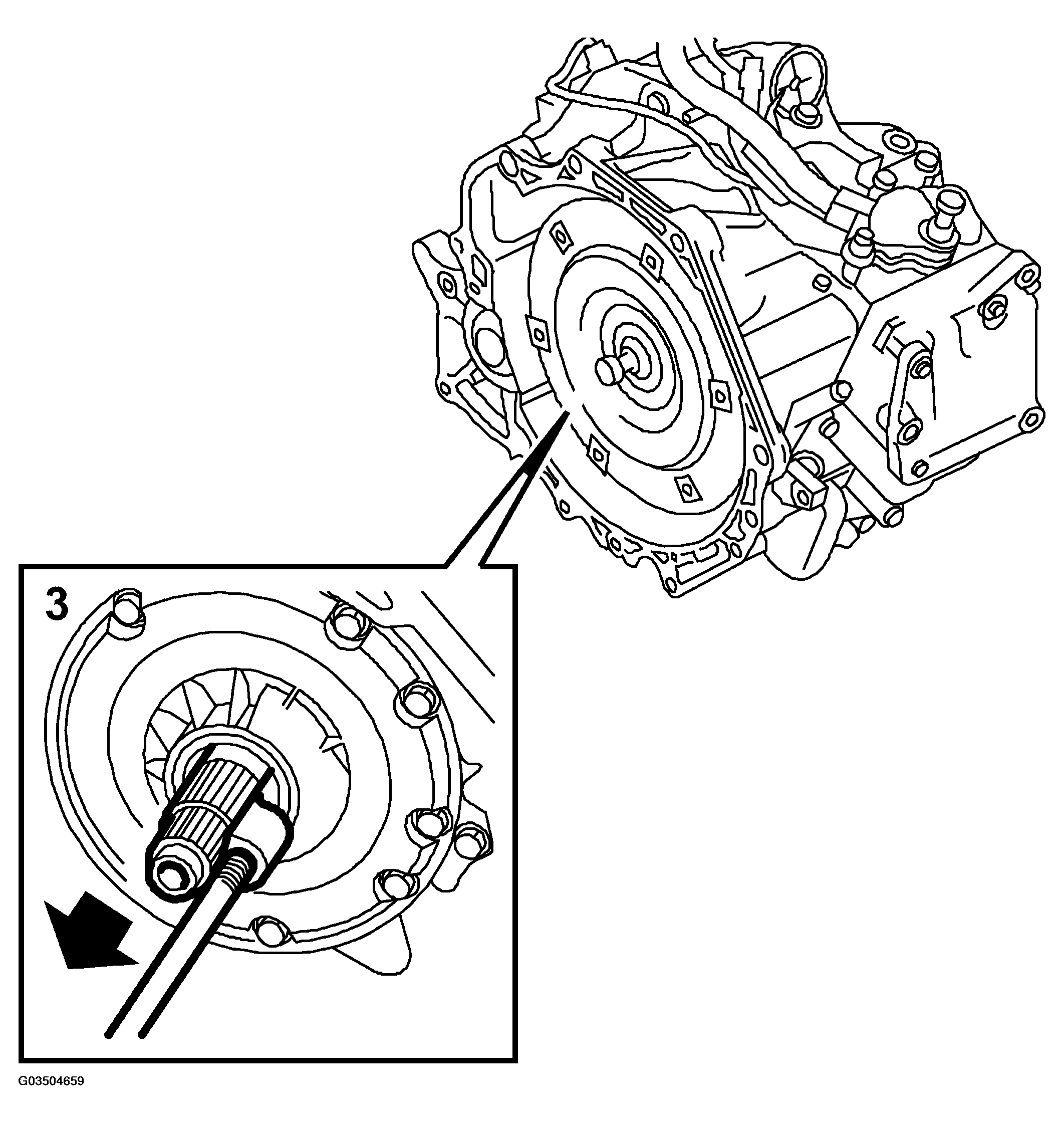

    Fig 1: Illustration For Step 3
    G03504659Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Lift out the torque converter.
  3. Insert puller 87 92 384 inside the seal and use sliding hammer 83 90 270 to loosen the seal.
