Trionic T7 engine management system, LEV/OBD II (Part 2/3): Notes

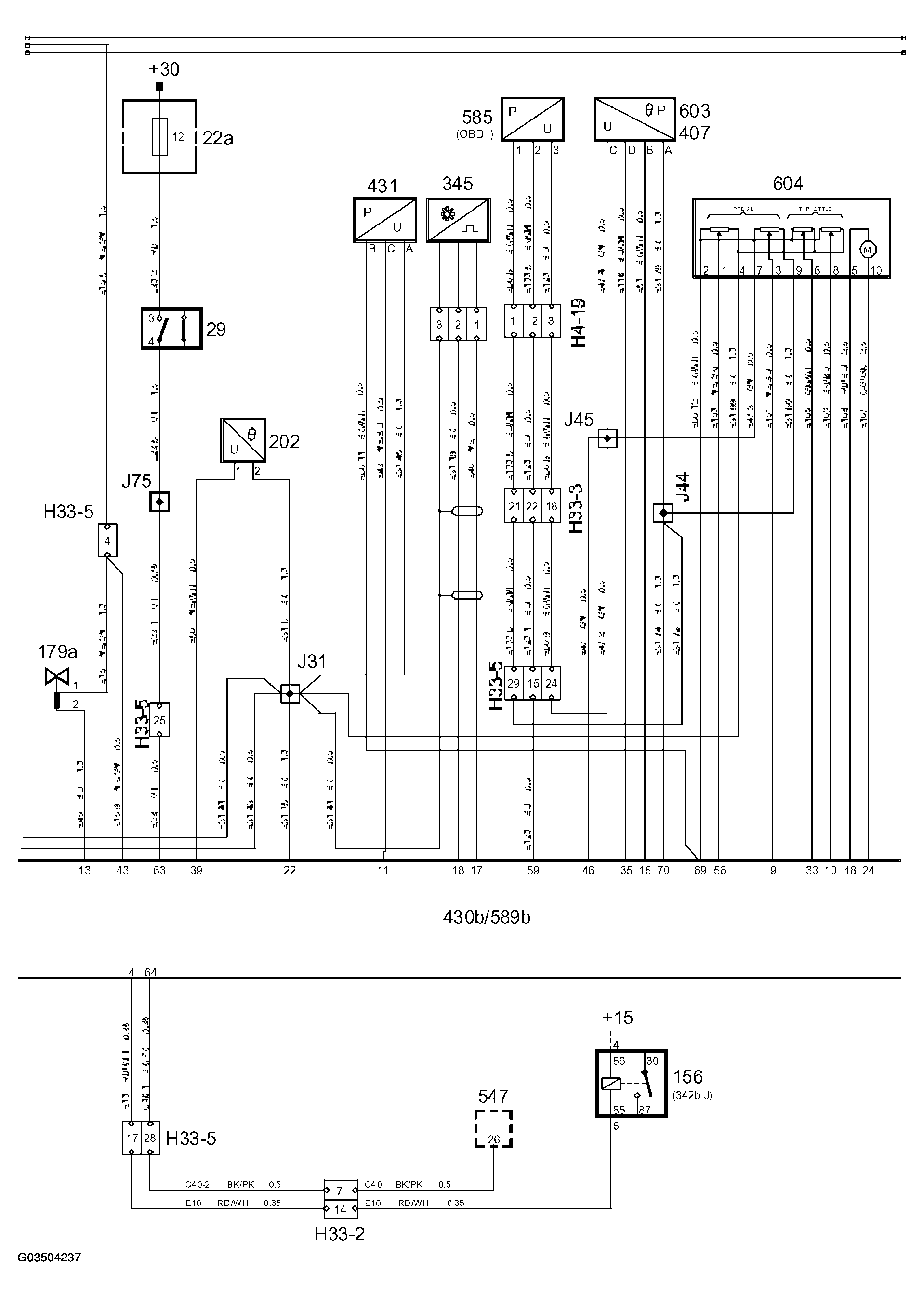

Fig 1: Component Identification Diagram - Trionic T7 Engine Management System, LEV/OBD II (Part 2/3)
G03504237Courtesy of SAAB-SCANIA OF AMERICA, INC.
