DTC P1451: EVAP Tank Pressure Sensor Performance Problem: Notes

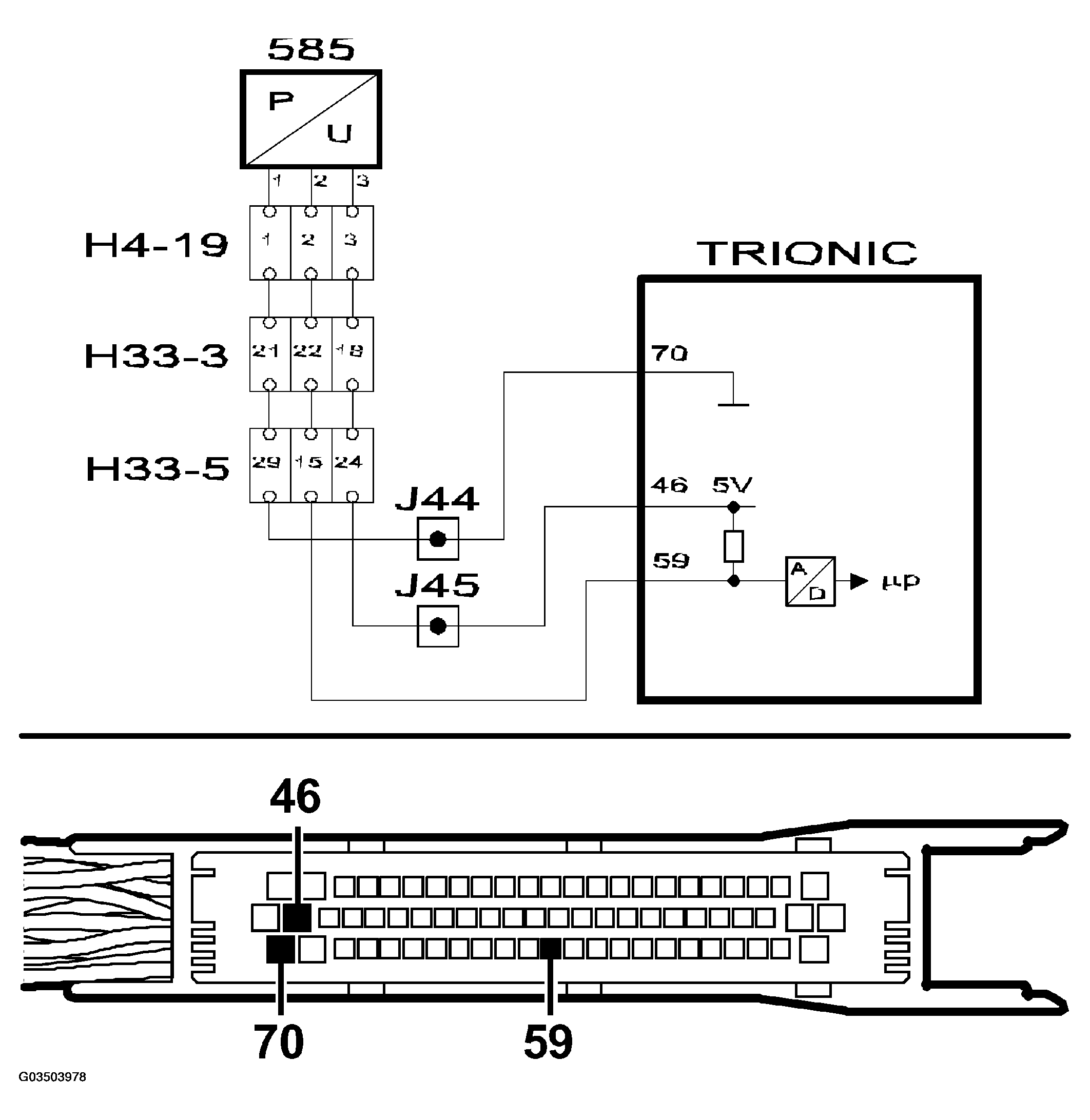

Fig 1: Identifying EVAP Tank Pressure Sensor Circuit Diagram - Performance Problem

G03503978

Courtesy of SAAB-SCANIA OF AMERICA, INC.
