DTC P1442: EVAP Small Leakage in System and malfunctioning fuel level sensor: Notes

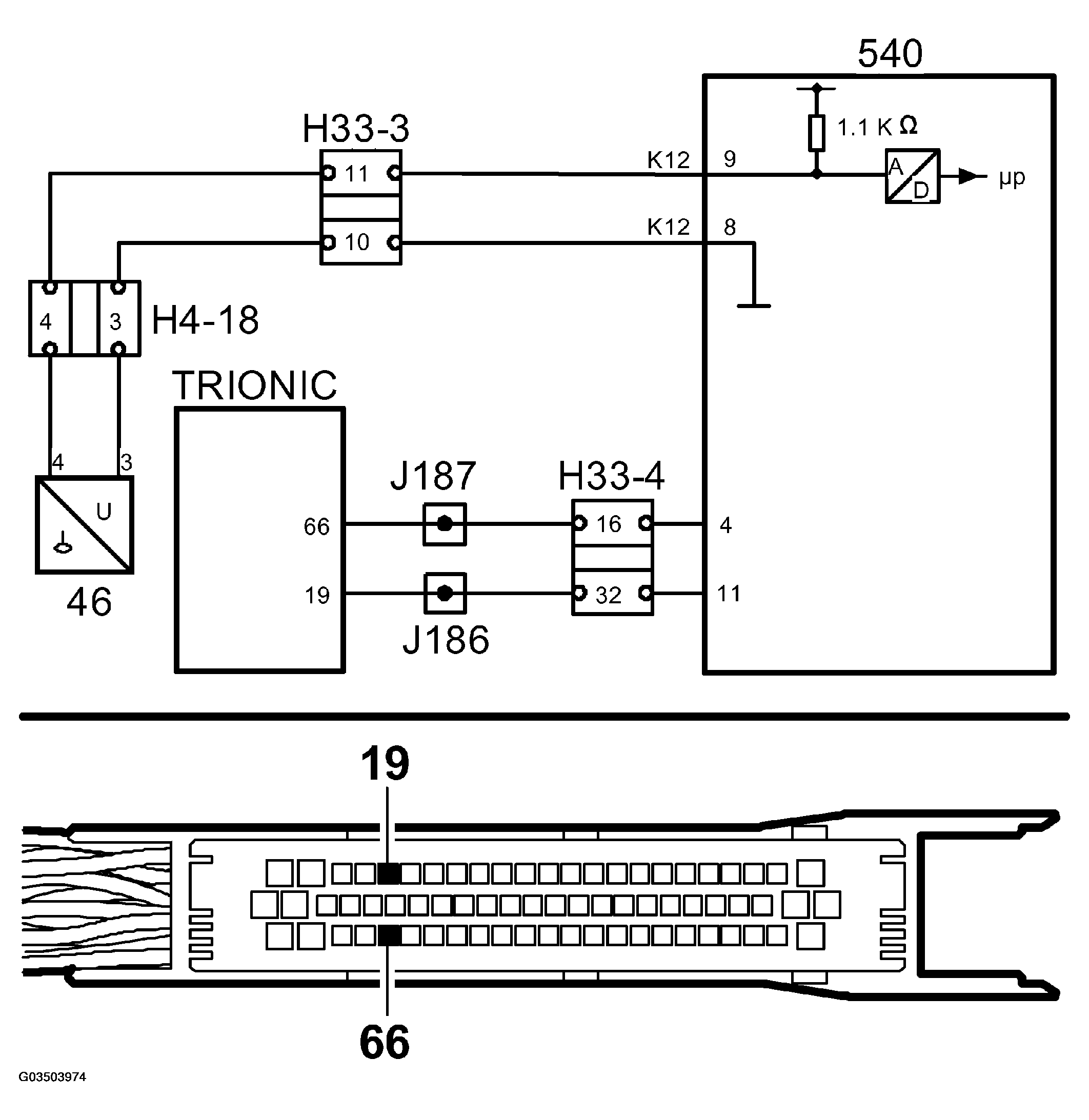

Fig 1: Identifying Fuel Level Sensor Circuit Diagram - Small Leakage In System
G03503974Courtesy of SAAB-SCANIA OF AMERICA, INC.

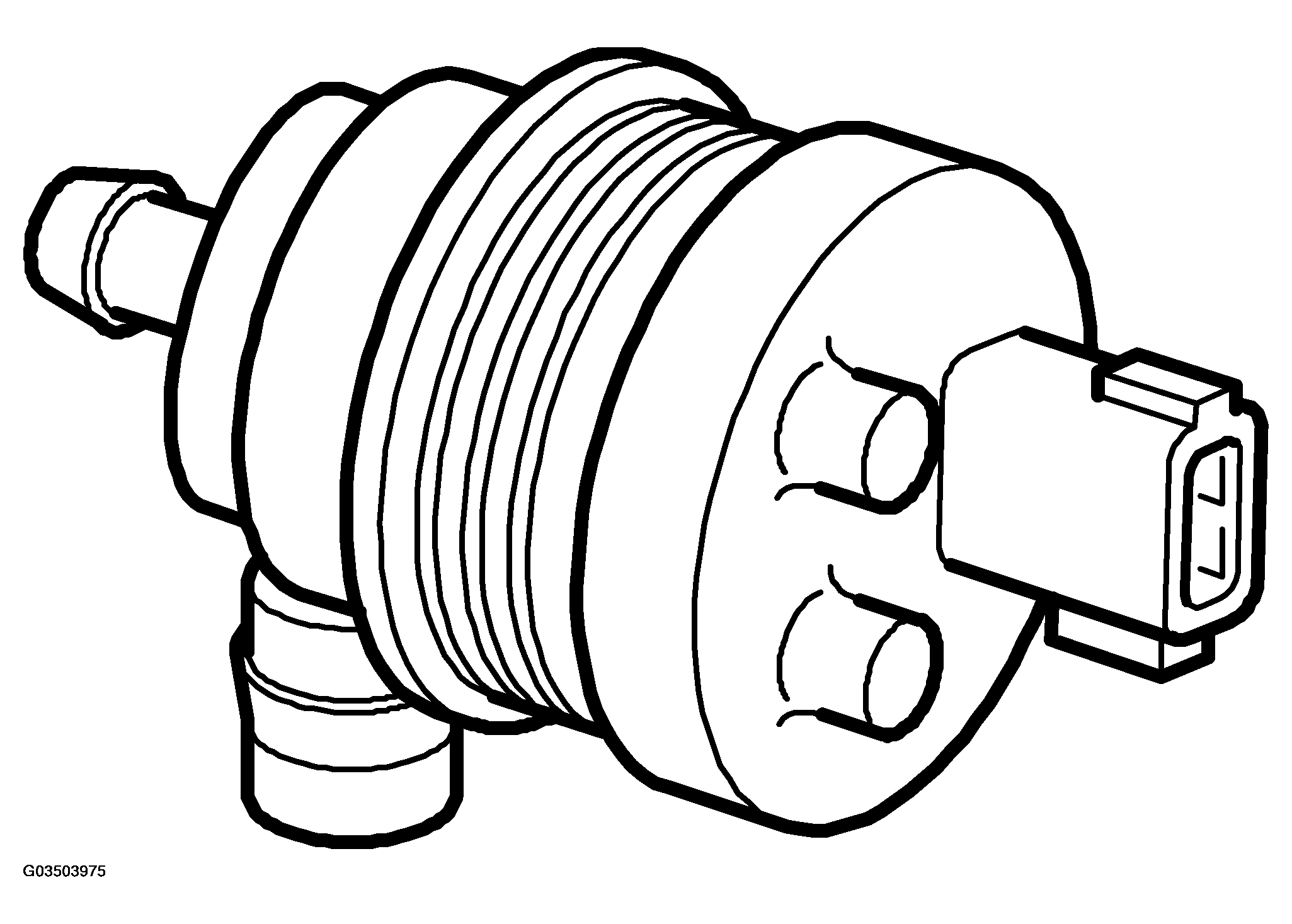

Fig 2: Identifying Fuel Level Sensor
G03503975Courtesy of SAAB-SCANIA OF AMERICA, INC.
