Home >> Saab >> 2001 >> 9-3 Base, 2D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T7 Fuel Control System >> Fault diagnosis, fault codes >> DTC P1141: O2S Heater Circuit Current too Low Sensor 2 >> Notes

DTC P1141: O2S Heater Circuit Current too Low Sensor 2: Notes

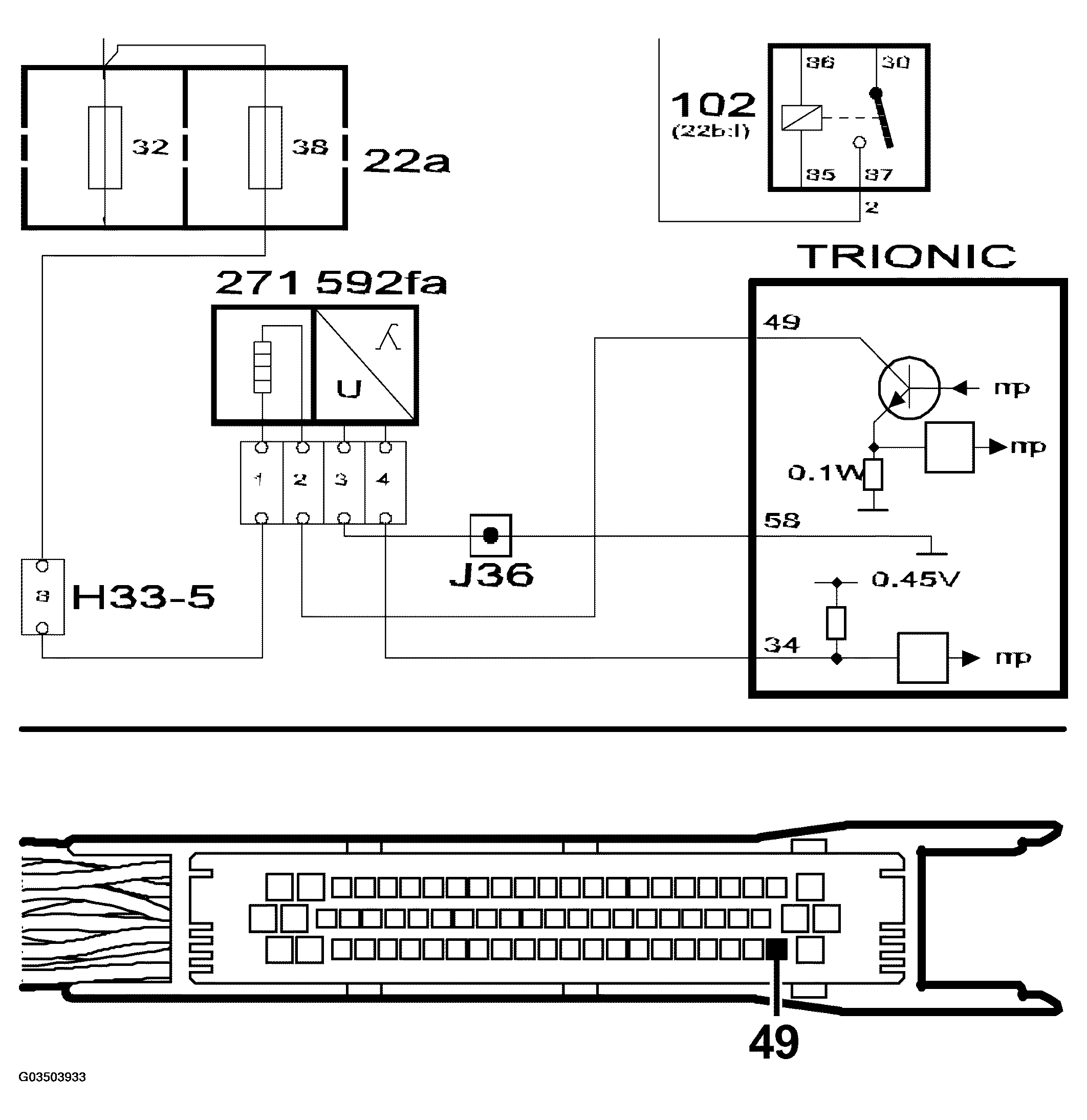

Fig 1: Identifying O2S Heater Circuit Diagram - Current Too Low - Sensor 2

G03503933

Courtesy of SAAB-SCANIA OF AMERICA, INC.
