DTC P0336: Crankshaft Position Sensor Circuit (Performance Problem)
>>
Notes
DTC P0336: Crankshaft Position Sensor Circuit (Performance Problem): Notes

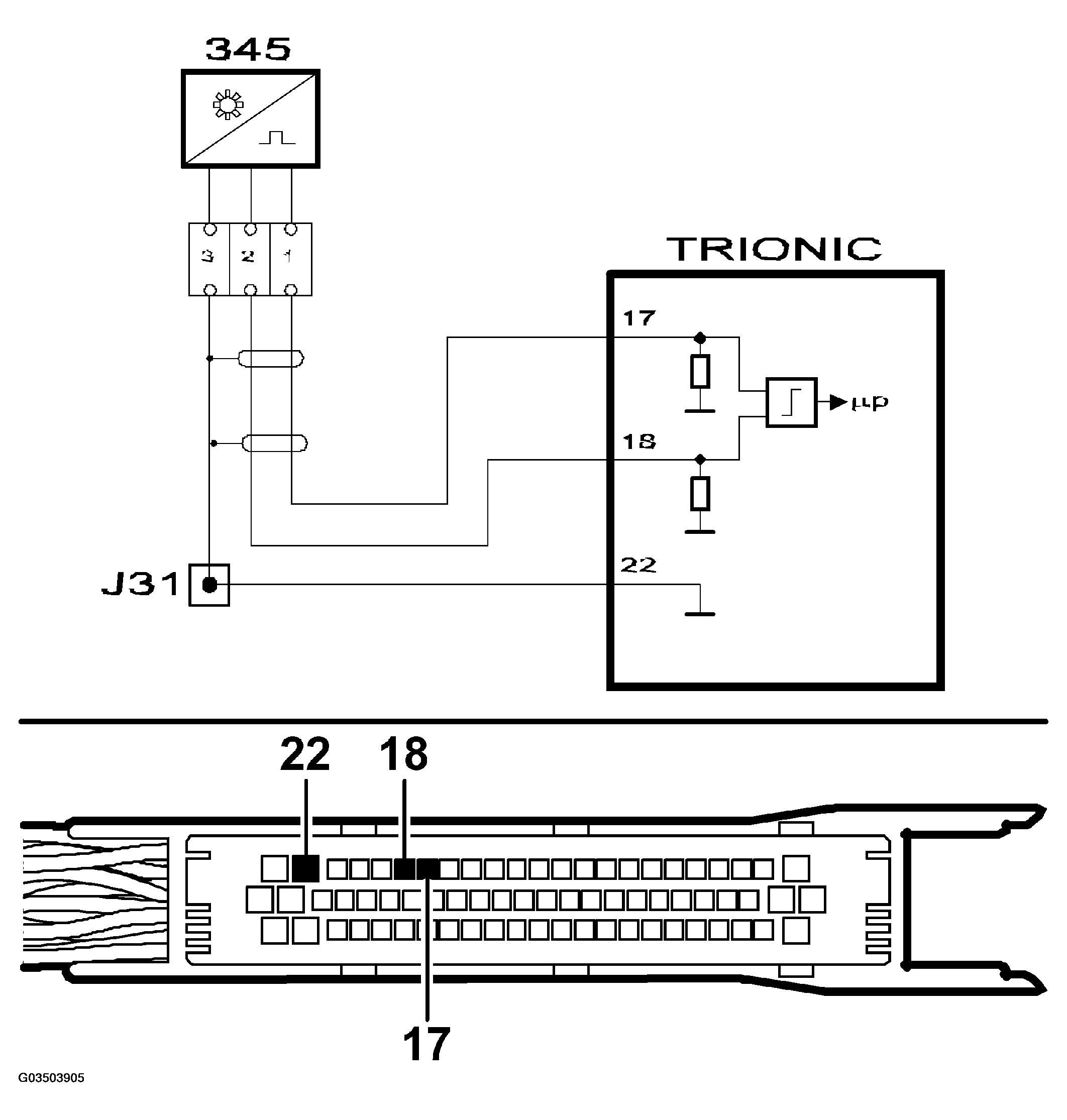

Fig 1: Identifying Crankshaft Position Sensor Circuit Diagram - Performance Problem
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
