DTC P0119: Engine Coolant Temperature Circuit (Intermittent Open/Short): Notes

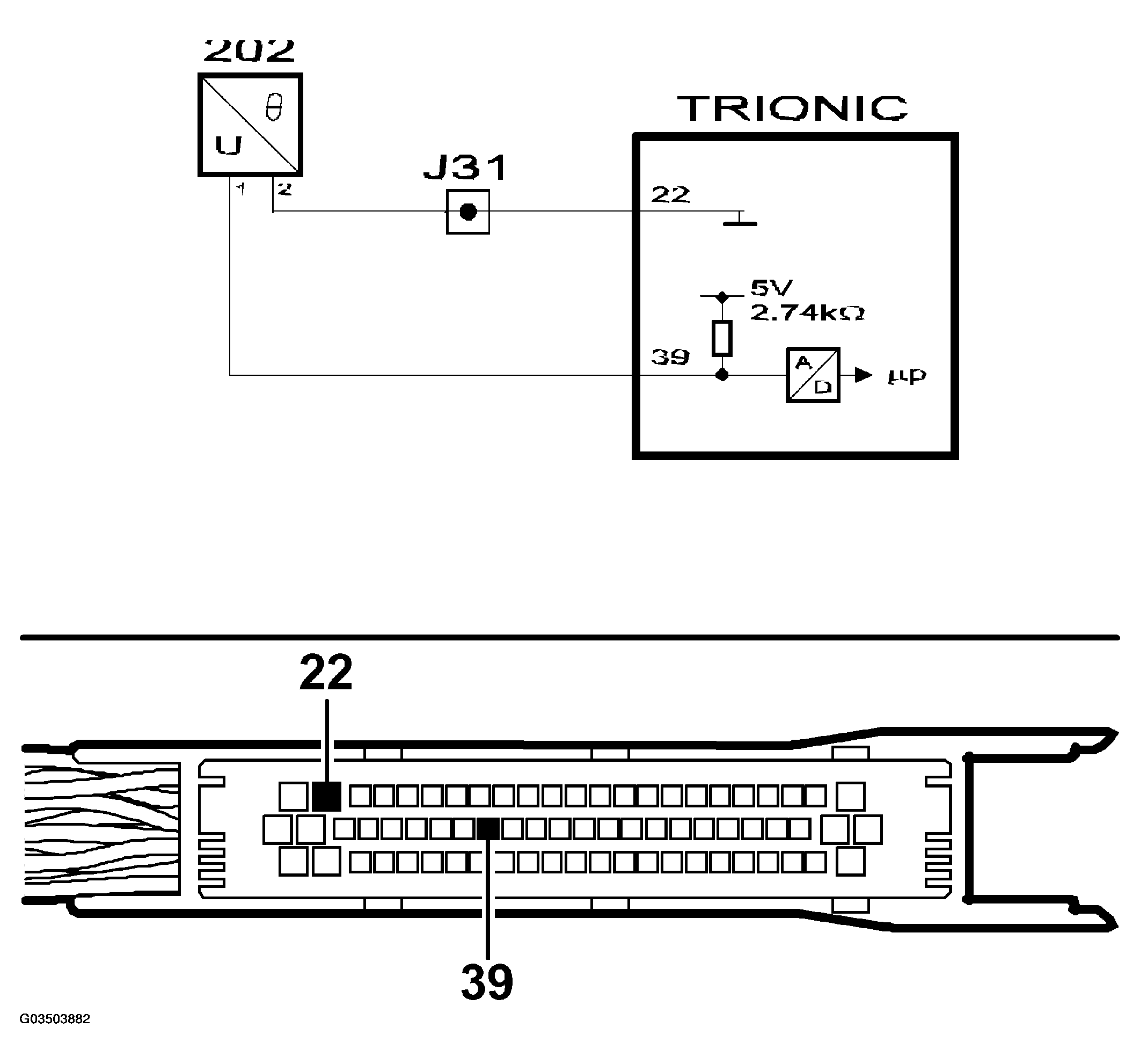

Fig 1: Identifying Engine Coolant Temperature Circuit Diagram - Intermittent Open/Short
G03503882Courtesy of SAAB-SCANIA OF AMERICA, INC.
