DTC P0107: Manifold Absolute Pressure Sensor Circuit (Open/Short to Ground): Notes

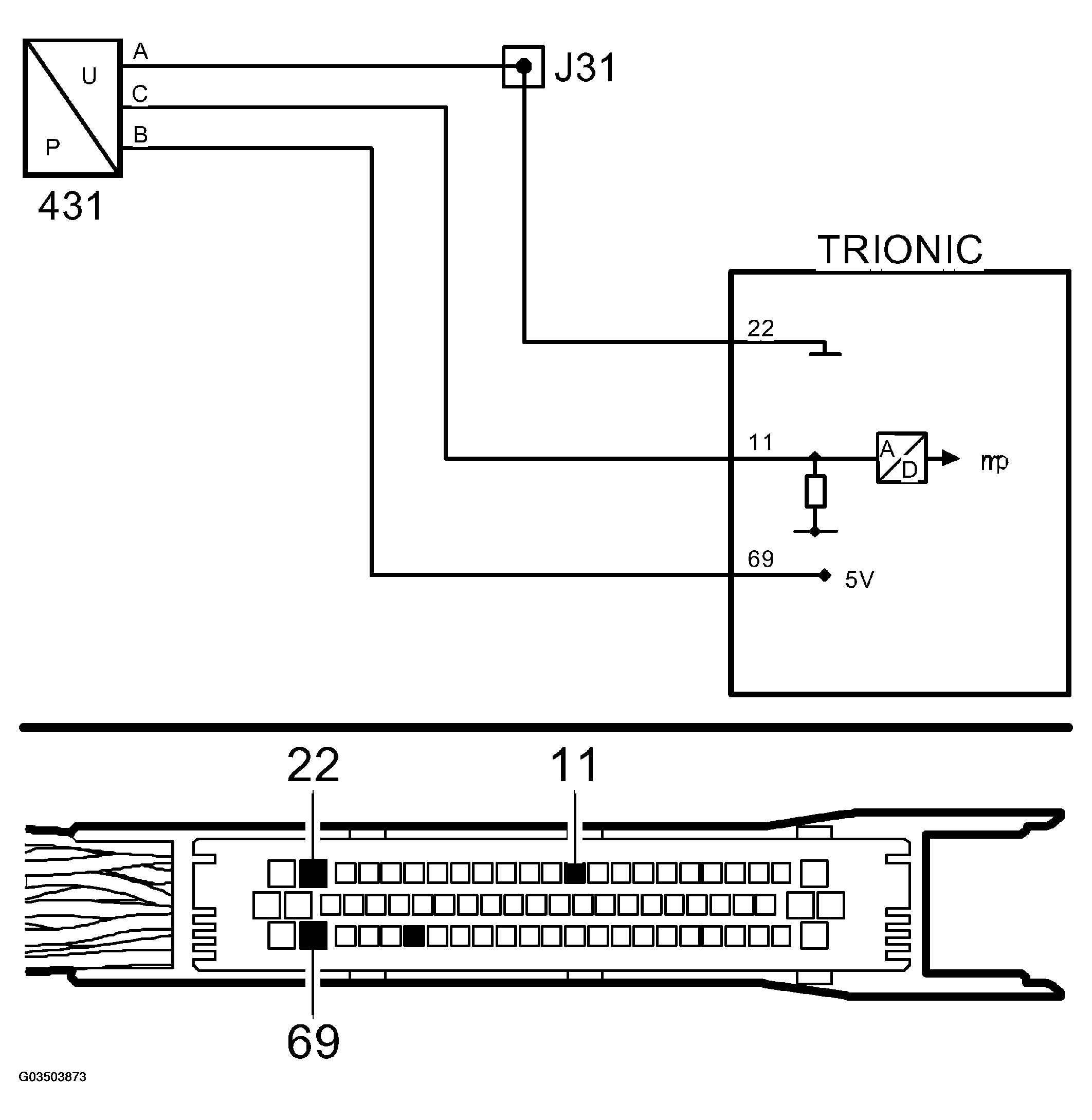

Fig 1: Identifying Manifold Absolute Pressure Sensor Circuit Diagram - Open/Short To Ground
G03503873Courtesy of SAAB-SCANIA OF AMERICA, INC.
