DTC P0106: Manifold Absolute Pressure Sensor Circuit (Performance Problem): Notes

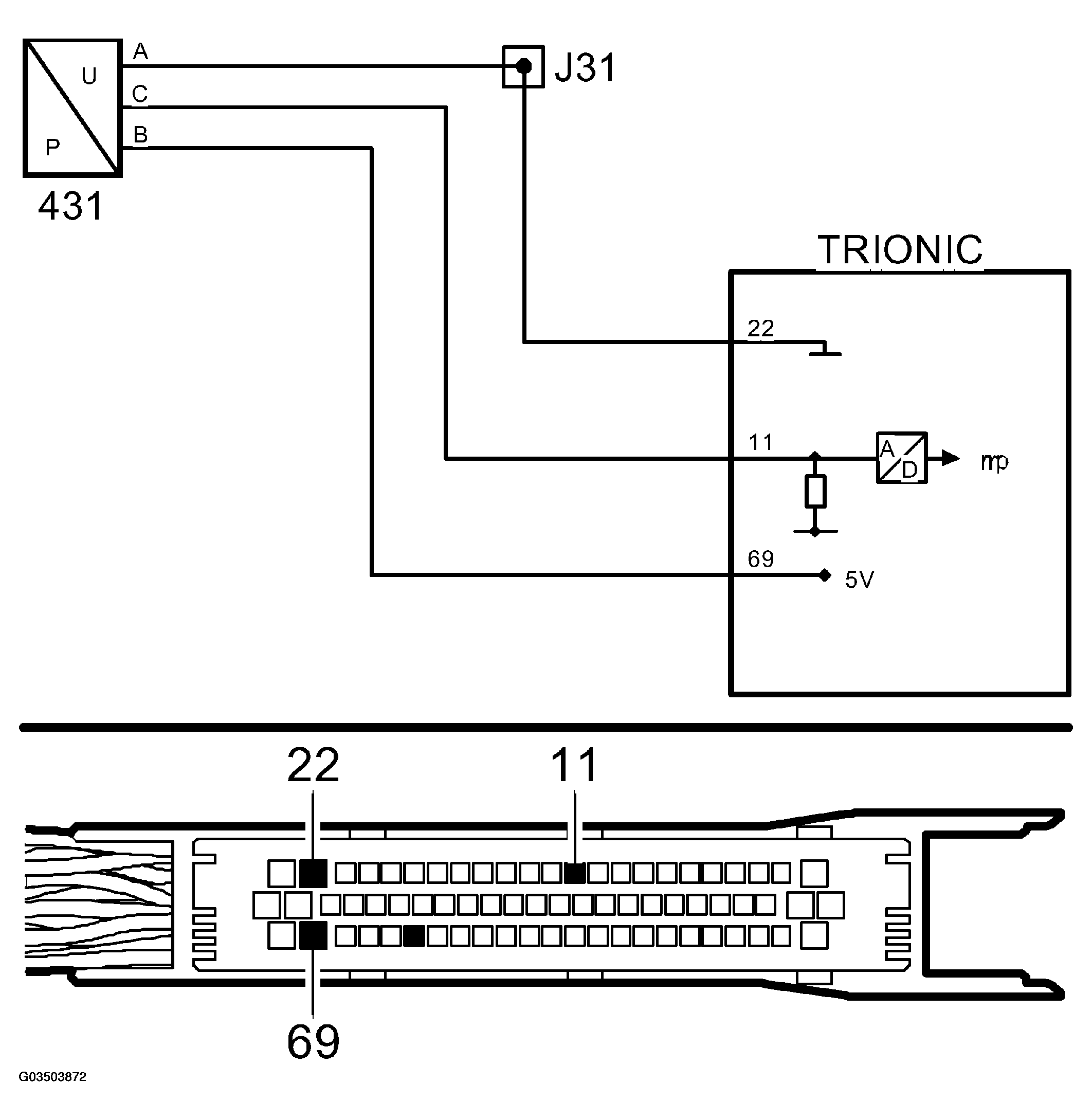

Fig 1: Identifying Manifold Absolute Pressure Sensor Circuit Diagram - Performance Problem
G03503872Courtesy of SAAB-SCANIA OF AMERICA, INC.
