Home >> Saab >> 2001 >> 9-3 Base, 2D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T7 Fuel Control System >> Fault diagnosis, fault codes >> DTC P0103: Mass Air Flow Circuit (High Input) >> Notes

DTC P0103: Mass Air Flow Circuit (High Input): Notes

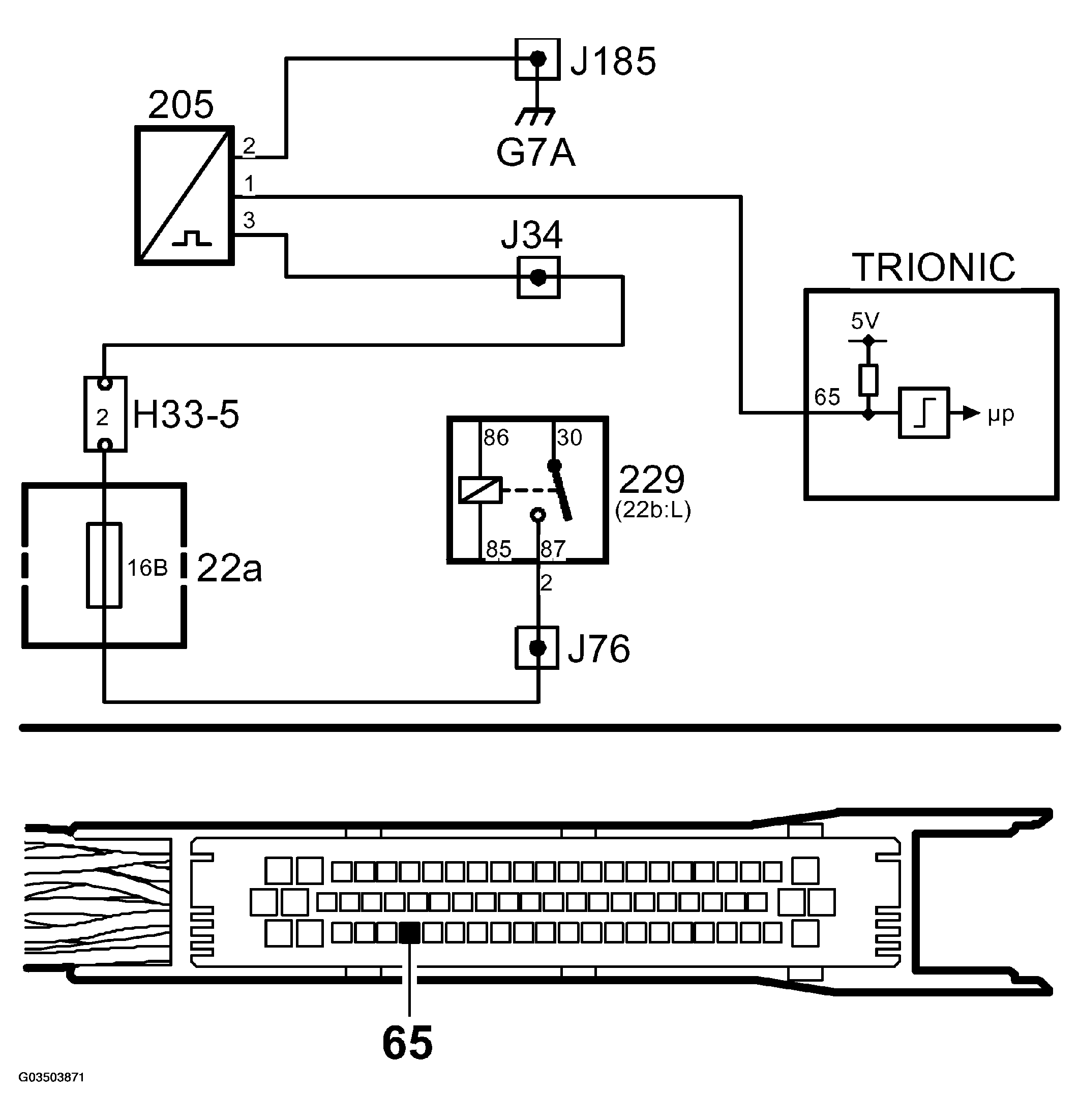

Fig 1: Identifying Mass Air Flow Circuit Diagram - High Input

G03503871

Courtesy of SAAB-SCANIA OF AMERICA, INC.
