Valve seats

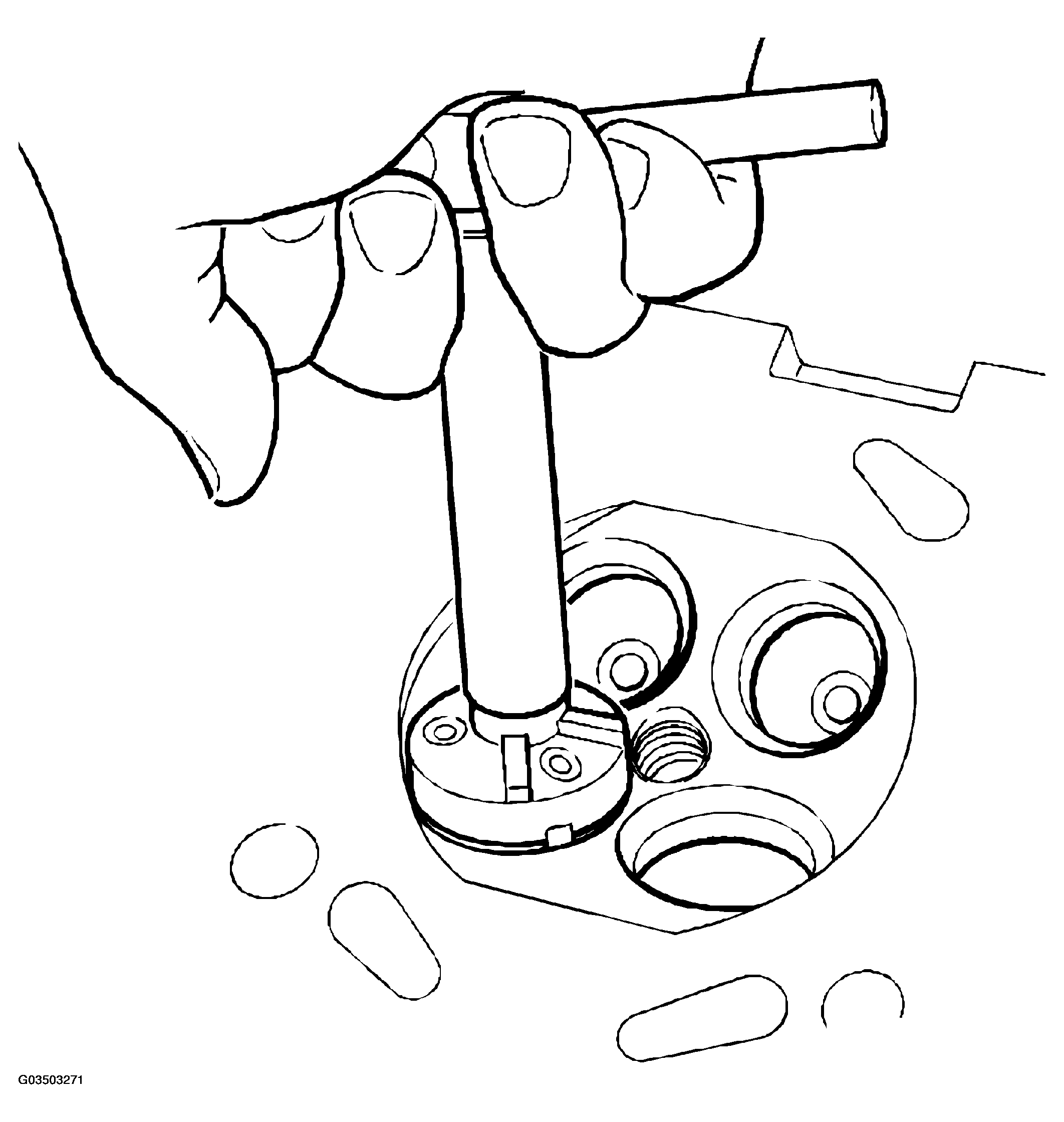

Fig 1: Seating Valve Using Valve Cutter

Use a valve cutter set with T-wrench, locating spindle part no. 83 93 928, valve seat cutters part no. 83 93 936 (60°) and part no. 78 61 040 (45°).

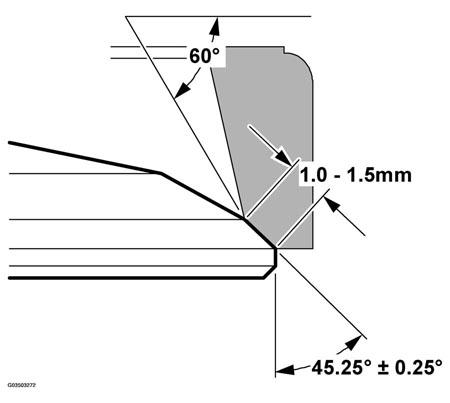

Fig 2: Identifying Valve Seating Angle, Regrinding Angle And Valve Seat Width (1 Of 2)

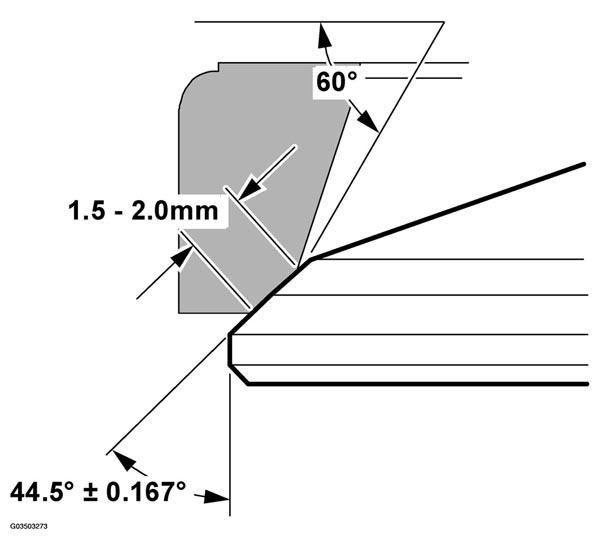

Fig 3: Identifying Valve Seating Angle, Regrinding Angle And Valve Seat Width (2 Of 2)

Valve seat angle:

Inlet and exhaust valves: 45.25° +/- 0.25

Regrinding angle:

Inlet and exhaust valves: 60 °

Valve seat width:

Intake valve: 1.0-1.5 mm

Exhaust valve: 1.5-2.0 mm
