To Fit

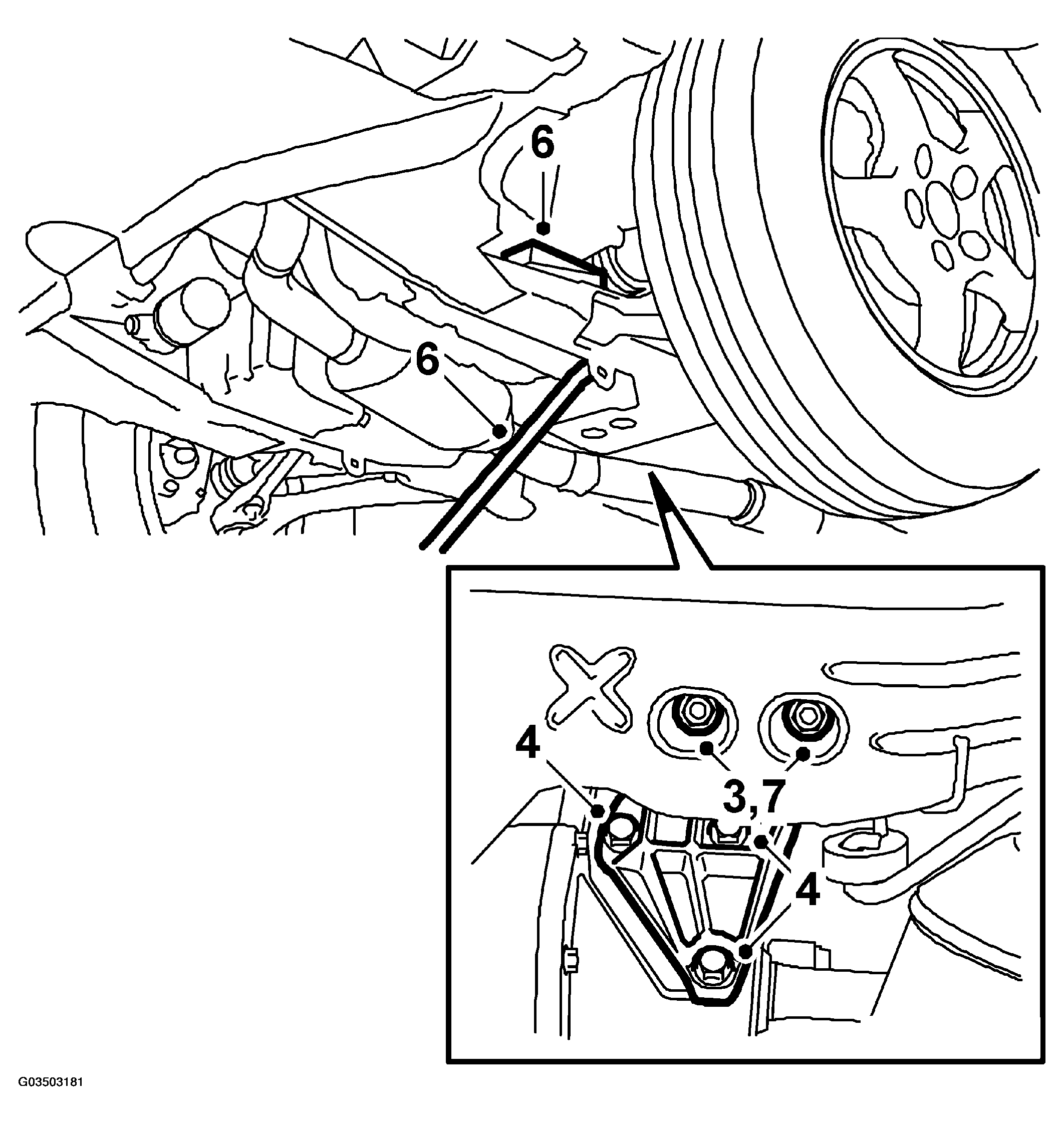

Fig 1: Illustration For Steps 3-4-6-7
G03503181
  1. Assemble the mounting pad and the engine bracket. Do not tighten the nut completely.
  2. Put the mounting pad and engine bracket in place.
  3. Fasten the pad to the subframe.
  4. Position the bolts securing the engine bracket to the gearbox.

    Lift up the power train with a crowbar, for example, while positioning.

  5. Tighten the engine bracket mountings to torque.

    Tightening torque: 84 N.m (64 lbf ft)

  6. Remove the wedges between the subframe and the oil sump. Use a crowbar to lift up the power train.
  7. Tighten the nuts on the subframe to torque.

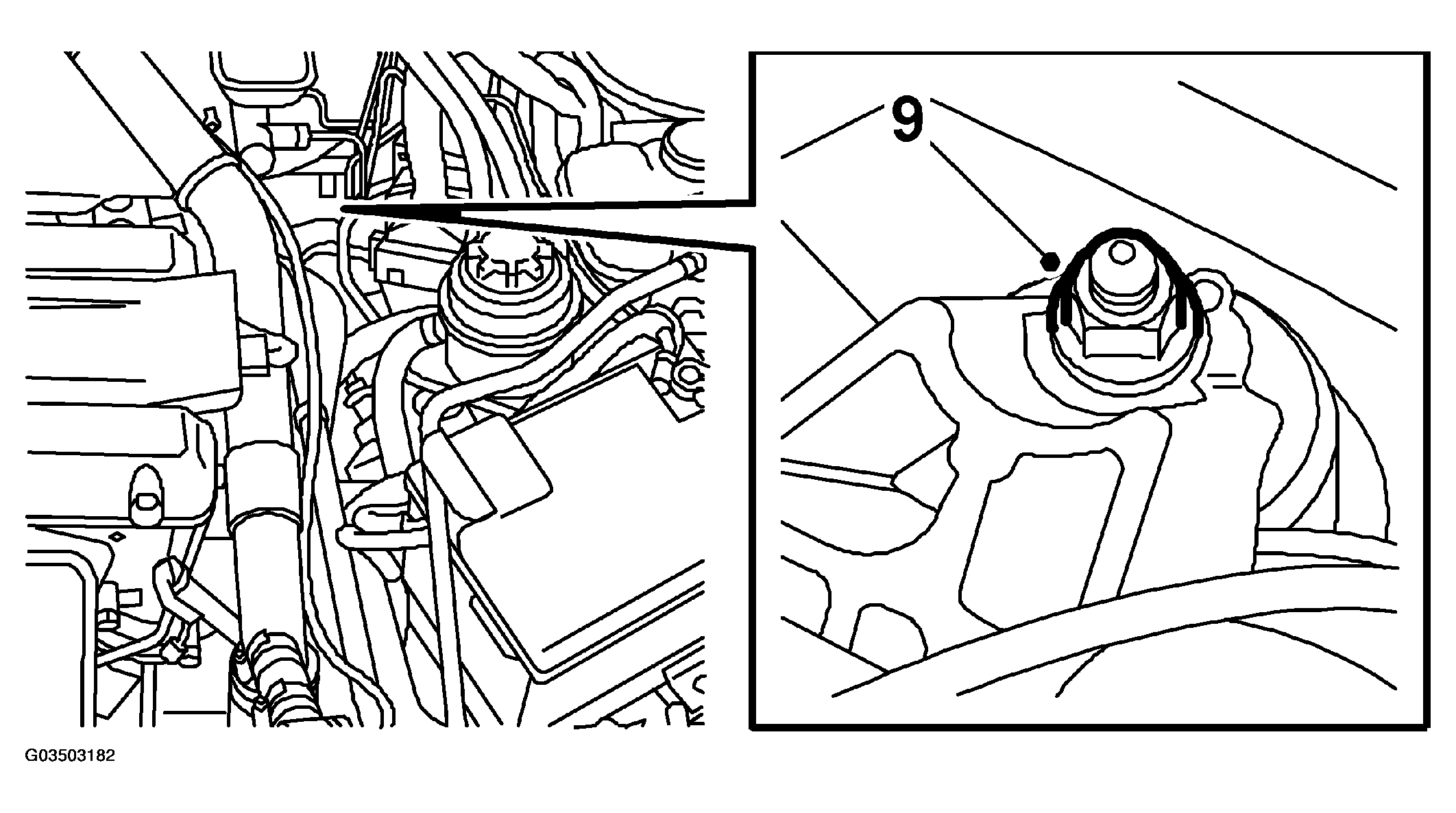

    Fig 2: Illustration For Step 9
    G03503182

    Tightening torque: 50 N.m (38 lbf ft)

  8. Lower the car to the floor.
  9. Tighten the nut securing the mounting pad to the bracket.

    Tightening torque: 47 N.m (36 lbf ft)

  10. Remove the wing protection and shut the bonnet.
